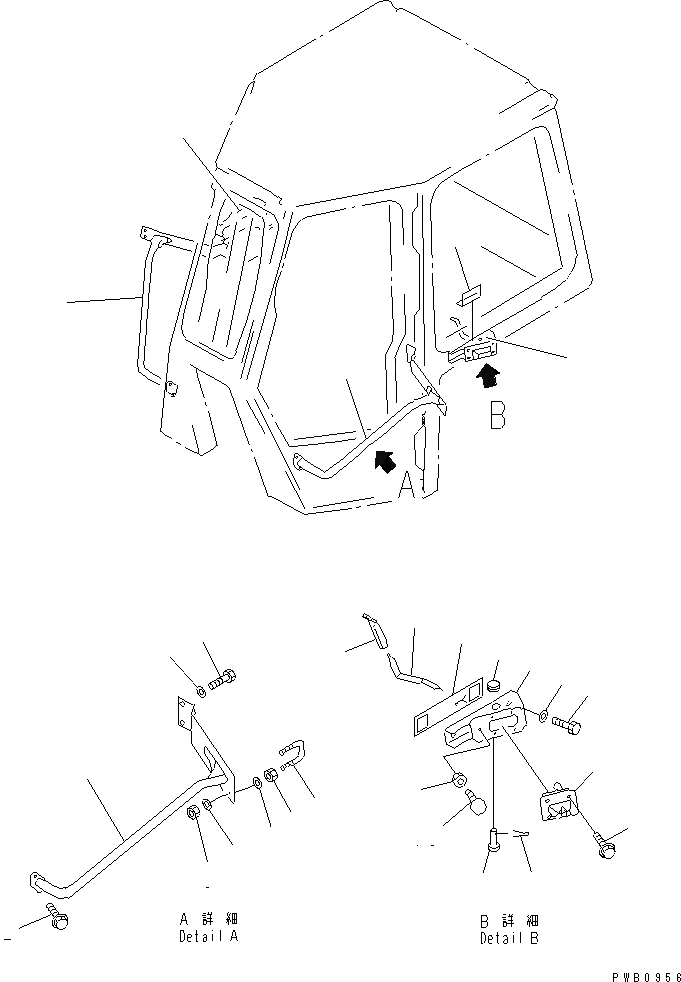

Запчасти Komatsu D65EX-12U КАБИНА (ДВЕРЬ ФИКСАТОР ОТКРЫТИЯ)(№-) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ
№
Артикул
Название
Примечание
Количество
|$14
14X-Z11-0010
CAB ASS'Y,(AM RADIO)
SN: 65001-UP
1шт.
|$15
14X-911-0080
CAB ASS'Y,(AM/FM CASSETTE STEREO)
SN: 65001-UP
1шт.
|$16
14X-Z11-0020
CAB ASS'Y,(AM RADIO, F.R. WORK LAMP)
SN: 65001-UP
1шт.
|$17
14X-Z11-0030
CAB ASS'Y,(AM/FM CST.ST., F.R.WORK LAMP)
SN: 65001-UP
1шт.
|$18
14X-Z11-0040
CAB ASS'Y,(AM RADIO, FRONT WORK LAMP)
SN: 65001-UP
1шт.
|$19
14X-Z11-0050
CAB ASS'Y,(AM/FM CT.ST, FRONT WORK LAMP)
SN: 65001-UP
1шт.
|$20
14X-Z11-0060
CAB ASS'Y,(AM RADIO, REAR WORK LAMP)
SN: 65001-UP
1шт.
|$21
14X-Z11-0070
CAB ASS'Y,(AM/FM CT.ST, REAR WORK LAMP)
SN: 65001-UP
1шт.
|$22
14X-911-0070
CAB ASS'Y,(RADIO LESS)
SN: 65001-UP
1шт.
|$23
14X-Z11-0080
CAB ASS'Y,(RADIO LESS, F.R. WORK LAMP)
SN: 65001-UP
1шт.
|$24
14X-Z11-0090
CAB ASS'Y,(RADIO LESS, FRONT WORK LAMP)
SN: 65001-UP
1шт.
|$25
14X-Z11-0100
CAB ASS'Y,(RADIO LESS, REAR WORK LAMP)
SN: 65001-UP
1шт.
|$26
14X-911-0060
CAB ASS'Y,(FOR RADIO LESS)(EXCEPT JAPAN)
SN: 65001-UP
1шт.
|$27
14X-911-0730
CAB ASS'Y,(FOR TRIMMING)
SN: 65001-UP
1шт.
|$$15
THESE ASSEMBLY CONSIST OF SOME FIGS. BE CAREFUL WHEN ORDERING THE PARTS.
-1шт.
1
14X-911-1812
SUPPORT,L.H.
SN: 65001-UP
1шт.
1
14X-911-1822
SUPPORT,R.H.
SN: 65001-UP
1шт.
2
20Y-54-14360
BOLT
SN: 65001-UP
4шт.
5
14X-911-1921
STRIKER
SN: 65001-UP
2шт.
8
14X-911-1832
LATCH
SN: 65001-UP
2шт.
9
01435-30820
BOLT
SN: 65001-UP
8шт.
10
14X-911-1540
KNOB
SN: 65001-UP
2шт.
|$45
14X-911-1510
BRACKET ASS'Y,L.H.
SN: 65001-UP
1шт.
|$46
14X-911-1520
BRACKET ASS'Y,R.H.
SN: 65001-UP
1шт.
11
14X-911-1911
BRACKET
SN: 65001-UP
1шт.
12
14X-911-1610
LEVER,L.H.
SN: 65001-UP
1шт.
12
14X-911-1620
LEVER,R.H.
SN: 65001-UP
1шт.
13
14X-911-1990
SEAT
SN: 65001-UP
1шт.
21
14X-911-1932
SEAL
SN: 65001-UP
2шт.
