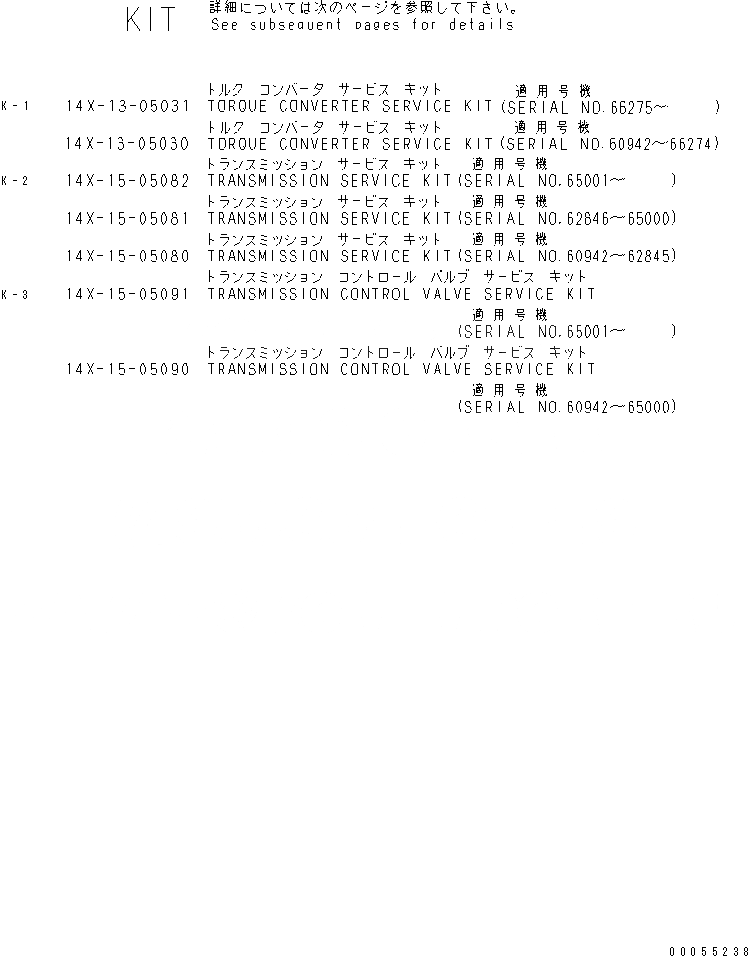

1
14X-13-05031
SERVICE KIT,TORQUE CONVERTER
SN: 66275-UP
1шт.
1
14X-13-05030
SERVICE KIT,TORQUE CONVERTER
SN: 60942-66274
1шт.
1
07000-72070
O-RING,(F2310-54A0 -11 )
SN: 60942-UP
1шт.
1
07000-72090
O-RING,(F2310-55A0 -4 )
SN: 60942-UP
1шт.
1
07000-72100
O-RING,(F2310-55A0 -10 )
SN: 60942-UP
1шт.
1
07000-72110
O-RING,(F2310-55A0 -9 )
SN: 60942-UP
1шт.
1
07000-72115
O-RING,(F2310-54A0 -26 )
SN: 60942-UP
1шт.
1
07000-73030
O-RING,(F2310-52A0 -7 )
SN: 60942-UP
2шт.
1
07000-73032
O-RING,(F2310-52A0 -8 )
SN: 60942-UP
2шт.
1
07000-73045
O-RING,(F2310-55A0 -18 )
SN: 60942-UP
2шт.
1
07000-75055
O-RING,(F2310-52A0 -25 )
SN: 60942-UP
1шт.
1
07000-75160
O-RING,(F2310-52A0 -33 )
SN: 60942-UP
1шт.
1
07000-75210
O-RING,(F2310-54A0 -18 )
SN: 60942-UP
1шт.
1
07000-75260
O-RING,(F2310-54A0 -22 )
SN: 60942-UP
1шт.
1
07005-01212
SEAL, WASHER,(F2310-52A0 -12 )
SN: 60942-UP
7шт.
1
07012-50110
SEAL,(F2310-52A0 -32 )
SN: 66275-UP
1шт.
1
07012-10110
SEAL,(F2310-52A0 -32 )
SN: 60942-66274
1шт.
1
07018-31054
RING,(F2310-51A0 -7 )
SN: 60942-UP
1шт.
2
14X-15-05082
SERVICE KIT,TRANSMISSION
SN: 65001-UP
1шт.
2
14X-15-05081
SERVICE KIT,TRANSMISSION
SN: 62846-65000
1шт.
2
14X-15-05080
SERVICE KIT,TRANSMISSION
SN: 60942-62845
1шт.
2
07000-02015
O-RING,(F2320-60A0 -9 )
SN: 60942-UP
1шт.
2
07000-02015
O-RING,(F2320-60A0 -31 )
SN: 60942-UP
1шт.
2
07000-72020
O-RING,(F2320-51A0 -18 )
SN: 60942-65000
1шт.
2
07000-72020
O-RING,(F2320-52A0A-5 )
SN: 65001-UP
2шт.
2
07000-72020
O-RING,(F2320-61A0A-12 )
SN: 60942-UP
1шт.
2
07000-73022
O-RING,(F2320-55A0A-9 )
SN: 60942-UP
1шт.
2
07000-73022
O-RING,(F2320-55A0A-17 )
SN: 60942-UP
2шт.
2
07000-73022
O-RING,(F2320-55A0A-19 )
SN: 60942-UP
1шт.
2
07000-73025
O-RING,(F2320-55A0A-10 )
SN: 60942-UP
1шт.
2
07000-73025
O-RING,(F2320-55A0A-20 )
SN: 60942-UP
1шт.
2
07000-73028
O-RING,(F2320-55A0A-11 )
SN: 60942-UP
1шт.
2
07000-73030
O-RING,(F2320-52A0 -23 )
SN: 60942-65000
4шт.
2
07000-73030
O-RING,(F2320-52A0A-23 )
SN: 65001-UP
3шт.
2
07000-73035
O-RING,(F2320-52A0A-24 )
SN: 65001-UP
1шт.
2
07000-73042
O-RING,(F2320-62A0A-3 )
SN: 60942-UP
1шт.
2
07002-02434
O-RING,(F2320-55A0 -6 )
SN: 60942-65000
1шт.
2
07002-12434
O-RING,(F2320-55A0A-5 )
SN: 65001-UP
1шт.
2
07002-32434
O-RING,(F2320-62A0 -7 )
SN: 60942-65000
1шт.
2
103-15-12820
RING,(F2320-52A0A-28 )
SN: 65001-UP
1шт.
2
103-15-12820
RING,(F2320-51A0A-11 )
SN: 65001-UP
1шт.
2
113-15-11641
GASKET,(F2320-61A0A-11 )
SN: 60942-UP
2шт.
2
113-15-12870
RING,(F2320-51A0 -15 )
SN: 60942-65000
1шт.
2
113-15-12870
RING,(F2320-51A0A-13 )
SN: 65001-UP
1шт.
2
113-15-12870
RING,(F2320-51A0A-18 )
SN: 65001-UP
1шт.
2
113-15-12870
RING,(F2320-52A0 -3 )
SN: 60942-65000
1шт.
2
113-15-12870
RING,(F2320-52A0 -29 )
SN: 60942-65000
1шт.
2
113-15-12870
RING,(F2320-52A0A-33 )
SN: 65001-UP
1шт.
2
124-15-41910
RING,(F2320-51A0A-16 )
SN: 65001-UP
1шт.
2
124-15-41910
RING,(F2320-52A0A-2 )
SN: 65001-UP
1шт.
2
124-15-41910
RING,(F2320-52A0A-31 )
SN: 65001-UP
1шт.
2
124-15-41920
RING,(F2320-52A0A-29 )
SN: 65001-UP
1шт.
2
14X-15-15910
GASKET,(F2320-61A0A-1 )
SN: 60942-UP
1шт.
2
14X-15-19210
SEAL RING,(F2320-52A0-38 )
SN: 62846-65000
1шт.
2
14X-15-19210
SEAL RING,(F2320-52A0-8 )
SN: 62846-65000
1шт.
2
14X-15-19210
SEAL RING,(F2320-54A0-12 )
SN: 62846-65000
1шт.
2
14X-15-19220
SEAL RING,(F2320-53A0-21 )
SN: 62846-65000
1шт.
2
14X-15-19220
SEAL RING,(F2320-51A0-3 )
SN: 60942-65000
1шт.
2
14X-15-29210
RING,(F2320-54A0A-6 )
SN: 65001-UP
1шт.
2
14X-15-29220
SEAL RING,(F2320-52A0A-17 )
SN: 65001-UP
1шт.
2
14X-15-29220
SEAL RING,(F2320-54A0A-13 )
SN: 65001-UP
1шт.
2
14X-15-29230
SEAL RING,(F2320-52A0A-40 )
SN: 65001-UP
1шт.
2
14X-15-29230
SEAL RING,(F2320-52A0A-45 )
SN: 65001-UP
1шт.
2
144-15-21260
SHIM, 0.2MM,(F2320-56A0 -3- )
SN: 60942-65000
6шт.
2
144-15-21260
SHIM, 0.2MM,(F2320-56A0 -7- )
SN: 60942-65000
2шт.
2
144-15-21270
SHIM, 1.0MM,(F2320-56A0 -3- )
SN: 60942-65000
2шт.
2
144-15-21280
SHIM, 0.3MM,(F2320-56A0 -3 )
SN: 60942-65000
4шт.
2
144-15-21280
SHIM, 0.3MM,(F2320-56A0 -7 )
SN: 60942-65000
2шт.
2
144-15-22881
RING,(F2320-51A0 -6 )
SN: 60942-65000
1шт.
2
144-15-22881
RING,(F2320-51A0 -17 )
SN: 60942-65000
1шт.
2
144-15-29110
SEAL,(F2320-60A0 -22 )
SN: 60942-UP
2шт.
2
232-15-19220
RING,(F2320-51A0 -4 )
SN: 60942-65000
1шт.
2
425-15-19250
RING,(F2320-52A0 -31 )
SN: 60942-65000
1шт.
2
562-15-19220
RING,(F2320-52A0 -27 )
SN: 60942-65000
1шт.
2
562-15-19320
RING,(F2320-52A0 -26 )
SN: 60942-65000
1шт.
2
568-15-12850
RING,(F2320-52A0 -5 )
SN: 60942-65000
1шт.
2
569-15-12860
RING,(F2320-52A0A -4 )
SN: 65001-UP
1шт.
3
14X-15-05091
SERVICE KIT,TRANSMISSION CONTROL VALVE
SN: 65001-UP
1шт.
3
14X-15-05090
SERVICE KIT,TRANSMISSION CONTROL VALVE
SN: 60942-65000
1шт.
3
07000-73030
O-RING,(F2320-59A0 -25 )
SN: 60942-UP
5шт.
3
07000-73038
O-RING,(F2320-58A0A-13 )
SN: 60942-UP
1шт.
3
07002-03034
O-RING,(F2320-57A0B-2 )
SN: 60942-UP
1шт.
3
07002-03034
O-RING,(F2320-59A0 -4 )
SN: 60942-UP
1шт.
3
07002-03034
O-RING,(F2320-59A0 -14 )
SN: 60942-UP
1шт.
3
07002-03034
O-RING,(F2320-59A0 -22 )
SN: 60942-UP
2шт.
3
125-15-15170
SHIM, 0.5MM,(F2320-58A0A -26 )
SN: 65001-UP
7шт.
3
125-15-15170
SHIM, 0.5MM,(F2320-58A0A -26 )
SN: 60942-65000
5шт.
3
198-15-15570
SHIM, 0.50MM,(F2320-59A0 -9 )
SN: 60942-UP
6шт.
