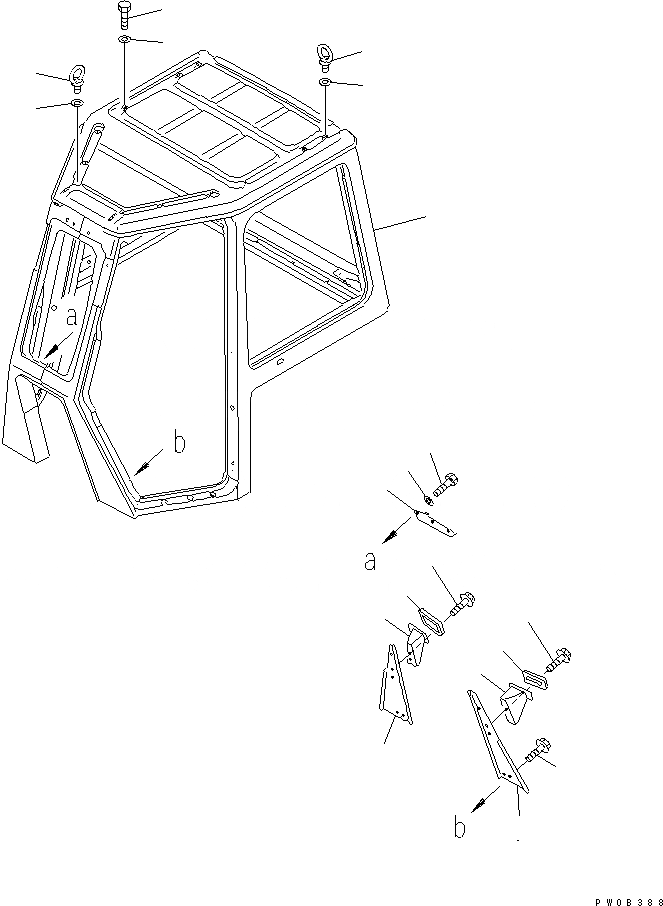

Запчасти Komatsu D65EX-12 КОРПУС КАБИНЫ(№-) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

|$13

14X-Z11-0010

CAB ASS'Y,(AM RADIO)

SN: 65001-UP

1шт.

|$14

14X-911-0080

CAB ASS'Y,(AM/FM CASSETTE STEREO)

SN: 65001-UP

1шт.

|$15

14X-Z11-0020

CAB ASS'Y,(AM RADIO, F.R. WORK LAMP)

SN: 65001-UP

1шт.

|$16

14X-Z11-0030

CAB ASS'Y,(AM/FM CST.ST., F.R.WORK LAMP)

SN: 65001-UP

1шт.

|$17

14X-Z11-0040

CAB ASS'Y,(AM RADIO, FRONT WORK LAMP)

SN: 65001-UP

1шт.

|$18

14X-Z11-0050

CAB ASS'Y,(AM/FM CT.ST, FRONT WORK LAMP)

SN: 65001-UP

1шт.

|$19

14X-Z11-0060

CAB ASS'Y,(AM RADIO, REAR WORK LAMP)

SN: 65001-UP

1шт.

|$20

14X-Z11-0070

CAB ASS'Y,(AM/FM CT.ST, REAR WORK LAMP)

SN: 65001-UP

1шт.

|$21

14X-911-0070

CAB ASS'Y,(RADIO LESS)

SN: 65001-UP

1шт.

|$22

14X-Z11-0080

CAB ASS'Y,(RADIO LESS, F.R. WORK LAMP)

SN: 65001-UP

1шт.

|$23

14X-Z11-0090

CAB ASS'Y,(RADIO LESS, FRONT WORK LAMP)

SN: 65001-UP

1шт.

|$24

14X-Z11-0100

CAB ASS'Y,(RADIO LESS, REAR WORK LAMP)

SN: 65001-UP

1шт.

|$25

14X-911-0060

CAB ASS'Y,(FOR RADIO LESS)(EXCEPT JAPAN)

SN: 65001-UP

1шт.

|$$14

THESE ASSEMBLY CONSIST OF SOME FIGS. BE CAREFUL WHEN ORDERING THE PARTS.

-1шт.

1

14X-911-1114

CAB

SN: 65001-UP

1шт.

2

01010-81220

BOLT

SN: 65001-UP

8шт.

3

01643-31232

WASHER

SN: 65001-UP

8шт.

4

04530-11222

BOLT

SN: 65001-UP

4шт.

5

14X-911-5671

BRACKET

SN: 65001-UP

1шт.

6

01010-81225

BOLT

SN: 65001-UP

3шт.

7

01643-31232

WASHER

SN: 65001-UP

3шт.

8

14X-911-2541

COVER,L.H.

SN: 65001-UP

1шт.

9

14X-911-2551

COVER,R.H.

SN: 65001-UP

1шт.

10

01435-41016

BOLT

SN: 65195-UP

6шт.

10

01435-31016

BOLT

SN: 65001-65194

6шт.

11

14X-911-5711

BRACKET,L.H.

SN: 65001-UP

1шт.

12

14X-911-5721

BRACKET,R.H.

SN: 65001-UP

1шт.

13

203-43-56450

CAP, PEDAL

SN: 65001-UP

2шт.

14

01439-01225

BOLT

SN: 65001-UP

4шт.
