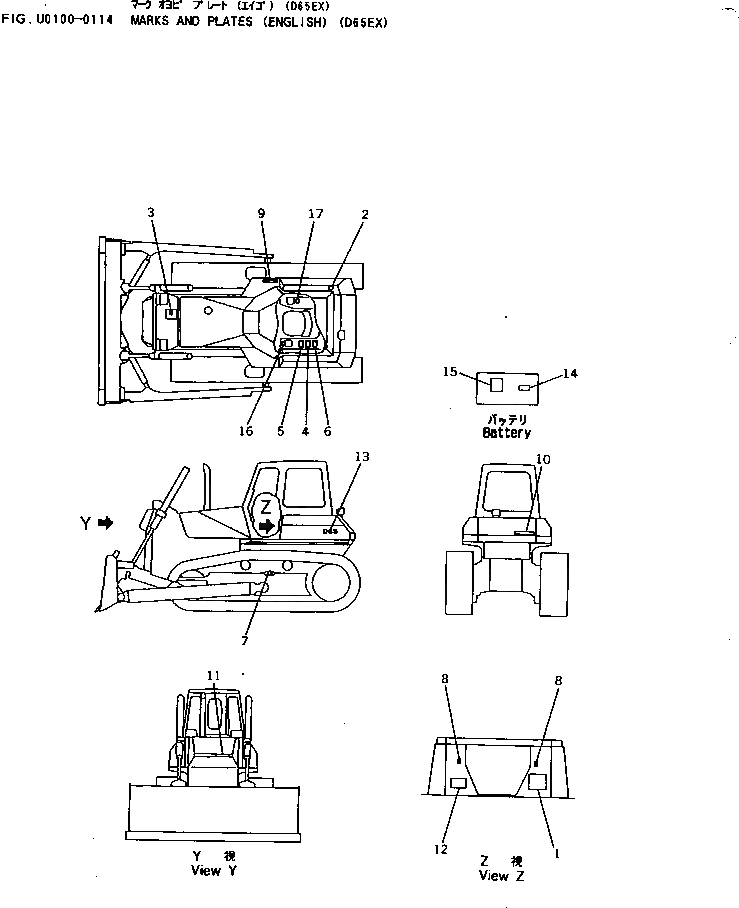

Запчасти Komatsu D65EX-12 МАРКИРОВКА (АНГЛ.) (DEX) МАРКИРОВКА

1

14X-98-11511

OIL CHART

SN: 60735-UP

1шт.

1

14X-98-11510

OIL CHART

SN: 60001-60734

1шт.

|$8

14X-98-12310

PLATE

SN: 60001-UP

1шт.

2

0

PLATE, CAUTION,OPERATING OIL TANK

SN: 60001-UP

1шт.

3

0

PLATE, SAFETY,RADIATOR

SN: 60001-UP

1шт.

4

0

PLATE, CAUTION,BEFORE AND AFTER OPERATION

SN: 60001-UP

1шт.

5

0

PLATE, SAFETY,BEFORE OPERATING

SN: 60001-UP

1шт.

6

0

PLATE, CAUTION,SAFETY COMFIRM OF REAR

SN: 60001-UP

1шт.

7

14X-98-11551

PLATE, SAFETY,ADJUSTING TRACK SHOE

SN: 60001-UP

2шт.

8

14X-98-11170

PLATE, OPERATING,LOCK

SN: 60001-UP

2шт.

9

14X-98-11560

PLATE,PRESSURE TEST (HSS)

SN: 60001-UP

1шт.

10

09690-C0400

PLATE, MARK,KOMATSU, REAR

SN: 60001-UP

1шт.

10

09690-C0630

PLATE, MARK,KOMATSU, REAR (FOR USA)

SN: 60572-UP

1шт.

10

09690-C0400

PLATE, MARK,KOMATSU, REAR (FOR USA)

SN: 60001-60571

1шт.

11

09690-B0280

PLATE, MARK,KOMATSU, FRONT

SN: 60001-UP

1шт.

12

09602-01635

PLATE, NAME,(LIMITED SUPPLY)

SN: 60001-UP

1шт.

12

04418-13060

SCREW

SN: 60001-UP

4шт.

13

14X-98-11320

PLATE, MARK,D65EX

SN: 60001-UP

2шт.

14

09664-30068

PLATE, SAFETY,BATTERY (FOR USA)

SN: 60001-UP

2шт.

15

14X-98-11370

PLATE, INSTRUCTION,BATTERY (FOR USA)

SN: 60001-UP

2шт.

16

14X-98-11230

PLATE, OPERATING,STEERING LEVER (HSS)

SN: 60001-UP

1шт.

17

14X-98-11250

PLATE, OPERATING,WORK EQUIP.LEVER (TILT DOZER)

SN: 60001-UP

1шт.

17

14X-98-11260

PLATE, OPERATING,WORK EQUIP.LEVER (ANGLE DOZER)

SN: 60001-UP

1шт.

17

14X-916-1220

PLATE, OPERATING,WORK EQUIP.LEVER (TRIMMING D.)

SN: 60001-UP

1шт.
