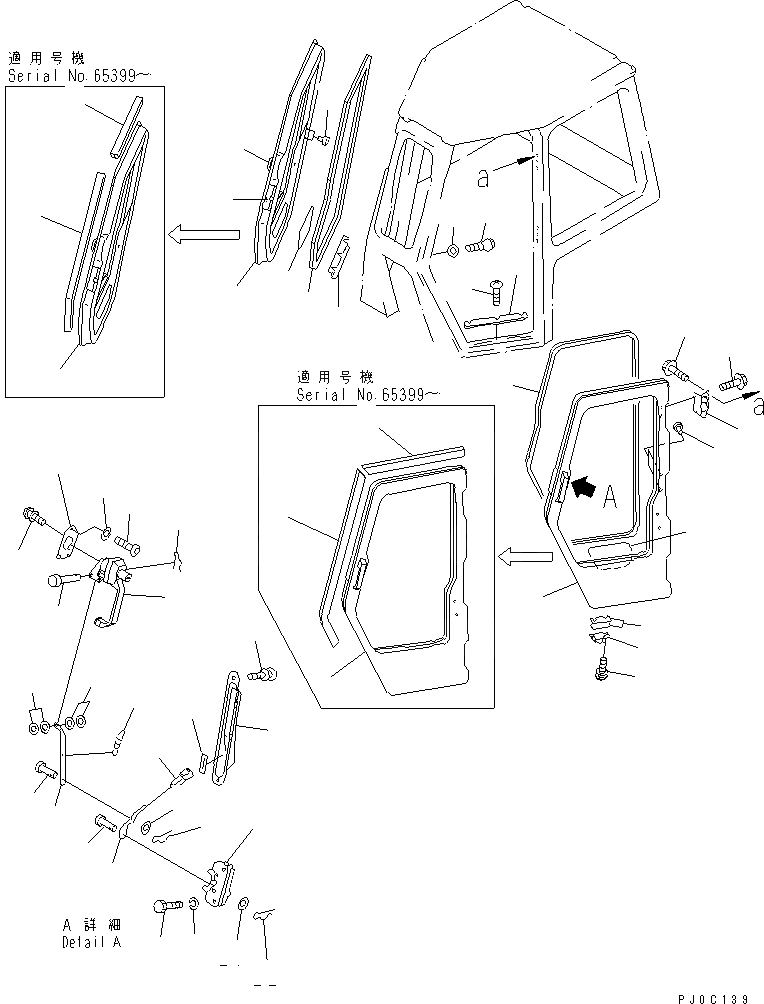

Запчасти Komatsu D65E-12 КАБИНА (ДВЕРЬ И ЗАМОК ДВЕРИ)(№-) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

|$13

14X-Z11-0010

CAB ASS'Y,(AM RADIO)

SN: 65001-UP

1шт.

|$14

14X-911-0080

CAB ASS'Y,(AM/FM CASSETTE STEREO)

SN: 65001-UP

1шт.

|$15

14X-Z11-0020

CAB ASS'Y,(AM RADIO, F.R. WORK LAMP)

SN: 65001-UP

1шт.

|$16

14X-Z11-0030

CAB ASS'Y,(AM/FM CST.ST., F.R.WORK LAMP)

SN: 65001-UP

1шт.

|$17

14X-Z11-0040

CAB ASS'Y,(AM RADIO, FRONT WORK LAMP)

SN: 65001-UP

1шт.

|$18

14X-Z11-0050

CAB ASS'Y,(AM/FM CT.ST, FRONT WORK LAMP)

SN: 65001-UP

1шт.

|$19

14X-Z11-0060

CAB ASS'Y,(AM RADIO, REAR WORK LAMP)

SN: 65001-UP

1шт.

|$20

14X-Z11-0070

CAB ASS'Y,(AM/FM CT.ST, REAR WORK LAMP)

SN: 65001-UP

1шт.

|$21

14X-911-0070

CAB ASS'Y,(RADIO LESS)

SN: 65001-UP

1шт.

|$22

14X-Z11-0080

CAB ASS'Y,(RADIO LESS, F.R. WORK LAMP)

SN: 65001-UP

1шт.

|$23

14X-Z11-0090

CAB ASS'Y,(RADIO LESS, FRONT WORK LAMP)

SN: 65001-UP

1шт.

|$24

14X-Z11-0100

CAB ASS'Y,(RADIO LESS, REAR WORK LAMP)

SN: 65001-UP

1шт.

|$25

14X-911-0060

CAB ASS'Y,(FOR RADIO LESS)(EXCEPT JAPAN)

SN: 65001-UP

1шт.

|$$14

THESE ASSEMBLY CONSIST OF SOME FIGS. BE CAREFUL WHEN ORDERING THE PARTS.

-1шт.

1

14X-911-1323

DOOR,L.H.

SN: 65001-UP

1шт.

1

14X-911-1423

DOOR,R.H.

SN: 65001-UP

1шт.

2

14X-911-1390

SEAL

SN: 65001-UP

2шт.

3

14X-911-1430

SEAL,L.H.

SN: 65399-UP

1шт.

3

14X-911-1440

SEAL,R.H.

SN: 65399-UP

1шт.

4

14X-911-1450

SEAL,L.H.

SN: 65399-UP

1шт.

4

14X-911-1460

SEAL,R.H.

SN: 65399-UP

1шт.

5

14X-911-5310

RIVET

SN: 65001-UP

4шт.

6

14X-911-1330

HINGE

SN: 65001-UP

6шт.

7

01435-01025

BOLT

SN: 65001-UP

36шт.

8

195-Z11-4510

LOCK,L.H.

SN: 65001-UP

1шт.

8

195-Z11-4520

LOCK,R.H.

SN: 65001-UP

1шт.

9

01010-80635

BOLT

SN: 65001-UP

8шт.

10

01602-20619

WASHER

SN: 65001-UP

8шт.

11

14X-911-1631

STRIKER

SN: 65001-UP

2шт.

12

01643-31232

WASHER

SN: 65001-UP

2шт.

13

198-Z11-3710

HANDLE ASS'Y

SN: 65001-UP

2шт.

14

01023-10520

SCREW

SN: 65001-UP

10шт.

15

14X-911-1721

PLATE

SN: 65001-UP

2шт.

16

23S-06-14990

SCREW

SN: 65001-UP

6шт.

17

362-06-21140

WASHER

SN: 65001-UP

6шт.

18

14X-911-1941

LEVER,L.H.

SN: 65001-UP

1шт.

18

14X-911-1951

LEVER,R.H.

SN: 65001-UP

1шт.

19

14X-911-1643

PLATE,L.H.

SN: 65001-UP

1шт.

19

14X-911-1653

PLATE,R.H.

SN: 65001-UP

1шт.

20

04205-10614

PIN

SN: 65001-UP

4шт.

21

01641-20608

WASHER

SN: 65001-UP

4шт.

22

04050-11612

PIN

SN: 65001-UP

4шт.

23

14X-911-1540

KNOB

SN: 65001-UP

2шт.

24

176-06-42170

SPRING

SN: 65001-UP

2шт.

25

14X-911-1712

COVER

SN: 65001-UP

6шт.

26

01023-20512

SCREW

SN: 65001-UP

4шт.

27

14X-911-1780

SEAL

SN: 65001-UP

2шт.

28

04205-10622

PIN

SN: 65001-UP

2шт.

29

01643-10623

WASHER

SN: 65001-UP

8шт.

30

04052-10633

PIN

SN: 65001-UP

2шт.

31

14X-911-2341

TRIM

SN: 65001-UP

2шт.

32

14X-911-5831

PLATE

SN: 65001-UP

2шт.

33

01023-20616

SCREW

SN: 65001-UP

6шт.

34

14X-911-1690

DAMPER

SN: 65001-UP

4шт.

35

14X-911-1761

SHIM, 1.2MM

SN: 65001-UP

8шт.

36

01023-20616

SCREW

SN: 65001-UP

8шт.
