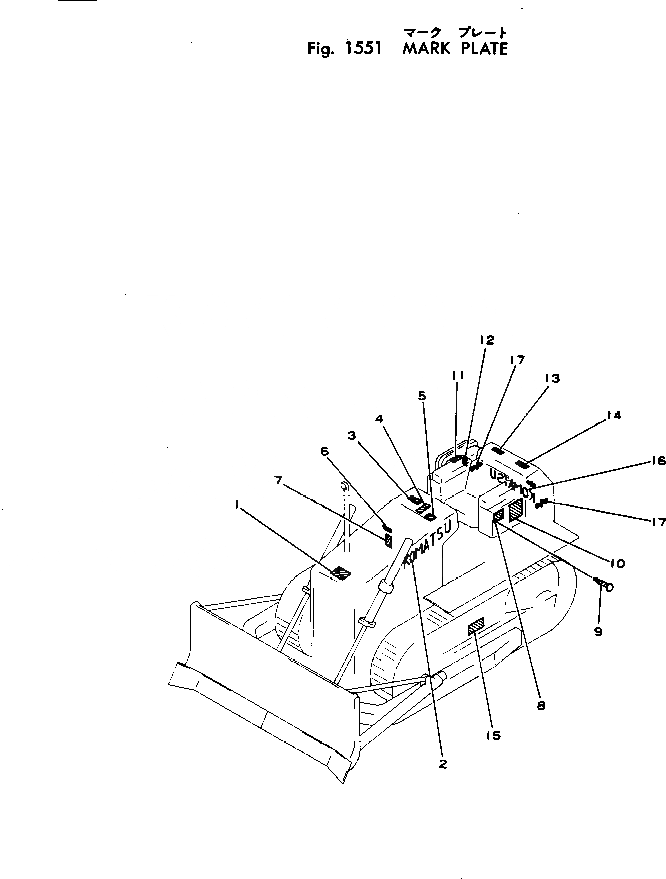

Запчасти Komatsu D65A-6 МАРКИРОВКА ЧАСТИ КОРПУСА

1

09650-00101

PLATE, INSTRUCTION,RADIATOR

SN: 28229-UP

1шт.

2

09690-00900

PLATE, MARK

SN: 20006-UP

2шт.

3

09654-00060

PLATE, SAFETY,STARTING AND LEAVING SEAT

SN: 20006-UP

1шт.

4

144-54-18130

PLATE, OPERATING,SHIFT

SN: 20006-UP

1шт.

5

144-98-11240

PLATE, DATA

SN: 28063-UP

1шт.

5

14G-98-11160

PLATE, DATA

SN: 20000-20000

1шт.

6

09683-00050

PLATE, NAME,STARTING SWITCH

SN: 20006-UP

1шт.

7

09682-00021

PLATE, OPERATING,DECOMPRESSION LEVER

SN: 20006-UP

1шт.

8

09602-01635

PLATE, NAME,(LIMITED SUPPLY)

SN: 20006-UP

1шт.

9

04418-03060

SCREW

SN: 20006-UP

4шт.

10

144-98-11220

CHART, OIL

SN: 20006-UP

1шт.

10

14G-98-11110

CHART, OIL

SN: 20000-20000

1шт.

11

09653-00080

PLATE, SAFETY,HYDRAULIC TANK

SN: 20006-UP

1шт.

12

09655-00120

PLATE, INSTRUCTION,OIL FILTER

SN: 20006-UP

1шт.

13

09656-00080

PLATE, INSTRUCTION,FUEL TANK STRAINER

SN: 20006-UP

1шт.

14

09652-00100

PLATE, CAUTION,FUEL TANK

SN: 20006-UP

1шт.

15

09657-00125

PLATE, SAFETY,TRACK SHOE ADJUSTING

SN: 20006-UP

1шт.

16

09692-05652

PLATE, MARK

SN: 20006-UP

1шт.

16

09692-05654

PLATE, MARK

SN: 20000-20000

1шт.

17

09691-05652

PLATE, MARK

SN: 20006-UP

2шт.

17

09691-05654

PLATE, MARK

SN: 20000-20000

2шт.
