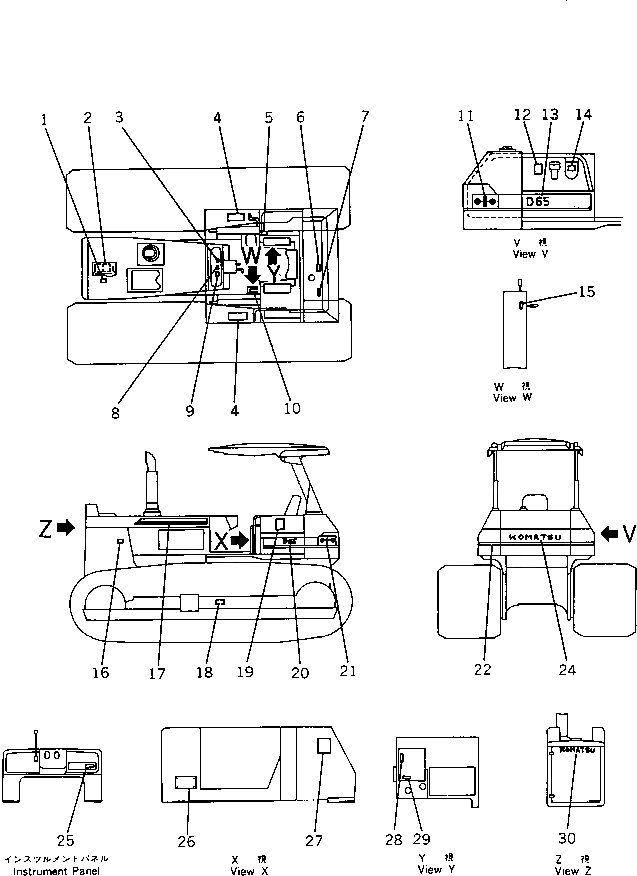

Запчасти Komatsu D65A-11 МАРКИРОВКА (ЯПОН.) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09668-00100

PLATE¤ SAFETY,KOMATSU

SN: 50001-UP

1шт.

2

09650-01101

PLATE¤ INSTRUCTION,RADIATOR

SN: 50001-UP

1шт.

3

09654-00100

PLATE¤ SAFETY,STARTING AND AFTER OPERATING

SN: 50001-UP

1шт.

4

120-54-32451

SHEET,ANTISKID

SN: 50001-UP

2шт.

5

09670-00001

PLATE¤ OPERATING,FOR ANGLE CONTROL LEVER

SN: 50001-UP

1шт.

|5

09670-00004

PLATE¤ OPERATING,FOR TILT CONTROL LEVER

SN: 50001-UP

1шт.

|5

09670-00005

PLATE¤ OPERATING,(FOR TRIMMING DOZER)

SN: 50001-UP

1шт.

6

09656-01080

PLATE¤ INSTRUCTION,FUEL TANK STRAINER

SN: 50001-UP

1шт.

7

09652-01101

PLATE¤ CAUTION,FUEL TANK WATER DRAIN

SN: 50001-UP

1шт.

8

09651-00100

PLATE¤ SAFETY,BEFORE OPERATING

SN: 50001-UP

1шт.

9

09173-00100

PLATE¤ SAFETY

SN: 50001-UP

1шт.

10

144-54-25270

PLATE¤ OPERATING,TRANSMISSION CONTROL LEVER

SN: 50001-UP

1шт.

|10

04418-03060

SCREW

SN: 50001-UP

6шт.

11

134-54-35110

PLATE¤ MARK,SYMBOL

SN: 50001-UP

1шт.

12

09653-00100

PLATE¤ SAFETY,HYDRAULIC TANK

SN: 50001-UP

1шт.

13

144-54-84251

PLATE¤ MARK,D65A¤ R.H.

SN: 50039-UP

1шт.

|13

144-54-84250

PLATE¤ MARK,D65A¤ R.H.

SN: 50001-50038

1шт.

14

09655-01120

PLATE¤ INSTRUCTION,HYDRAULIC FILTER

SN: 50001-UP

1шт.

15

09685-00002

PLATE¤ OPERATING,LOCK LEVER

SN: 50001-UP

-1шт.

16

09667-00100

PLATE¤ SAFETY,ENGINE ROOM

SN: 50001-UP

2шт.

17

15B-54-15151

PLATE¤ MARK,LINE¤ L.H.

SN: 50039-UP

1шт.

|17

15B-54-15150

PLATE¤ MARK,LINE¤ L.H.

SN: 50001-50038

1шт.

|17

15B-54-15141

PLATE¤ MARK,LINE¤ R.H.

SN: 50039-UP

1шт.

|17

15B-54-15140

PLATE¤ MARK,LINE¤ R.H.

SN: 50001-50038

1шт.

18

09657-00110

PLATE¤ SAFETY,TRACK SHOE ADJUSTING

SN: 50001-UP

2шт.

19

14F-54-84240

CHART,OIL

SN: 50001-UP

1шт.

20

144-54-84241

PLATE¤ MARK,D60A¤ L.H.

SN: 50039-UP

1шт.

|20

144-54-84240

PLATE¤ MARK,D60A¤ L.H.

SN: 50001-50038

1шт.

21

134-54-35110

PLATE¤ MARK,SYMBOL

SN: 50001-UP

1шт.

22

144-54-84121

PLATE¤ MARK,WHITE LINE

SN: 50039-UP

3шт.

|22

144-54-84120

PLATE¤ MARK,WHITE LINE

SN: 50001-50038

3шт.

24

09690-50800

PLATE¤ MARK,KOMATSU

SN: 50001-UP

1шт.

25

09683-01060

PLATE¤ OPERATING,STARTING SWITCH

SN: 50001-UP

1шт.

26

09602-01635

PLATE¤ NAME

SN: 50001-UP

1шт.

|26

04418-13060

SCREW

SN: 50001-UP

4шт.

27

144-54-84260

PLATE

SN: 50001-UP

1шт.

28

09685-00005

PLATE¤ OPERATING,WORK EQUIPMENT

SN: 50001-UP

1шт.

29

09685-00004

PLATE¤ OPERATING,BRAKE LOCK LEVER

SN: 50001-UP

1шт.

30

09690-50500

PLATE¤ MARK,KOMATSU

SN: 50001-UP

1шт.
