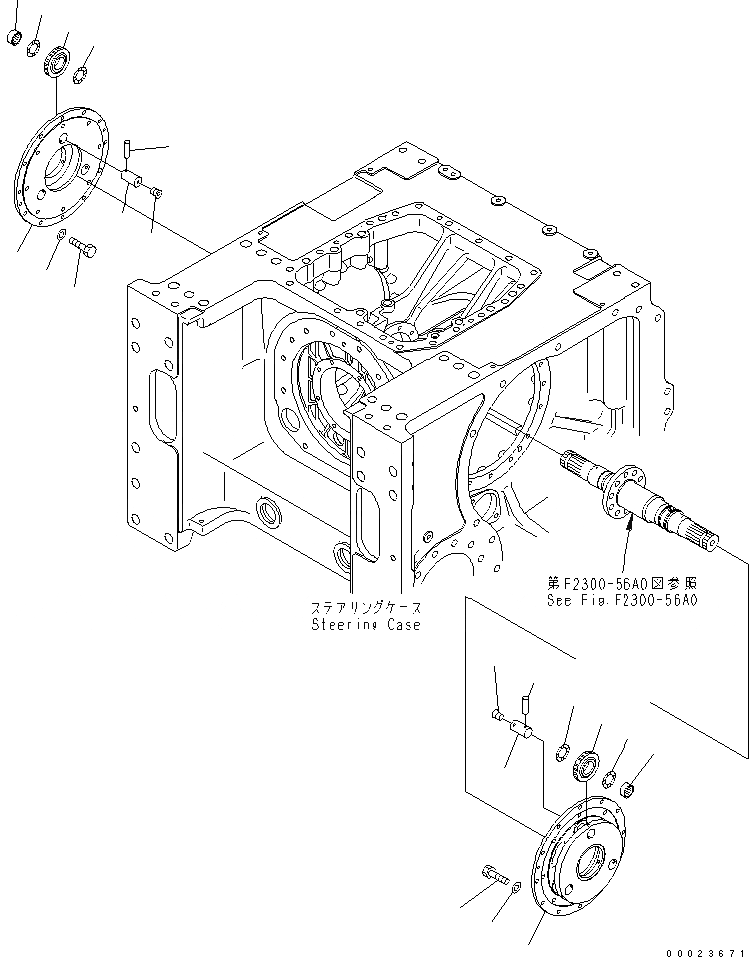

Запчасти Komatsu D61EX-15E0-BW H.S.S. (НЕСУЩИЙ ЭЛЕМЕНТ) СИЛОВАЯ ПЕРЕДАЧА И КОНЕЧНАЯ ПЕРЕДАЧА

|1

134-22-70003

POWER LINE ASS'Y

SN: B45783-UP

1шт.

|1

134-22-70002

POWER LINE ASS'Y

SN: B45001-B45782

1шт.

|$21

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2300-51A0 TO F2300-64A0.

-1шт.

|1

134-22-70013

POWER LINE ASS'Y,(FOR REAR ATTACHMENT)

SN: B45783-UP

1шт.

|1

134-22-70012

POWER LINE ASS'Y,(FOR REAR ATTACHMENT)

SN: B45001-B45782

1шт.

|$22

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2300-51A1 TO F2300-64A1.

-1шт.

|1

134-22-71000

STEERING ASS'Y

SN: B45001-UP

1шт.

|$23

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2300-52A0 TO F2300-55A0.

-1шт.

|1

134-22-72400

CARRIER ASS'Y

SN: B45001-UP

2шт.

1

154-22-22110

CARRIER

SN: B45001-UP

1шт.

2

14Y-22-22150

GEAR

SN: B45001-UP

4шт.

3

134-22-79380

BEARING

SN: B45001-UP

4шт.

4

154-22-22280

SHAFT

SN: B45001-UP

4шт.

5

07043-70108

PLUG

SN: B45001-UP

4шт.

6

154-15-12550

WASHER

SN: B45001-UP

8шт.

7

14Y-22-22360

PIN

SN: B45001-UP

4шт.

8

01010-81030

BOLT

SN: B45001-UP

24шт.

9

01643-31032

WASHER

SN: B45001-UP

24шт.
