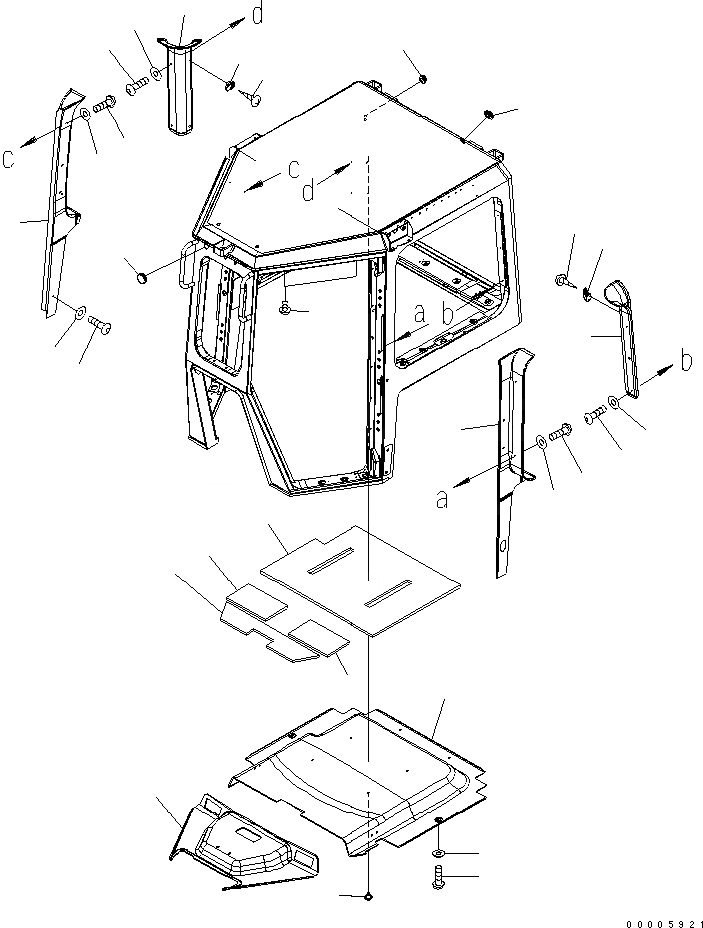

Запчасти Komatsu D61EX-15E0-BW КАБИНА (ВНУТР. ПОКРЫТИЕ) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

|1

17A-Z11-0064

CAB ASS'Y,(RADIO LESS)

SN: B45850-UP

1шт.

|1

17A-Z11-0063

CAB ASS'Y,(RADIO LESS)

SN: B45207-B45849

1шт.

|1

17A-Z11-0062

CAB ASS'Y,(RADIO LESS)

SN: B45001-B45206

1шт.

|1

17A-Z11-0072

CAB ASS'Y,(RADIO LESS¤ HEAT GLASS)

SN: B45001-UP

1шт.

|1

17A-Z11-0112

CAB ASS'Y,(AM/FM CASSETTE STEREO)

SN: B45001-UP

1шт.

|1

17A-Z11-0122

CAB ASS'Y,(RADIO CASSETTE¤ HEAT GLASS)

SN: B45001-UP

1шт.

|$31

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-17A0.

-1шт.

1

17A-Z11-2711

COVER

SN: B45001-UP

1шт.

2

17A-Z11-2721

COVER

SN: B45001-UP

1шт.

3

20Y-54-18690

RIVET

SN: B45001-UP

4шт.

4

01245-00620

SCREW

SN: B45001-UP

4шт.

5

17A-Z11-2813

PLATE

SN: B45001-UP

4шт.

6

17A-Z11-2850

SHEET

SN: B45001-UP

1шт.

7

17A-Z11-2860

SHEET

SN: B45001-UP

2шт.

8

17A-Z11-2840

SHEET

SN: B45001-UP

1шт.

9

17A-Z11-2731

COVER

SN: B45001-UP

1шт.

10

17A-Z11-2741

COVER

SN: B45001-UP

1шт.

11

17A-Z11-2751

COVER

SN: B45001-UP

1шт.

12

17A-Z11-2761

COVER

SN: B45001-UP

1шт.

13

01245-00620

SCREW

SN: B45001-UP

14шт.

14

17A-Z11-2813

PLATE

SN: B45001-UP

14шт.

15

17A-Z11-2940

HOOK

SN: B45001-UP

2шт.

16

01370-40412

SCREW

SN: B45001-UP

4шт.

17

09415-01008

CAP

SN: B45001-UP

2шт.

18

09415-02512

CAP

SN: B45001-UP

2шт.

19

198-Z11-2790

CLIP

SN: B45001-UP

4шт.
