1
134-13-05030
SERVICE KIT, TORQU CONVERTER
SN: B40001-UP
1шт.
|1
02896-21018
O-RING, (F2310-55A0 -18 )
SN: B40001-UP
1шт.
|1
07000-72070
O-RING, (F2310-54A1 -11 )
SN: B40001-UP
1шт.
|1
07000-72090
O-RING, (F2310-55A0 -4 )
SN: B40001-UP
1шт.
|1
07000-72100
O-RING, (F2310-55A0 -10 )
SN: B40001-UP
1шт.
|1
07000-72110
O-RING, (F2310-55A0 -9 )
SN: B40001-UP
1шт.
|1
07000-72115
O-RING, (F2310-54A0 -26 )
SN: B40001-UP
1шт.
|1
07000-73030
O-RING, (F2310-52A0 -8 )
SN: B40001-UP
2шт.
|1
07000-73032
O-RING, (F2310-52A0 -9 )
SN: B40001-UP
2шт.
|1
07000-73045
O-RING, (F2310-55A0 -19 )
SN: B40001-UP
2шт.
|1
07000-75042
O-RING, (F2310-54A1 -26 )
SN: B40001-UP
1шт.
|1
07000-75055
O-RING, (F2310-52A0 -25 )
SN: B40001-UP
1шт.
|1
07000-75210
O-RING, (F2310-54A1 -18 )
SN: B40001-UP
1шт.
|1
07000-75260
O-RING, (F2310-54A1 -22 )
SN: B40001-UP
1шт.
|1
07002-11023
O-RING, (F2310-55A0 -23 )
SN: B40001-UP
1шт.
|1
07005-01212
GASKET, (F2310-52A0 -13 )
SN: B40001-UP
7шт.
|1
07018-31054
RING, (F2310-51A0 -7 )
SN: B40001-UP
1шт.
2
134-15-05040
SERVICE KIT, TRANSMISSION
SN: B40001-UP
1шт.
|2
02896-21018
O-RING, (F2320-62A0 -2 )
SN: B40001-UP
1шт.
|2
07000-72014
O-RING, (F2320-55A0 -8 )
SN: B40001-UP
1шт.
|2
07000-72014
O-RING, (F2320-55A0 -17 )
SN: B40001-UP
1шт.
|2
07000-72020
O-RING, (F2320-52A0 -5 )
SN: B40001-UP
2шт.
|2
07000-73022
O-RING, (F2320-55A0 -16 )
SN: B40001-UP
1шт.
|2
07000-73022
O-RING, (F2320-55A0 -19 )
SN: B40001-UP
1шт.
|2
07000-73025
O-RING, (F2320-55A0 -9 )
SN: B40001-UP
1шт.
|2
07000-73025
O-RING, (F2320-55A0 -20 )
SN: B40001-UP
1шт.
|2
07000-73028
O-RING, (F2320-55A0 -10 )
SN: B40001-UP
1шт.
|2
07000-73030
O-RING, (F2320-52A0 -23 )
SN: B40001-UP
3шт.
|2
07000-73035
O-RING, (F2320-52A0 -24 )
SN: B40001-UP
1шт.
|2
07000-73042
O-RING, (F2320-62A0 -7 )
SN: B40001-UP
1шт.
|2
07002-11023
O-RING, (F2320-62A0 -4 )
SN: B40001-UP
1шт.
|2
07002-12434
O-RING, (F2320-55A0 -5 )
SN: B40001-UP
1шт.
|2
07005-01412
GASKET, (F2320-62A0 -6 )
SN: B40001-UP
1шт.
|2
103-15-12820
RING, (F2320-52A0 -27 )
SN: B40001-UP
1шт.
|2
113-15-12870
RING, (F2320-51A0 -13 )
SN: B40001-UP
1шт.
|2
113-15-12870
RING, (F2320-51A0 -18 )
SN: B40001-UP
1шт.
|2
113-15-12870
RING, (F2320-52A0 -32 )
SN: B40001-UP
1шт.
|2
124-15-41910
RING, (F2320-51A0 -16 )
SN: B40001-UP
1шт.
|2
124-15-41910
RING, (F2320-52A0 -2 )
SN: B40001-UP
1шт.
|2
124-15-41910
RING, (F2320-52A0 -30 )
SN: B40001-UP
1шт.
|2
124-15-41920
RING, (F2320-52A0 -28 )
SN: B40001-UP
1шт.
|2
14X-15-15910
GASKET, (F2320-61A0 -2 )
SN: B40001-UP
1шт.
|2
14X-15-25831
GASKET, (F2320-61A0 -8 )
SN: B40001-UP
1шт.
|2
14X-15-29210
RING, (F2320-54A0 -6 )
SN: B40001-UP
1шт.
|2
14X-15-29220
SEAL RING, (F2320-52A0 -17 )
SN: B40001-UP
1шт.
|2
14X-15-29220
SEAL RING, (F2320-54A0 -13 )
SN: B40001-UP
1шт.
|2
14X-15-29230
SEAL RING, (F2320-52A0 -39 )
SN: B40001-UP
1шт.
|2
14X-15-29230
SEAL RING, (F2320-52A0 -44 )
SN: B40001-UP
1шт.
3
134-15-05050
SERVICE KIT, TRANSMISSION CONTROL VALVE
SN: B40001-UP
1шт.
|3
07000-72012
O-RING, (F2320-57A0 -6 )
SN: B40001-UP
5шт.
|3
07000-72014
O-RING, (F2320-57A0 -12 )
SN: B40001-UP
2шт.
|3
07002-11823
O-RING, (F2320-57A0 -7 )
SN: B40001-UP
5шт.
|3
195-15-75531
GASKET, (F2320-57A0 -1 )
SN: B40001-UP
1шт.
|3
209-38-12480
O-RING, (F2320-57A0 -10 )
SN: B40001-UP
1шт.
|3
209-38-12490
RING, (F2320-57A0 -11 )
SN: B40001-UP
1шт.
|3
714-23-15560
O-RING, (F2320-58A0 -10 )
SN: B40001-UP
3шт.
|3
714-23-15560
O-RING, (F2320-59A0 -10 )
SN: B40001-UP
2шт.
4
134-15-05060
SERVICE KIT, TRANSMISSION MAIN VALVE
SN: B40001-UP
1шт.
|4
07000-73030
O-RING, (F2320-60A0 -25 )
SN: B40001-UP
5шт.
|4
07002-03034
O-RING, (F2320-60A0 -4 )
SN: B40001-UP
1шт.
|4
07002-03034
O-RING, (F2320-60A0 -13 )
SN: B40001-UP
1шт.
|4
07002-03034
O-RING, (F2320-60A0 -22 )
SN: B40001-UP
2шт.
Заказать запчасти

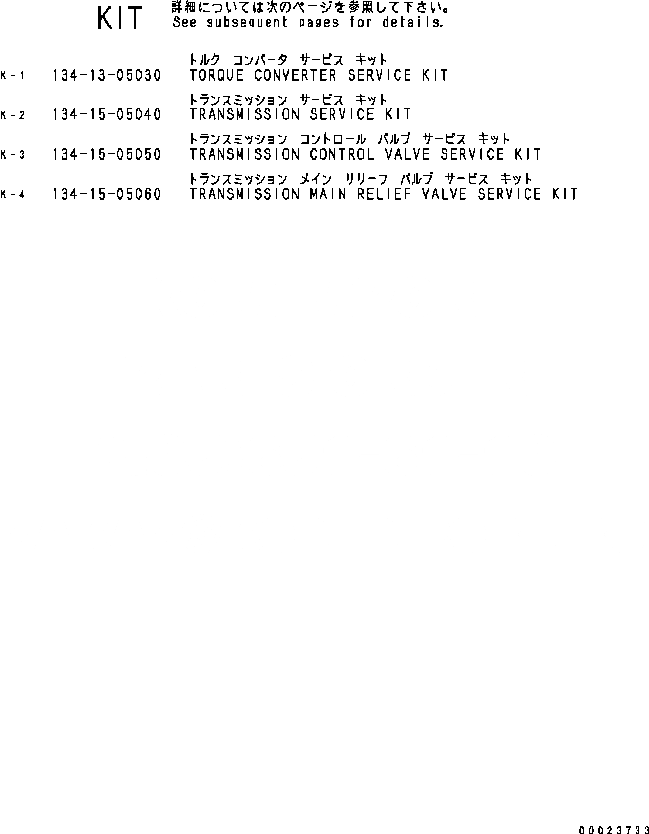

![Схема запчастей Komatsu D61EX-15 - РЕМ. КОМПЛЕКТЫ (ДЛЯ ЗАДН. НАВЕСН. ОБОРУД) Y [ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ]](https://partsell.ru/storage/images/komatsu/D61EX15B/y00003a.png)
