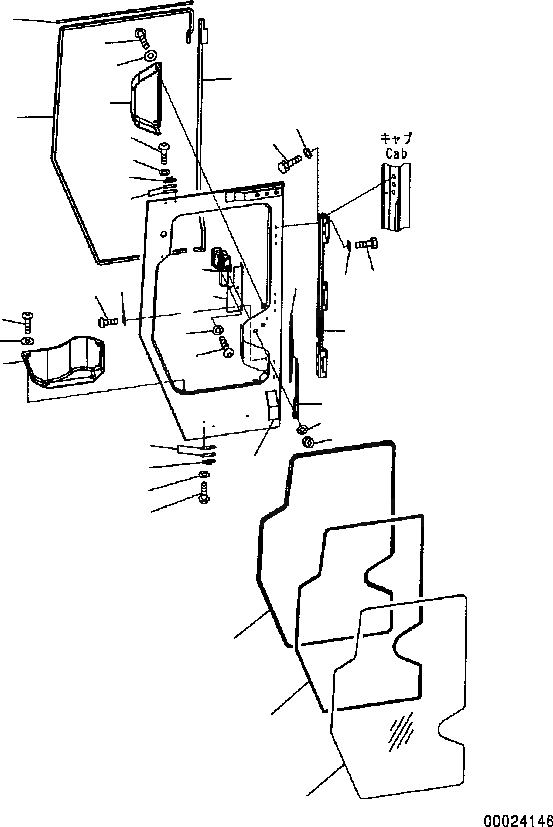

Запчасти Komatsu D61EX-15 КАБИНА (ДВЕРЬ) (ДЕМПФЕР, ОКНА, ДВОРНИКИ) (ЛЕВ.) K [КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ]

|1

17A-Z11-0042

CAB ASSEMBLY

SN: B40001-UP

1шт.

|1

17A-Z11-0062

CAB ASSEMBLY, (RADIO LESS)

SN: B40001-UP

1шт.

|1

17A-Z11-0072

CAB ASSEMBLY, (RADIO LESS, HEAT GLASS)

SN: B40001-UP

1шт.

|1

17A-Z11-0102

CAB ASSEMBLY, (AM/FM RADIO)

SN: B40001-UP

1шт.

|1

17A-Z11-0112

CAB ASSEMBLY, (AM/FM CASSETTE STEREO)

SN: B40001-UP

1шт.

|1

17A-Z11-0122

CAB ASSEMBLY, (RADIO AM/FM AND CAS\SETTE)

SN: B40001-UP

1шт.

|$7

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210

-1шт.

|1

17A-Z11-0023

DOOR ASSEMBLY, L.H.

SN: B40001-UP

1шт.

|$9

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210

-1шт.

1

14X-911-1690

DUMPER

SN: B40001-UP

2шт.

2

14X-911-1761

SHIM, 1.2MM

SN: B40001-UP

4шт.

3

01245-00616

SCREW

SN: B40001-UP

4шт.

4

01643-70623

WASHER

SN: B40001-UP

4шт.

5

17A-Z11-3362

SEAL, L.H.

SN: B40001-UP

1шт.

6

17A-Z11-3371

SEAL, L.H.

SN: B40001-UP

1шт.

7

17A-Z11-3392

SEAL

SN: B40001-UP

1шт.

8

17A-Z11-3140

SHEET

SN: B40001-UP

1шт.

9

17A-Z11-1263

GLASS, L.H.

SN: B40001-UP

1шт.

10

17A-Z11-1280

SEAL

SN: B40001-UP

1шт.

11

17A-Z11-3385

TRIM

SN: B40001-UP

1шт.

12

17A-Z11-2522

MOTOR ASSEMBLY

SN: @-UP

1шт.

12

17A-Z11-2521

MOTOR ASSEMBLY

SN: B40001-@

1шт.

13

01245-00616

SCREW

SN: B40001-UP

2шт.

14

01643-70623

WASHER

SN: B40001-UP

2шт.

15

17A-Z11-3611

PLATE, L.H.

SN: B40001-UP

1шт.

16

01245-00825

SCREW

SN: B40001-UP

2шт.

17

01643-70823

WASHER

SN: B40001-UP

2шт.

18

17A-Z11-2570

ARM, WIPER

SN: B40001-UP

1шт.

19

17A-Z11-2581

BLADE, WIPER

SN: B40001-UP

1шт.

20

17A-Z11-3631

POCKET, L.H.

SN: B40001-UP

1шт.

21

01245-00616

SCREW

SN: B40001-UP

4шт.

22

17A-Z11-2813

PLATE, L.H.

SN: B40001-UP

4шт.

23

17A-Z11-3651

COVER

SN: B40001-UP

1шт.

24

01245-00620

SCREW

SN: B40001-UP

4шт.

25

17A-Z11-2812

PLATE, L.H.

SN: B40001-UP

4шт.

26

17A-Z11-3662

HINGE, L.H.

SN: @-UP

1шт.

|26

17A-Z11-3661

HINGE, L.H.

SN: B40001-@

1шт.

27

01010-D1030

BOLT

SN: B40001-UP

18шт.

28

01643-71032

WASHER

SN: B40001-UP

18шт.

29

01640-20816

WASHER

SN: @-UP

4шт.

30

01580-10806

NUT

SN: @-UP

4шт.
