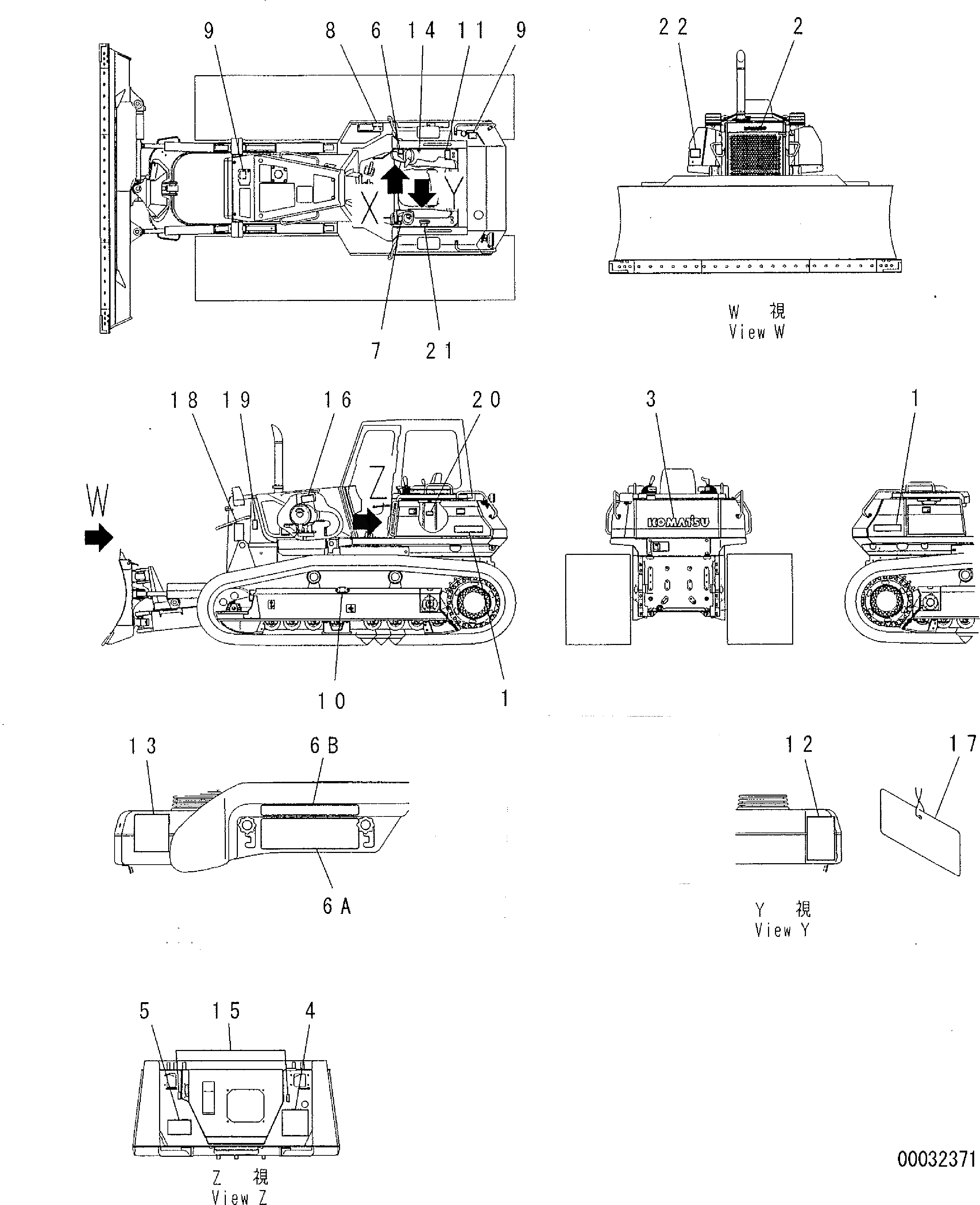

Запчасти Komatsu D61E-12 МАРКИРОВКА (РОССИЯ) (DE) (ДЛЯ СНГ)(№8-) МАРКИРОВКА

1

134-98-61120

PLATE, MARK,D61E

SN: 1168-UP

2шт.

2

09690-B0224

PLATE, MARK,KOMATSU, FRONT

SN: 1168-UP

1шт.

3

09690-C0800

PLATE, MARK,KOMATSU, REAR

SN: 1168-UP

1шт.

4

134-98-61211

OIL CHART

SN: 1170-UP

1шт.

4

134-98-61210

OIL CHART

SN: 1001-1169

1шт.

5

09602-10000

PLATE, NAME,(LIMITED SUPPLY)

SN: 1168-UP

1шт.

5

04418-13060

SCREW

SN: 1168-UP

4шт.

6

14X-98-11250

PLATE, OPERATING,WORK EQUIP.LEVER (ST.TILT D.)

SN: 1168-UP

1шт.

6A

134-54-66190

PLATE,PROTECTION FILM

SN: 1168-UP

1шт.

6B

134-54-66290

PLATE,PROTECTION FILM

SN: 1168-UP

1шт.

7

14X-98-11240

PLATE, OPERATING,STEERING LEVER (C AND B)

SN: 1168-UP

1шт.

8

14X-98-12470

PLATE,PRESSURE TEST

SN: 1168-UP

1шт.

9

09653-A0481

PLATE, SAFETY,CAUTION OIL AND WATER

SN: 1168-UP

2шт.

10

09657-A0881

PLATE, SAFETY,ADJUSTING TRACK TENSION

SN: 1168-UP

2шт.

11

09651-A0641

PLATE, SAFETY,READ OPERATION MANUAL

SN: 1168-UP

1шт.

12

09802-14000

PLATE, SAFETY,SAFETY IN REAR

SN: 1168-UP

1шт.

13

09654-B0641

PLATE, SAFETY,CAUTION AFTER OPERATING

SN: 1168-UP

1шт.

14

17A-98-11180

PLATE,HORN

SN: 1168-UP

1шт.

15

14X-98-11170

PLATE, OPERATING,LOCK

SN: 1168-UP

2шт.

16

09637-40163

PLATE, INSTRUCTION,AIR CLEANER

SN: 1168-UP

1шт.

17

09963-04001

TAG,DO NOT OPERATE

SN: 1168-UP

1шт.

18

09806-B1201

PLATE, SAFETY,KEEP A SAFE DISTANCE

SN: 1168-UP

2шт.

19

09667-A0641

PLATE, SAFETY,REVOLVING OBJECT CAUTION

SN: 1168-UP

2шт.

20

09808-A0881

PLATE, SAFETY,BATTERY CABLE

SN: 1168-UP

1шт.

21

362-54-17320

PLATE, OPERATING,FUEL LEVER

SN: 1168-UP

1шт.

22

134-98-31370

PLATE, CAUTION,MACHINE SLING POSITION

SN: 1168-UP

1шт.
