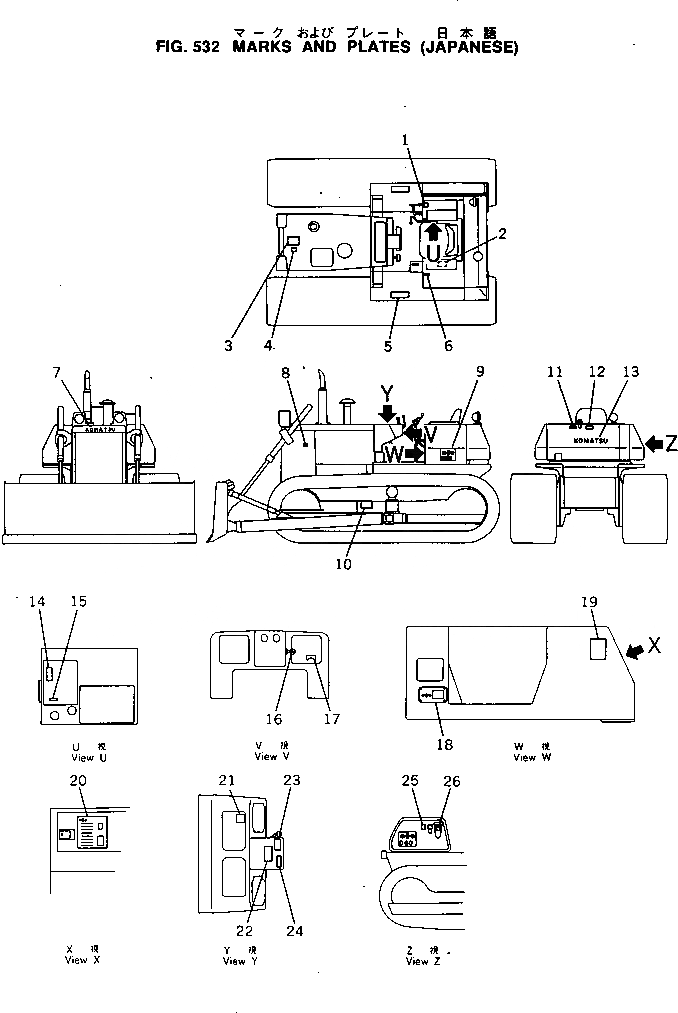

Запчасти Komatsu D60PL-8 МАРКИРОВКА (ЯПОН.) ЧАСТИ КОРПУСА

1

09670-00004

PLATE¤ OPERATING,BLADE (STRAIGHT TILT)

SN: 45001-UP

1шт.

2

09989-03046

BOX,BILL

SN: 45001-UP

1шт.

3

09650-01101

PLATE¤ INSTRUCTION,RADIATOR WATER LEVEL

SN: 45001-UP

1шт.

4

09668-00100

PLATE¤ SAFETY,RADIATOR CAP

SN: 45001-UP

1шт.

5

120-54-32451

SHEET,ANTISKID

SN: 45001-UP

2шт.

6

09687-00070

PLATE¤ OPERATING,MAIN CLUTCH

SN: 45001-UP

1шт.

7

09690-00500

PLATE¤ MARK,KOMATSU

SN: 45001-UP

1шт.

8

09667-00100

PLATE¤ SAFETY,ENGINE COVER

SN: 45001-UP

2шт.

9

09691-05604

PLATE¤ MARK (D60P)

SN: 45001-UP

2шт.

|9

09691-41608

PLATE¤ MARK (D60PL)

SN: 45001-UP

2шт.

10

09657-00110

PLATE¤ SAFETY,TRACK SHOE ADJUSTING

SN: 45001-UP

2шт.

11

09652-01101

PLATE¤ CAUTION,FUEL TANK

SN: 45001-UP

1шт.

12

09656-01080

PLATE¤ INSTRUCTION,FUEL TANK STRAINER

SN: 45001-UP

1шт.

13

09690-00630

PLATE¤ MARK,KOMATSU

SN: 45001-UP

2шт.

14

120-98-31121

PLATE¤ OPERATING,BLADE LOCK (STRAIGHT TILT)

SN: 45001-UP

1шт.

15

09685-00004

PLATE¤ OPERATING,LOCK LEVER

SN: 45001-UP

1шт.

16

08670-50001

INDICATOR,DUST

SN: 45001-UP

1шт.

17

09683-01060

PLATE¤ OPERATING,STARTING SWITCH

SN: 45001-UP

1шт.

18

09602-01635

PLATE¤ NAME,(LIMITED SUPPLY)

SN: 45001-UP

1шт.

|18

04418-13060

SCREW

SN: 45001-UP

4шт.

19

144-54-51820

PLATE¤ DATA (D60P)

SN: 45001-UP

1шт.

|19

14F-54-21410

PLATE¤ DATA (D60PL)

SN: 45001-UP

1шт.

20

144-54-51510

CHART¤ OIL

SN: 45001-UP

1шт.

21

09674-00071

PLATE¤ OPERATING,TRANSMISSION CONTROL LEVER

SN: 45001-UP

1шт.

22

09654-00100

PLATE¤ SAFETY,STARTING AND LEAVING SEAT

SN: 45001-UP

1шт.

23

09173-00100

PLATE¤ SAFETY,INSPECTION AND MAINTENANCE

SN: 45001-UP

1шт.

24

09651-00100

PLATE¤ SAFETY,BEFORE OPERATING MACHINE

SN: 45001-UP

1шт.

25

09653-00100

PLATE¤ SAFETY,HYDRAULIC TANK CAP

SN: 45001-UP

1шт.

26

09655-01120

PLATE¤ INSTRUCTION,OIL FILTER

SN: 45001-UP

1шт.
