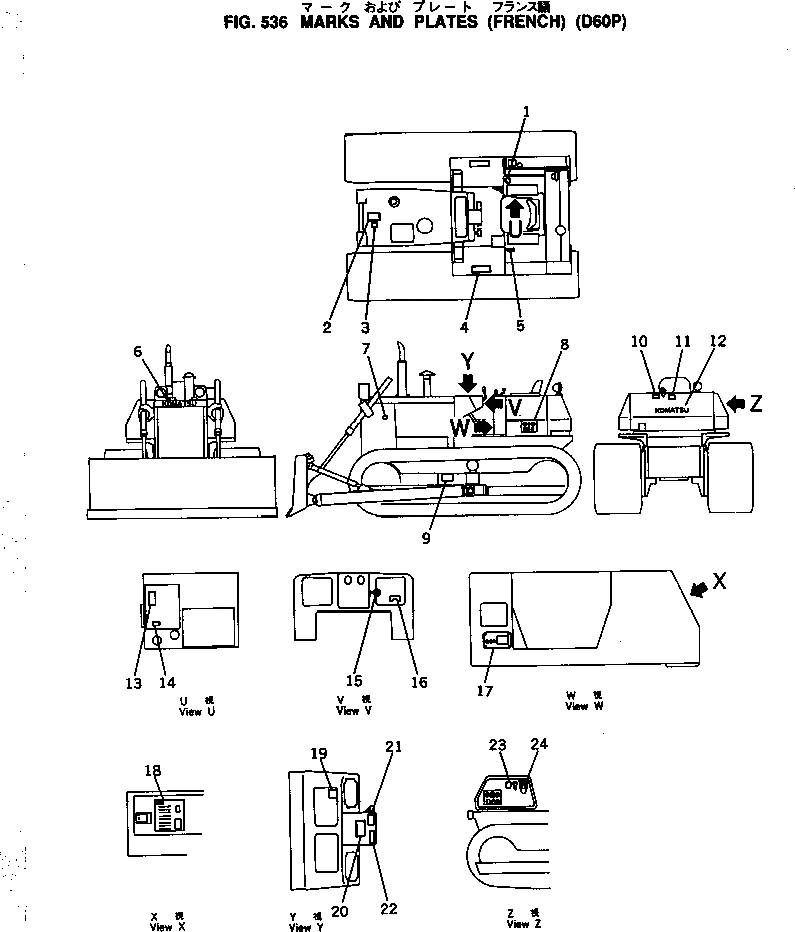

Запчасти Komatsu D60P-8 МАРКИРОВКА (ФРАНЦИЯ) ЧАСТИ КОРПУСА

1

09670-00004

PLATE, OPERATING,BLADE (STRAIGHT TILT)

SN: 45001-UP

1шт.

2

09650-50101

PLATE, INSTRUCTION,RADIATOR WATER LEVEL

SN: 45001-UP

1шт.

3

09668-05000

PLATE, SAFETY,RADIATOR CAP

SN: 45001-UP

1шт.

4

120-54-32451

SHEET,ANTISKID

SN: 45001-UP

2шт.

5

09687-50070

PLATE, OPERATING,MAIN CLUTCH

SN: 45001-UP

1шт.

6

09690-00500

PLATE, MARK,KOMATSU

SN: 45001-UP

1шт.

7

09667-05000

PLATE, SAFETY,ENGINE COVER

SN: 45001-UP

2шт.

8

09691-05604

PLATE, MARK,D60P

SN: 45001-UP

2шт.

9

09657-05011

PLATE, SAFETY,TRACK SHOE ADJUSTING

SN: 45001-UP

2шт.

10

09652-51101

PLATE, CAUTION,FUEL TANK

SN: 45001-UP

1шт.

11

09656-51080

PLATE, INSTRUCTION,FUEL TANK STRAINER

SN: 45001-UP

1шт.

12

09690-00630

PLATE, MARK,KOMATSU

SN: 45001-UP

1шт.

13

12F-54-36321

PLATE, OPERATING,BLADE LOCK (STRAIGHT TILT)

SN: 45001-UP

1шт.

14

09685-00004

PLATE, OPERATING,LOCK LEVER

SN: 45001-UP

1шт.

15

08670-50005

INDICATOR,DUST

SN: 45001-UP

1шт.

16

09683-51060

PLATE, OPERATING,STARTING SWITCH

SN: 45001-UP

1шт.

17

09602-52635

PLATE, NAME,(LIMITED SUPPLY)

SN: 45001-UP

1шт.

17

04418-13060

SCREW

SN: 45001-UP

4шт.

18

144-54-51530

CHART, OIL

SN: 45001-UP

1шт.

19

09674-50071

PLATE, OPERATING,TRANSMISSION CONTROL LEVER

SN: 45001-UP

1шт.

20

09654-05000

PLATE, SAFETY,BEFORE AND AFTER OPERATION

SN: 45001-UP

1шт.

21

09173-05000

PLATE, SAFETY,INSPECTION AND MAINTENANCE

SN: 45001-UP

1шт.

22

09651-05000

PLATE, SAFETY,BEFORE OPERATING MACHINE

SN: 45001-UP

1шт.

23

09653-05000

PLATE, SAFETY,HYDRAULIC TANK CAP

SN: 45001-UP

1шт.

24

09655-51120

PLATE, INSTRUCTION,OIL FILTER

SN: 45001-UP

1шт.
