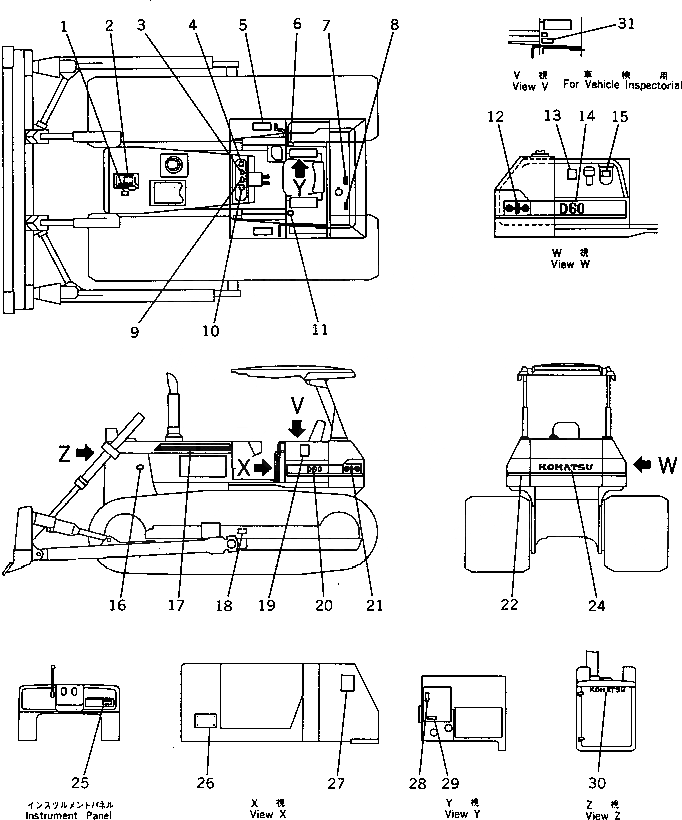

Запчасти Komatsu D60P-11D МАРКИРОВКА (ЯПОН.) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09668-00100

PLATE¤ SAFETY,KOMATSU

SN: 50001-UP

1шт.

2

09650-01101

PLATE¤ INSTRUCTION,RADIATOR

SN: 50001-UP

1шт.

3

09654-00100

PLATE¤ SAFETY,STARTING AND AFTER OPERATING

SN: 50001-UP

1шт.

4

09674-00005

PLATE¤ OPERATING,TRANSMISSION CONTROL LEVER

SN: 50001-UP

1шт.

5

120-54-32451

SHEET,ANTISKID

SN: 50001-UP

2шт.

6

12F-54-45310

PLATE¤ OPERATING,TILT-PITCH CONTROL LEVER

SN: 50001-UP

1шт.

|6

09670-00004

PLATE¤ OPERATING,TILT CONTROL LEVER

SN: 50001-UP

1шт.

7

09656-01080

PLATE¤ INSTRUCTION,FUEL TANK STRAINER

SN: 50001-UP

1шт.

8

09652-01101

PLATE¤ CAUTION,FUEL TANK WATER DRAIN

SN: 50001-UP

1шт.

9

09651-00100

PLATE¤ SAFETY,BEFORE OPERATING

SN: 50001-UP

1шт.

10

09173-00100

PLATE¤ SAFETY

SN: 50001-UP

1шт.

11

09687-32570

PLATE¤ OPERATING,MAIN CLUTCH (F5-R4)

SN: 50001-UP

1шт.

|11

14F-Y56-1610

PLATE¤ OPERATING,(F4-R3) (SUPPER LOW SPEED)

SN: 50001-UP

1шт.

12

134-54-35110

PLATE¤ MARK,SYMBOL

SN: 50001-UP

1шт.

13

09653-00100

PLATE¤ SAFETY,HYDRAULIC TANK

SN: 50001-UP

1шт.

14

14F-54-84121

PLATE¤ MARK,D60P¤ R.H.

SN: 50676-UP

1шт.

|14

14F-54-84120

PLATE¤ MARK,D60P¤ R.H.

SN: 50001-50675

1шт.

15

09655-01120

PLATE¤ INSTRUCTION,HYDRAULIC FILTER

SN: 50001-UP

1шт.

16

09667-00100

PLATE¤ SAFETY,ENGINE ROOM

SN: 50001-UP

2шт.

17

15B-54-15151

PLATE¤ MARK,LINE¤ L.H.

SN: 50676-UP

1шт.

|17

15B-54-15150

PLATE¤ MARK,LINE¤ L.H.

SN: 50001-50675

1шт.

|17

15B-54-15141

PLATE¤ MARK,LINE¤ R.H.

SN: 50676-UP

1шт.

|17

15B-54-15140

PLATE¤ MARK,LINE¤ R.H.

SN: 50001-50675

1шт.

18

09657-00110

PLATE¤ SAFETY,TRACK SHOE ADJUSTING

SN: 50001-UP

2шт.

19

14F-54-84130

CHART,OIL

SN: 50001-UP

1шт.

20

14F-54-84111

PLATE¤ MARK,D60P¤ L.H.

SN: 50676-UP

1шт.

|20

14F-54-84110

PLATE¤ MARK,D60P¤ L.H.

SN: 50001-50675

1шт.

21

134-54-35110

PLATE¤ MARK,SYMBOL

SN: 50001-UP

1шт.

22

144-54-84121

PLATE¤ MARK,WHITE LINE

SN: 50676-UP

3шт.

|22

144-54-84120

PLATE¤ MARK,WHITE LINE

SN: 50001-50675

3шт.

24

09690-50800

PLATE¤ MARK,KOMATSU

SN: 50001-UP

1шт.

25

09683-01060

PLATE¤ OPERATING,STARTING SWITCH

SN: 50001-UP

1шт.

26

09602-01635

PLATE¤ NAME

SN: 50001-UP

1шт.

|26

04418-13060

SCREW

SN: 50001-UP

4шт.

27

14F-54-84140

PLATE

SN: 50001-UP

1шт.

28

09685-00005

PLATE¤ OPERATING,WORK EQUIPMENT

SN: 50001-UP

1шт.

29

09685-00004

PLATE¤ OPERATING,BRAKE LOCK LEVER

SN: 50001-UP

1шт.

30

09690-50500

PLATE¤ MARK,KOMATSU

SN: 50001-UP

1шт.

31

130-A60-2120

PLATE¤ CAUTION,(FOR VEHICLE INSPECTORIAL)

SN: 50001-UP

1шт.
