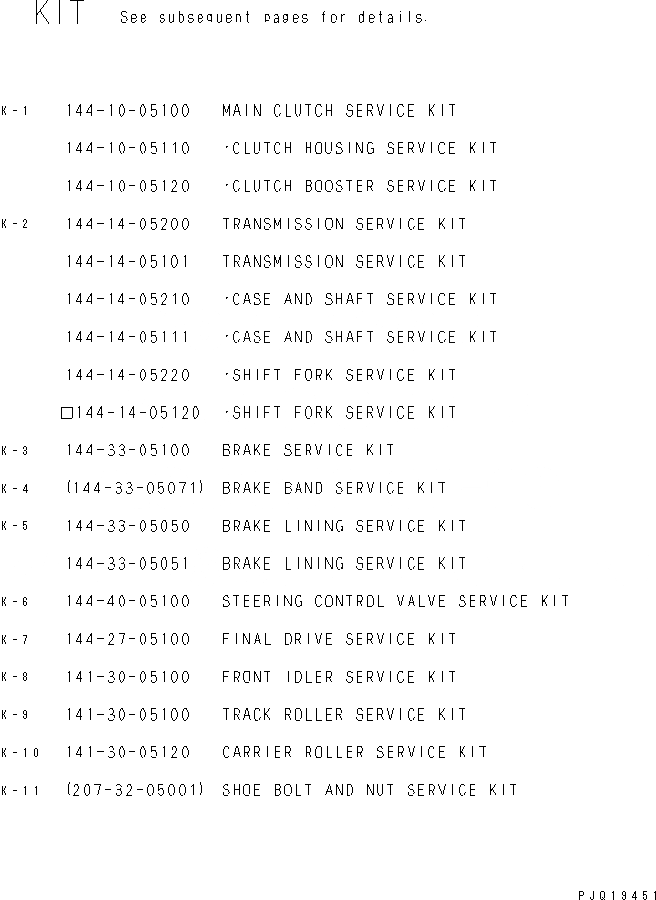

Запчасти Komatsu D60F-8A РЕМ. КОМПЛЕКТЫ ОПЦИОННЫЕ КОМПОНЕНТЫ¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

K-1

144-10-05100

SERVICE KIT,MAIN CLUTCH

SN: 45001-UP

1шт.

|$1

144-10-05110

SERVICE KIT,CLUTCH HOUSING AND PLATE

SN: 45001-UP

1шт.

|$2

141-10-32120

GASKET,HOUSING

SN: 45001-UP

1шт.

|$3

07000-03032

O-RING,MAGNETIC PLUG

SN: 45001-UP

1шт.

|$4

07012-10085

SEAL,OIL, HOUSING

SN: 45001-UP

1шт.

|$5

07000-03025

O-RING,TUBE

SN: 45001-UP

2шт.

|$6

07000-03048

O-RING,TUBE

SN: 45001-UP

1шт.

|$7

07000-02080

O-RING,COVER

SN: 45001-UP

1шт.

|$8

07000-02080

O-RING,COVER

SN: 45001-UP

1шт.

|$9

141-10-32143

GASKET,COVER

SN: 45001-UP

1шт.

|$10

07000-03092

O-RING,FLANGE

SN: 45001-UP

1шт.

|$11

170-10-16490

GASKET,FLANGE

SN: 45001-UP

1шт.

|$12

04050-02025

PIN,COTTER, SCREEN

SN: 45001-UP

1шт.

|$13

07002-02434

O-RING,OIL LEVEL GAUGE

SN: 45001-UP

2шт.

|$14

07000-03025

O-RING

SN: 45001-UP

1шт.

|$15

141-10-31220

PLATE,LOCK, RETAINER

SN: 45001-UP

1шт.

|$16

150-10-11180

WASHER,GUIDE

SN: 45001-UP

3шт.

|$17

04050-04030

PIN,COTTER, BUSHING

SN: 45001-UP

10шт.

|$18

04050-03040

PIN,COTTER, LINK PIN

SN: 45001-UP

5шт.

|$19

04050-04035

PIN,COTTER, BLOCK AND COLLAR

SN: 45001-UP

2шт.

|$20

07000-05055

O-RING,COUPLING HOLDER

SN: 45001-UP

1шт.

|$21

04050-02022

PIN,COTTER, INERTIA BRAKE

SN: 45001-UP

1шт.

|$22

04050-02012

PIN,COTTER, INERTIA BRAKE

SN: 45001-UP

1шт.

|$23

144-10-05120

SERVICE KIT,CLUTCH BOOSTER

SN: 45001-UP

1шт.

|$24

141-10-34120

GASKET,HOUSING

SN: 45001-UP

1шт.

|$25

170-10-15130

O-RING,HOUSING

SN: 45001-UP

1шт.

|$26

141-10-34150

GASKET,BRACKET

SN: 45001-UP

1шт.

|$27

07017-00022

SEAL,OIL, BRACKET

SN: 45001-UP

1шт.

|$28

07000-03040

O-RING,COVER

SN: 45001-UP

1шт.

|$29

170-10-15211

WASHER,LOCK, COUPLING

SN: 45001-UP

1шт.

|$30

04050-03020

PIN,COTTER, LINK

SN: 45001-UP

2шт.

|$31

170-10-15330

O-RING,VALVE SEAT

SN: 45001-UP

1шт.

|$32

170-10-91130

PACKING,VALVE SEAT

SN: 45001-UP

1шт.

|$33

07000-02014

O-RING,PLUG

SN: 45001-UP

1шт.

|$34

06122-02204

SEAL,BEARING, BRACKET

SN: 45001-UP

4шт.

|$35

04050-02018

PIN,COTTER, ROD

SN: 45001-UP

1шт.

K-2

144-14-05200

SERVICE KIT,TRANSMISSION

SN: 45370-UP

1шт.

|$37

0

SERVICE KIT,TRANSMISSION

SN: 45001-45369

1шт.

|$38

144-14-05210

SERVICE KIT,CASE AND SHAFT

SN: 45370-UP

1шт.

|$39

0

SERVICE KIT,CASE AND SHAFT

SN: 45001-45369

1шт.

|$40

07002-02434

O-RING,PLUG

SN: 45001-UP

1шт.

|$41

07000-05440

O-RING,CASE

SN: 45001-UP

1шт.

|$42

07000-03025

O-RING,TUBE

SN: 45001-UP

1шт.

|$43

07000-02140

O-RING,COVER

SN: 45001-UP

1шт.

|$44

144-14-54610

O-RING,CAGE

SN: 45001-UP

1шт.

|$45

07000-05165

O-RING,CAGE

SN: 45001-UP

1шт.

|$46

07012-10085

SEAL,OIL, COUPLING

SN: 45001-UP

1шт.

|$47

07000-05048

O-RING,PLATE

SN: 45001-UP

1шт.

|$48

141-14-34250

PLATE,LOCK, NUT

SN: 45001-UP

1шт.

|$49

144-14-05011

SHIM KIT,COVER

SN: 45001-UP

1шт.

|$50

0

SHIM, 1.0MM

SN: 45001-UP

2шт.

|$51

0

SHIM, 0.2MM

SN: 45001-UP

7шт.

|$52

0

SHIM, 0.3MM

SN: 45001-UP

2шт.

|$53

144-14-06011

SHIM KIT,CAGE

SN: 45001-UP

1шт.

|$54

0

SHIM, 0.2MM

SN: 45001-UP

3шт.

|$55

0

SHIM, 0.3MM

SN: 45001-UP

2шт.

|$56

141-14-35412

GASKET,COVER

SN: 45370-UP

1шт.

|$57

0

GASKET,COVER

SN: 45001-45369

1шт.

|$58

141-14-35390

PLATE,LOCK, HOLDER

SN: 45001-UP

1шт.

|$59

141-14-35390

PLATE,LOCK, HOLDER

SN: 45001-UP

1шт.

|$60

141-14-36312

GASKET,COVER

SN: 45370-UP

1шт.

|$61

0

GASKET,COVER

SN: 45001-45369

1шт.

|$62

141-14-35390

PLATE,LOCK

SN: 45001-UP

1шт.

|$63

144-14-05220

SERVICE KIT,SHIFT FORK

SN: 45370-UP

1шт.

|$64

0

SERVICE KIT,SHIFT FORK

SN: 45001-45369

1шт.

|$65

04059-01625

WIRE,LOCK, FORK SET BOLT

SN: 45001-UP

7шт.

|$66

141-14-32322

GASKET,CASE

SN: 45370-UP

1шт.

|$67

0

GASKET,CASE

SN: 45001-45369

1шт.

|$68

141-14-32351

GASKET,COVER

SN: 45370-UP

2шт.

|$69

0

GASKET,COVER

SN: 45001-45369

2шт.

|$70

141-14-32522

GASKET,COVER

SN: 45370-UP

1шт.

|$71

0

GASKET,COVER

SN: 45001-45369

1шт.

|$72

07012-00025

SEAL,OIL, SHAFT

SN: 45001-UP

1шт.

|$73

07012-00022

SEAL,OIL, SHAFT

SN: 45001-UP

1шт.

|$74

04059-01025

WIRE,LOCK, LEVER SET BOLT

SN: 45001-UP

1шт.

|$75

141-14-32541

GASKET,COVER

SN: 45370-UP

1шт.

|$76

0

GASKET,COVER

SN: 45001-45369

1шт.

|$77

141-14-32434

GASKET,PLATE

SN: 45370-UP

2шт.

|$78

0

GASKET,PLATE

SN: 45001-45369

2шт.

|$79

07000-03048

O-RING,SHAFT

SN: 45001-UP

1шт.

|$80

07011-00020

SEAL,OIL, FLANGE

SN: 45001-UP

1шт.

|$81

04050-01012

PIN,COTTER, SHAFT

SN: 45001-UP

1шт.

|$82

07000-02100

O-RING,ADAPTER

SN: 45001-UP

1шт.

|$83

07000-02015

O-RING,SHAFT

SN: 45001-UP

2шт.

|$84

04050-05040

PIN,COTTER, LEVER

SN: 45001-UP

1шт.

K-3

144-33-05100

SERVICE KIT,BRAKE

SN: 45001-UP

2шт.

|$86

144-33-21340

GASKET,COVER

SN: 45001-UP

1шт.

|$87

144-33-21140

GASKET,COVER

SN: 45001-UP

1шт.

|$88

144-33-21160

GASKET,COVER

SN: 45001-UP

1шт.

|$89

04050-24028

PIN,COTTER, LEVER PIN

SN: 45001-UP

1шт.

|$90

07012-00035

SEAL,OIL, SHAFT

SN: 45001-UP

1шт.

|$91

04050-24028

PIN,COTTER, ROD PIN

SN: 45001-UP

1шт.

|$92

04050-24028

PIN,COTTER, PLATE PIN

SN: 45001-UP

2шт.

|$93

04050-24028

PIN,COTTER, LEVER PIN

SN: 45001-UP

2шт.

|$94

07000-03022

O-RING,SHAFT

SN: 45001-UP

1шт.

|$95

07000-03025

O-RING,SHAFT

SN: 45001-UP

1шт.

K-4

144-33-05071

SERVICE KIT,BRAKE BAND

SN: 45001-45161

2шт.

|$97

144-33-51700

BRAKE BAND ASS'Y

SN: 45001-45161

1шт.

|$98

144-33-51230

HANGER

SN: 45001-45161

1шт.

|$99

144-33-51220

PLATE

SN: 45001-45161

1шт.

K-5

144-33-05050

SERVICE KIT,BRAKE LINING

SN: 45001-45161

2шт.

|$101

144-33-05051

SERVICE KIT,BRAKE LINING

SN: 45162-UP

2шт.

|$102

144-33-51610

LINING,BRAKE

SN: 45001-UP

2шт.

|$103

144-33-51620

LINING,BRAKE

SN: 45001-45161

2шт.

|$104

144-33-51610

LINING,BRAKE

SN: 45162-UP

2шт.

|$105

144-33-51630

LINING,BRAKE

SN: 45001-UP

6шт.

|$106

04412-00512

RIVET,BRAKE LINING

SN: 45001-45161

60шт.

|$107

04412-00512

RIVET,BRAKE LINING

SN: 45162-UP

64шт.

K-6

144-40-05100

SERVICE KIT,STEERING CONTROL VALVE

SN: 45001-UP

1шт.

|$109

04050-14025

PIN,COTTER, SHAFT

SN: 45001-UP

2шт.

|$110

04050-11212

PIN,COTTER, SHAFT

SN: 45001-UP

2шт.

|$111

07002-03034

O-RING,PLUG

SN: 45001-UP

2шт.

|$112

04050-11212

PIN,COTTER, SHAFT

SN: 45001-UP

2шт.

|$113

01650-00808

WASHER,PLATE BOLT

SN: 45001-UP

1шт.

|$114

07000-02011

O-RING,TUBE

SN: 45001-UP

4шт.

|$115

07000-02015

O-RING,VALVE BODY

SN: 45001-UP

1шт.

|$116

175-40-31270

SEAL,OIL, LEVER

SN: 45001-UP

2шт.

|$117

130-21-12330

LOCK,LEVER BOLT

SN: 45001-UP

2шт.

|$118

144-40-22220

GASKET,VALVE BODY

SN: 45001-UP

2шт.

K-7

144-27-05100

SERVICE KIT,FINAL DRIVE

SN: 45001-UP

2шт.

|$120

141-27-31240

GASKET,CASE

SN: 45001-UP

1шт.

|$121

150-27-00270

O-RING ASS'Y,SEAL RING

SN: 45001-UP

1шт.

|$122

0

O-RING

SN: 45001-UP

2шт.

|$123

07000-05345

O-RING,GUARD

SN: 45001-UP

1шт.

|$124

07000-05270

O-RING,NUT

SN: 45001-UP

1шт.

|$125

07000-05230

O-RING,NUT

SN: 45001-UP

1шт.

|$126

144-27-11150

PLATE,LOCK

SN: 45001-UP

2шт.

|$127

130-27-51140

LOCK,LOCK, FLANGE

SN: 45001-UP

1шт.

|$128

145-27-11240

GASKET,FLANGE

SN: 45001-UP

1шт.

|$129

07013-00090

SEAL,OIL, CAGE

SN: 45001-UP

1шт.

|$130

07000-05165

O-RING,CAGE

SN: 45001-UP

1шт.

|$131

135-27-21270

WASHER,LOCK, HOLDER

SN: 45001-UP

1шт.

|$132

141-27-31270

LOCK,GEAR

SN: 45001-UP

6шт.

|$133

07000-05170

O-RING,RETAINER

SN: 45001-UP

1шт.

|$134

150-27-00190

O-RING ASS'Y,SEAL RING

SN: 45001-UP

1шт.

|$135

0

RING,SEAL

SN: 45001-UP

2шт.

|$136

154-27-15240

PLATE,LOCK, NUT

SN: 45001-UP

1шт.

|$137

154-27-15250

PLATE,LOCK, NUT

SN: 45001-UP

1шт.

|$138

07000-02140

O-RING,CAP

SN: 45001-UP

1шт.

K-8

141-30-05100

SERVICE KIT,FRONT IDLER

SN: 45001-UP

2шт.

|$140

07000-03052

O-RING,BRACKET

SN: 45001-UP

2шт.

|$141

07000-05105

O-RING,BUSHING

SN: 45001-UP

2шт.

|$142

141-30-00630

O-RING ASS'Y,SEAL RING

SN: 45001-UP

2шт.

|$143

0

O-RING

SN: 45001-UP

2шт.

K-9

141-30-05100

SERVICE KIT,TRACK ROLLER

SN: 45001-UP

12шт.

|$145

07000-05105

O-RING,BUSHING

SN: 45001-UP

2шт.

|$146

141-30-00630

O-RING ASS'Y,SEAL RING

SN: 45001-UP

2шт.

|$147

0

O-RING

SN: 45001-UP

2шт.

|$148

07000-03052

O-RING,COLLAR

SN: 45001-UP

2шт.

K-10

141-30-05120

SERVICE KIT,CARRIER ROLLER

SN: 45001-UP

4шт.

|$150

07000-03085

O-RING,COVER

SN: 45001-UP

1шт.

|$151

141-30-00630

O-RING ASS'Y,SEAL RING

SN: 45001-UP

1шт.

|$152

0

O-RING

SN: 45001-UP

2шт.

|$153

07000-03120

O-RING,SEAL

SN: 45001-UP

1шт.

|$154

07000-03052

O-RING,COLLAR

SN: 45001-UP

1шт.

K-11

207-32-05001

SHOE BOLT AND NUT K.

SN: 45001-UP

1шт.

|$156

207-32-11310

BOLT,SHOE

SN: 45001-UP

30шт.

|$157

154-32-21330

NUT,SHOE

SN: 45001-UP

30шт.
