Артикул
Название
Примечание
Количество
|$0
6151-71-1740
INJECTION PUMP A.
SN: 14874-UP
1шт.
|$$2

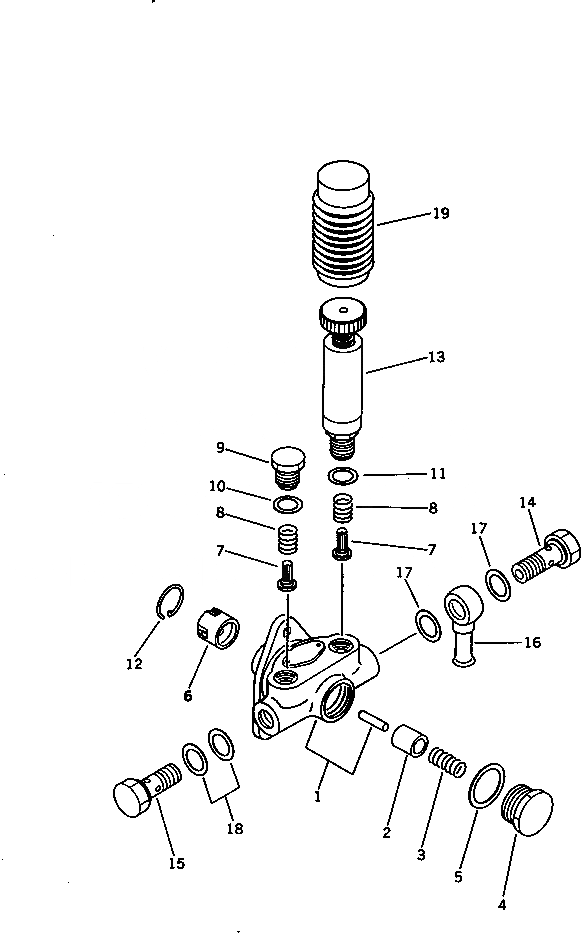

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.0452,0462,0472 AND 0482.
-1шт.
|$$3
THE ZEXEL PART NUMBER IS THAT DK IS REMOVED FROM KOMATSU PART NUMBER LISTED BELOW.
-1шт.
|$3
DK105217-1490
FEED PUMP ASS'Y
SN: 14874-UP
1шт.
1
DK152004-1620
HOUSING
SN: 14874-UP
1шт.
2
DK152100-1120
PISTON
SN: 14874-UP
1шт.
4
DK152105-0200
PLUG
SN: 14874-UP
1шт.
6
DK152111-4020
TAPPET
SN: 14874-UP
1шт.
7
DK152115-0500
VALVE
SN: 14874-UP
2шт.
9
DK152117-0400
PLUG
SN: 14874-UP
1шт.
12
DK152121-0200
RING,SNAP
SN: 14874-UP
1шт.
14
DK152300-5920
BOLT,EYE
SN: 14874-UP
1шт.
16
DK029911-4030
EYE
SN: 14874-UP
1шт.
|$0
6151-71-1740
INJECTION PUMP A.
SN: 14874-UP
1шт.
|$$2
THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.0452,0462,0472 AND 0482.
-1шт.
|$$3
THE ZEXEL PART NUMBER IS THAT DK IS REMOVED FROM KOMATSU PART NUMBER LISTED BELOW.
-1шт.
|$3
DK105217-1490
FEED PUMP ASS'Y
SN: 14874-UP
1шт.
1
DK152004-1620
HOUSING
SN: 14874-UP
1шт.
2
DK152100-1120
PISTON
SN: 14874-UP
1шт.
4
DK152105-0200
PLUG
SN: 14874-UP
1шт.
6
DK152111-4020
TAPPET
SN: 14874-UP
1шт.
7
DK152115-0500
VALVE
SN: 14874-UP
2шт.
9
DK152117-0400
PLUG
SN: 14874-UP
1шт.
12
DK152121-0200
RING,SNAP
SN: 14874-UP
1шт.
14
DK152300-5920
BOLT,EYE
SN: 14874-UP
1шт.
16
DK029911-4030
EYE
SN: 14874-UP
1шт.
Выбрано товаров: 46
