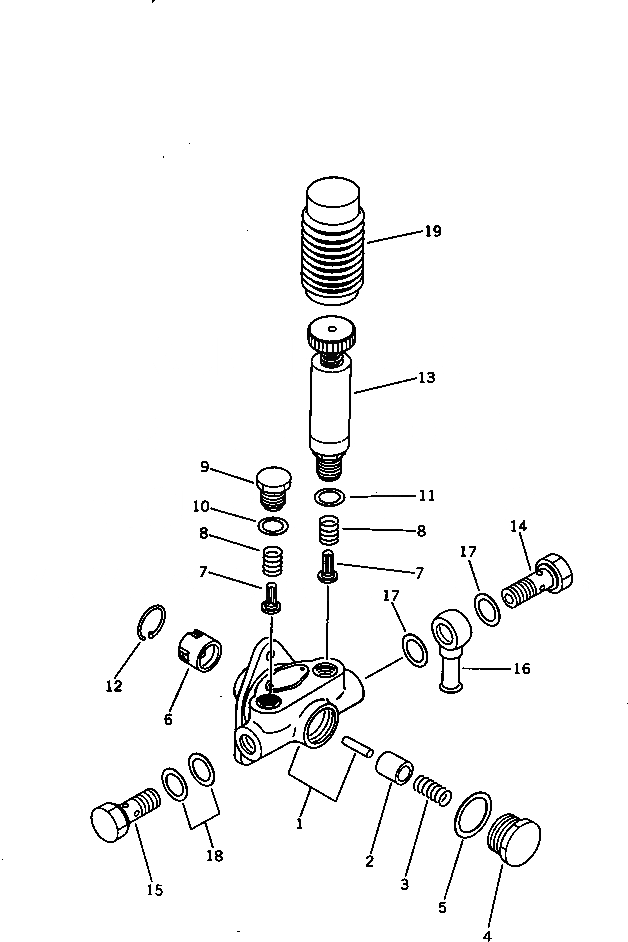

Запчасти Komatsu S6D125-1F ТОПЛ. НАСОС (ПОДКАЧИВАЮЩ. НАСОС) (ВНУТР. ЧАСТИ) ТОПЛИВН. СИСТЕМА

|$0

6151-71-1722

INJECTION PUMP A.

SN: 12583-UP

1шт.

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.0451A,0461,0471A AND 0481.

-1шт.

|$2

6151-71-1721

INJECTION PUMP A.

SN: 10001-12582

1шт.

|$$4

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.0451,0461,0471 AND 0481.

-1шт.

|$$5

THE ZEXEL PART NUMBER IS THAT DK IS REMOVED FROM KOMATSU PART NUMBER LISTED BELOW.

-1шт.

|$5

DK105217-1490

FEED PUMP ASS'Y

SN: 10001-UP

1шт.

1

DK152004-1620

HOUSING

SN: 10001-UP

1шт.

2

DK152100-1120

PISTON

SN: 10001-UP

1шт.

3

DK152102-1600

SPRING

SN: 10001-UP

1шт.

4

DK152105-0200

PLUG

SN: 10001-UP

1шт.

5

DK029332-6030

GASKET

SN: 10001-UP

1шт.

6

DK152111-4020

TAPPET

SN: 10001-UP

1шт.

7

DK152115-0500

VALVE

SN: 10001-UP

2шт.

8

DK152116-0200

SPRING

SN: 10001-UP

2шт.

9

DK152117-0400

PLUG

SN: 10001-UP

1шт.

10

DK029631-6060

O-RING

SN: 10001-UP

1шт.

11

DK029331-6030

GASKET

SN: 10001-UP

1шт.

12

DK152121-0200

RING,SNAP

SN: 10001-UP

1шт.

13

DK152200-5320

PUMP,PRIMING

SN: 10001-UP

1шт.

14

DK152300-5920

BOLT,EYE

SN: 10001-UP

1шт.

15

DK029731-4680

BOLT,EYE

SN: 10001-UP

1шт.

16

DK029911-4030

EYE

SN: 10001-UP

1шт.

17

DK029341-4130

GASKET

SN: 10001-UP

2шт.

18

DK029341-4130

GASKET

SN: 10001-UP

2шт.

19

DK152320-0100

COVER

SN: 10001-UP

1шт.
