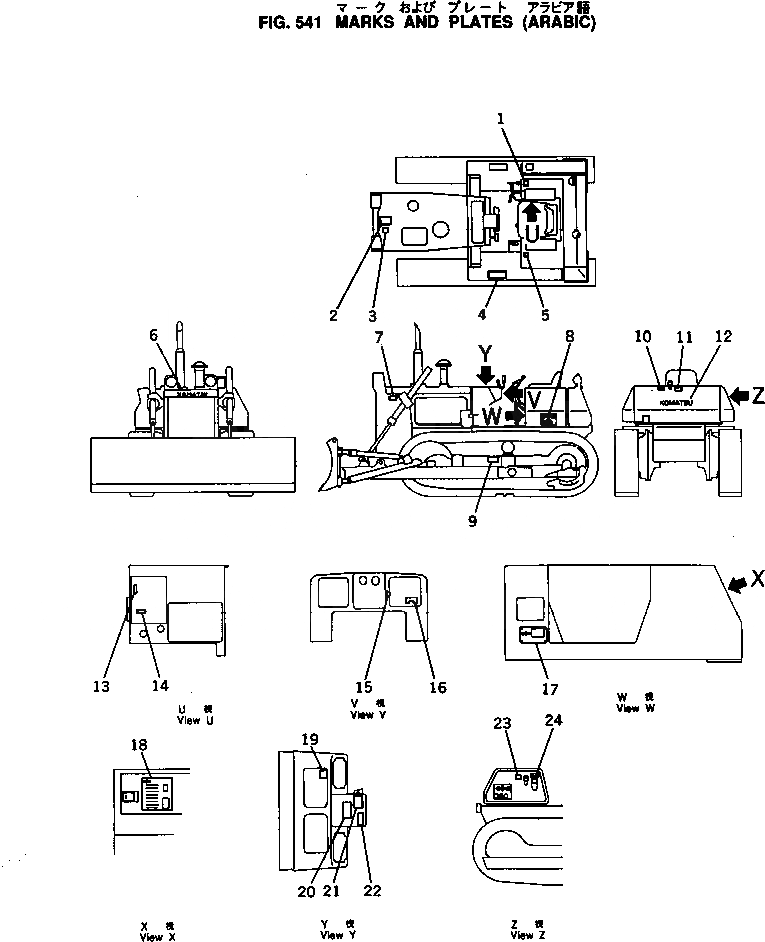

Запчасти Komatsu D60A-8 МАРКИРОВКА (АРАБСК.) ЧАСТИ КОРПУСА

1

09670-00001

PLATE, OPERATING,BLADE CONTROL LEVER(FOR ANGLE

SN: 45001-UP

1шт.

2

09650-02101

PLATE, INSTRUCTION,RADIATOR WATER LEVEL

SN: 45001-UP

1шт.

3

09668-00200

PLATE, SAFETY,RADIATOR CAP

SN: 45001-UP

1шт.

4

120-54-32451

SHEET,ANTISKID

SN: 45001-UP

2шт.

5

09687-02070

PLATE, OPERATING,MAIN CLUTCH

SN: 45001-UP

1шт.

6

09690-00500

PLATE, MARK,KOMATSU

SN: 45001-UP

1шт.

7

09667-00200

PLATE, SAFETY,ENGINE COVER

SN: 45001-UP

2шт.

8

09691-05602

PLATE, MARK,KOMATSU SYMBOL AND D60A

SN: 45001-UP

2шт.

9

09657-00211

PLATE, SAFETY,TRACK SHOE ADJUSTING

SN: 45001-UP

2шт.

10

09652-02101

PLATE, CAUTION,FUEL TANK

SN: 45001-UP

1шт.

11

09656-02080

PLATE, INSTRUCTION,FUEL TANK STRAINER

SN: 45001-UP

1шт.

12

09690-80630

PLATE, MARK,KOMATSU

SN: 45001-UP

1шт.

13

09685-00001

PLATE, OPERATING,CONTROL LOCK LEVER(FOR ANGLE D

SN: 45001-UP

1шт.

14

09685-00004

PLATE, OPERATING,LOCK LEVER

SN: 45001-UP

1шт.

15

08670-90005

INDICATOR,DUST

SN: 45001-UP

1шт.

16

09683-02060

PLATE, OPERATING,STARTING SWITCH

SN: 45001-UP

1шт.

17

144-54-51640

PLATE,(LIMITED SUPPLY)

SN: 45001-UP

1шт.

17

04418-13060

SCREW

SN: 45001-UP

4шт.

18

144-54-51560

PLATE,OIL CHART

SN: 45001-UP

1шт.

19

09674-02071

PLATE, OPERATING,TRANSMISSION CONTROL LEVER

SN: 45001-UP

1шт.

20

09654-00200

PLATE, SAFETY,STARTING AND LEAVING SEAT

SN: 45001-UP

1шт.

21

09173-00200

PLATE, SAFETY,INSPECTION AND MAINTENANCE

SN: 45001-UP

1шт.

22

09651-00200

PLATE, SAFETY,BEFORE OPERATING MACHINE

SN: 45001-UP

1шт.

23

09653-02000

PLATE, SAFETY,HYDRAULIC TANK

SN: 45001-UP

1шт.

24

09655-02120

PLATE, INSTRUCTION,OIL FILTER

SN: 45001-UP

1шт.
