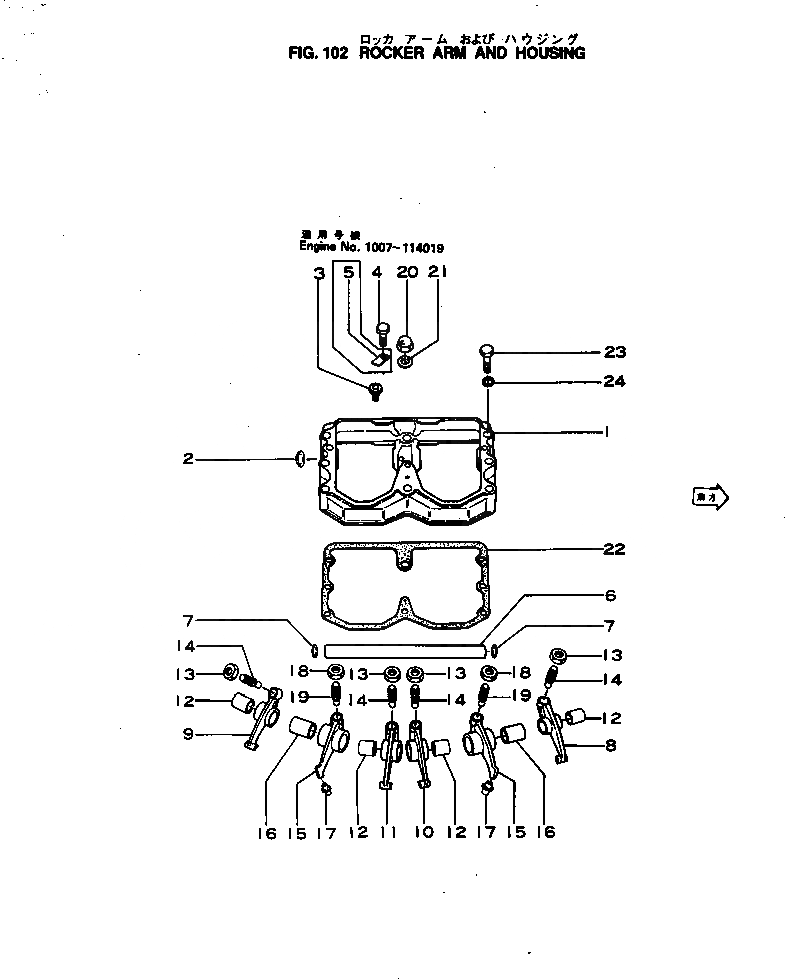

Запчасти Komatsu NH-220-CI-1B КОРОМЫСЛО И КОЖУХ ГОЛОВКА ЦИЛИНДРОВ
№
Артикул
Название
Примечание
Количество
|1
6620-11-7010
HOUSING ASS'Y,ROCKER ARM
SN: 18542-UP
3шт.
|1
6610-11-7020
HOUSING ASS'Y,ROCKER ARM
SN: 18542-UP
1шт.
1
6610-11-7110
HOUSING,ROCKER ARM
SN: 18542-UP
1шт.
2
6610-11-7150
PLUG,EXPANSION
SN: 18542-UP
2шт.
3
6610-11-7140
PLUG,VENTILATOR
SN: 18542-UP
1шт.
4
6610-11-7330
SCREW
SN: 18542-UP
1шт.
5
6610-11-7340
PLATE,LOCK (K2)
SN: 18542-UP
1шт.
|6
6610-41-5020
SHAFT ASS'Y,ROCKER ARM
SN: 18542-UP
1шт.
6
0
SHAFT,ROCKER ARM
SN: 18542-UP
1шт.
7
6610-41-5220
PLUG
SN: 18542-UP
2шт.
|8
6610-41-5030
ARM ASS'Y,EXHAUST VALVE¤ NO.1¤3¤5
SN: 18542-UP
1шт.
|8
6610-41-5050
ARM ASS'Y,EXHAUST VALVE¤ NO.2¤4¤6
SN: 18542-UP
1шт.
|8
6620-41-5030
ARM ASS'Y,INTAKE VALVE¤ NO.1¤3¤5
SN: 18542-UP
1шт.
|8
6620-41-5050
ARM ASS'Y,INTAKE VALVE¤ NO.2¤4¤6
SN: 18542-UP
1шт.
|8
6610-41-5040
ARM ASS'Y,EXHAUST VALVE¤ NO.1¤3¤5
SN: 18542-UP
1шт.
|8
6610-41-5060
ARM ASS'Y,EXHAUST VALVE¤ NO.2¤4¤6
SN: 18542-UP
1шт.
|8
6620-41-5040
ARM ASS'Y,INTAKE VALVE¤ NO.1¤3¤5
SN: 18542-UP
1шт.
|8
6620-41-5060
ARM ASS'Y,INTAKE VALVE¤ NO.2¤4¤6
SN: 18542-UP
1шт.
8
0
ARM,EXHAUST VALVE¤ NO.1¤3¤5
SN: 18542-UP
1шт.
9
0
ARM,EXHAUST VALVE¤ NO.2¤4¤6
SN: 18542-UP
1шт.
10
0
ARM,INTAKE VALVE¤ NO.1¤3¤5
SN: 18542-UP
1шт.
11
0
ARM,INTAKE VALVE¤ NO.2¤4¤6
SN: 18542-UP
1шт.
12
6610-41-5330
BUSHING,ARM
SN: 18542-UP
1шт.
13
6610-41-5360
NUT
SN: 18542-UP
1шт.
14
6610-41-5350
SCREW,ADJUSTING
SN: 18542-UP
1шт.
|15
6610-41-5070
ARM ASS'Y,INJECTOR
SN: 18542-UP
2шт.
|15
6610-41-5080
ARM ASS'Y,INJECTOR
SN: 18542-UP
1шт.
15
0
ARM,INJECTOR
SN: 18542-UP
1шт.
16
6610-41-5530
BUSHING,ROCKER ARM
SN: 18542-UP
1шт.
17
6610-41-5540
SOCKET,INJECTOR
SN: 18542-UP
1шт.
18
6600-01-2510
NUT
SN: 18542-UP
1шт.
19
6610-41-5550
SCREW,ADJUSTING
SN: 18542-UP
1шт.
20
6610-11-7310
CAP,OIL PIPE
SN: 18542-UP
3шт.
21
6610-11-7320
GASKET (K2)
SN: 18542-UP
3шт.
22
6610-11-7811
GASKET (K2)
SN: 18542-UP
3шт.
23
02010-30889
BOLT
SN: 18542-UP
19шт.
24
02310-11632
WASHER,SPRING
SN: 18542-.
19шт.
|1
6620-11-7010
HOUSING ASS'Y,ROCKER ARM
SN: 18542-UP
3шт.
|1
6610-11-7020
HOUSING ASS'Y,ROCKER ARM
SN: 18542-UP
1шт.
1
6610-11-7110
HOUSING,ROCKER ARM
SN: 18542-UP
1шт.
2
6610-11-7150
PLUG,EXPANSION
SN: 18542-UP
2шт.
3
6610-11-7140
PLUG,VENTILATOR
SN: 18542-UP
1шт.
4
6610-11-7330
SCREW
SN: 18542-UP
1шт.
5
6610-11-7340
PLATE,LOCK (K2)
SN: 18542-UP
1шт.
|6
6610-41-5020
SHAFT ASS'Y,ROCKER ARM
SN: 18542-UP
1шт.
6
0
SHAFT,ROCKER ARM
SN: 18542-UP
1шт.
7
6610-41-5220
PLUG
SN: 18542-UP
2шт.
|8
6610-41-5030
ARM ASS'Y,EXHAUST VALVE¤ NO.1¤3¤5
SN: 18542-UP
1шт.
|8
6610-41-5050
ARM ASS'Y,EXHAUST VALVE¤ NO.2¤4¤6
SN: 18542-UP
1шт.
|8
6620-41-5030
ARM ASS'Y,INTAKE VALVE¤ NO.1¤3¤5
SN: 18542-UP
1шт.
|8
6620-41-5050
ARM ASS'Y,INTAKE VALVE¤ NO.2¤4¤6
SN: 18542-UP
1шт.
|8
6610-41-5040
ARM ASS'Y,EXHAUST VALVE¤ NO.1¤3¤5
SN: 18542-UP
1шт.
|8
6610-41-5060
ARM ASS'Y,EXHAUST VALVE¤ NO.2¤4¤6
SN: 18542-UP
1шт.
|8
6620-41-5040
ARM ASS'Y,INTAKE VALVE¤ NO.1¤3¤5
SN: 18542-UP
1шт.
|8
6620-41-5060
ARM ASS'Y,INTAKE VALVE¤ NO.2¤4¤6
SN: 18542-UP
1шт.
8
0
ARM,EXHAUST VALVE¤ NO.1¤3¤5
SN: 18542-UP
1шт.
9
0
ARM,EXHAUST VALVE¤ NO.2¤4¤6
SN: 18542-UP
1шт.
10
0
ARM,INTAKE VALVE¤ NO.1¤3¤5
SN: 18542-UP
1шт.
11
0
ARM,INTAKE VALVE¤ NO.2¤4¤6
SN: 18542-UP
1шт.
12
6610-41-5330
BUSHING,ARM
SN: 18542-UP
1шт.
13
6610-41-5360
NUT
SN: 18542-UP
1шт.
14
6610-41-5350
SCREW,ADJUSTING
SN: 18542-UP
1шт.
|15
6610-41-5070
ARM ASS'Y,INJECTOR
SN: 18542-UP
2шт.
|15
6610-41-5080
ARM ASS'Y,INJECTOR
SN: 18542-UP
1шт.
15
0
ARM,INJECTOR
SN: 18542-UP
1шт.
16
6610-41-5530
BUSHING,ROCKER ARM
SN: 18542-UP
1шт.
17
6610-41-5540
SOCKET,INJECTOR
SN: 18542-UP
1шт.
18
6600-01-2510
NUT
SN: 18542-UP
1шт.
19
6610-41-5550
SCREW,ADJUSTING
SN: 18542-UP
1шт.
20
6610-11-7310
CAP,OIL PIPE
SN: 18542-UP
3шт.
21
6610-11-7320
GASKET (K2)
SN: 18542-UP
3шт.
22
6610-11-7811
GASKET (K2)
SN: 18542-UP
3шт.
23
02010-30889
BOLT
SN: 18542-UP
19шт.
24
02310-11632
WASHER,SPRING
SN: 18542-.
19шт.
Выбрано товаров: 74
