Артикул
Название
Примечание
Количество
|1
144-Z20-6102
HYDRAULIC TANK ASS'Y
SN: 50001-UP
1шт.
|$$2

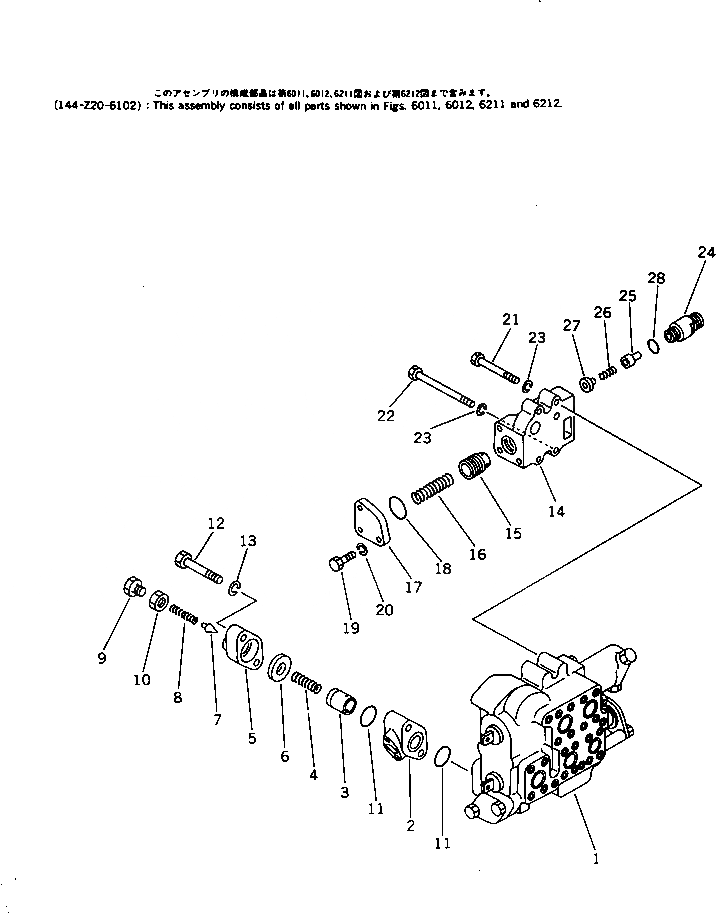

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6011¤6012¤6211 AND 6212.
-1шт.
|1
144-921-3202
HYDRAULIC TANK ASS'Y,(FOR FARMING)
SN: 50001-UP
1шт.
|$$4
THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6015¤6016¤6211¤6212 AND 6221.
-1шт.
|1
144-921-3102
HYDRAULIC TANK ASS'Y,(FOR RIPPER)
SN: 50001-UP
1шт.
|$$6
THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6017¤6018¤6211¤6212 AND 6222.
-1шт.
1
701-33-32005
BODY ASS'Y
SN: 50001-UP
1шт.
|2
701-30-00011
HOUSING ASS'Y
SN: 50001-UP
1шт.
2
0
HOUSING,RELIEF VALVE
SN: 50001-UP
1шт.
3
0
VALVE,PRESSURE REGULATOR
SN: 50001-UP
1шт.
4
701-30-51130
SPRING
SN: 50001-UP
1шт.
5
701-30-51140
BODY
SN: 50001-UP
1шт.
6
701-30-51151
SEAT,VALVE
SN: 50001-UP
1шт.
7
701-30-51160
POPPET
SN: 50001-UP
1шт.
8
701-30-51171
SPRING
SN: 50001-UP
1шт.
9
701-10-51160
PLUG
SN: 50001-UP
1шт.
10
701-30-51190
NUT
SN: 50001-UP
1шт.
12
01011-31405
BOLT
SN: 50001-UP
2шт.
13
20D-14-11510
WASHER
SN: 50001-UP
2шт.
14
701-30-62411
HOUSING,VACUUM CHECK VALVE
SN: 50001-UP
1шт.
15
701-30-61120
VALVE,VACUUM CHECK
SN: 50001-UP
1шт.
16
701-30-61130
SPRING
SN: 50001-UP
1шт.
17
701-30-62130
PLATE
SN: 50001-UP
1шт.
24
701-30-65111
BODY
SN: 50001-UP
1шт.
25
701-13-31120
VALVE
SN: 50001-UP
1шт.
26
701-30-65131
SPRING
SN: 50001-UP
1шт.
27
701-30-65123
SEAT
SN: 50001-UP
1шт.
Выбрано товаров: 38
