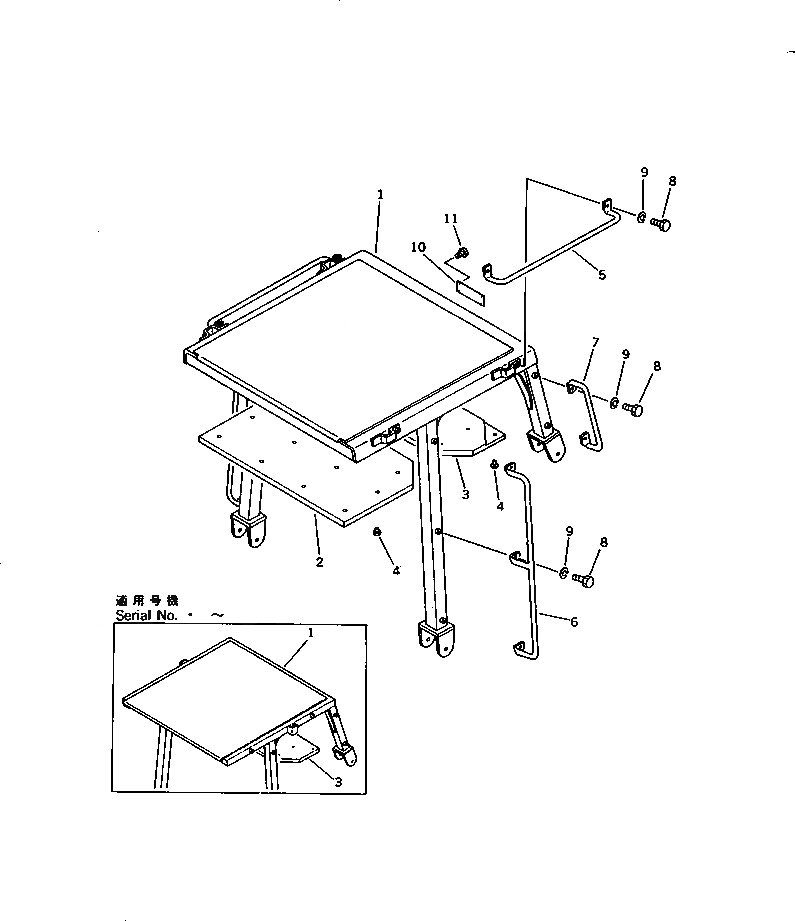

Запчасти Komatsu D58E-1 СИСТЕМА ROPS КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

120-Y78-4410

GUARD

SN: 80888-UP

1шт.

2

144-978-8361

LINING,ROOF FRONT

SN: 82539-UP

1шт.

2

120-Y78-4471

LINING,ROOF FRONT

SN: 80888-82538

1шт.

3

144-978-8371

LINING,ROOF REAR

SN: 82539-UP

1шт.

3

120-Y78-4482

LINING,ROOF REAR

SN: .-82538

1шт.

3

0

LINING,ROOF REAR

SN: 80888-.

1шт.

|$$7

(120-Y78-4482,120-Y78-4411)

-1шт.

4

120-Y78-4550

BUTTON

SN: 80888-UP

22шт.

5

120-Y78-4521

HANDLE,UPPER

SN: 80888-UP

2шт.

6

120-Y78-4491

HANDLE,L.H.

SN: 80888-UP

1шт.

6

120-Y78-4511

HANDLE,R.H.

SN: 80888-UP

1шт.

7

120-Y78-4531

HANDLE,REAR

SN: 80888-UP

2шт.

8

01010-51230

BOLT

SN: 80888-UP

14шт.

9

01602-21236

WASHER,SPRING

SN: 80888-UP

14шт.

10

09620-00200

PLATE, NAME,(LIMITED SUPPLY) (JAPANESE)

SN: 80888-UP

1шт.

10

09620-30200

PLATE, NAME,(LIMITED SUPPLY) (ENGLISH)

SN: 80888-UP

1шт.

10

09620-30201

PLATE, NAME,(LIMITED SUPPLY) (USA)

SN: 80888-UP

1шт.

10

09620-50200

PLATE, NAME,(LIMITED SUPPLY) (FRENCH)

SN: 80888-UP

1шт.

10

09620-20200

PLATE, NAME,(LIMITED SUPPLY) (GERMAN)

SN: 80888-UP

1шт.

10

09620-10200

PLATE, NAME,(LIMITED SUPPLY) (SPANISH)

SN: 80888-UP

1шт.

10

09620-02200

PLATE, NAME,(LIMITED SUPPLY) (ARABIC)

SN: 80888-UP

1шт.

10

09620-70200

PLATE, NAME,(LIMITED SUPPLY) (PORTUGUESE)

SN: 80888-UP

1шт.

10

09620-90200

PLATE, NAME,(LIMITED SUPPLY) (CHINESE)

SN: 80888-UP

1шт.

10

09620-05200

PLATE, NAME,(LIMITED SUPPLY) (INDNESIAN)

SN: 80888-UP

1шт.

11

04418-13060

SCREW

SN: 80888-UP

4шт.
