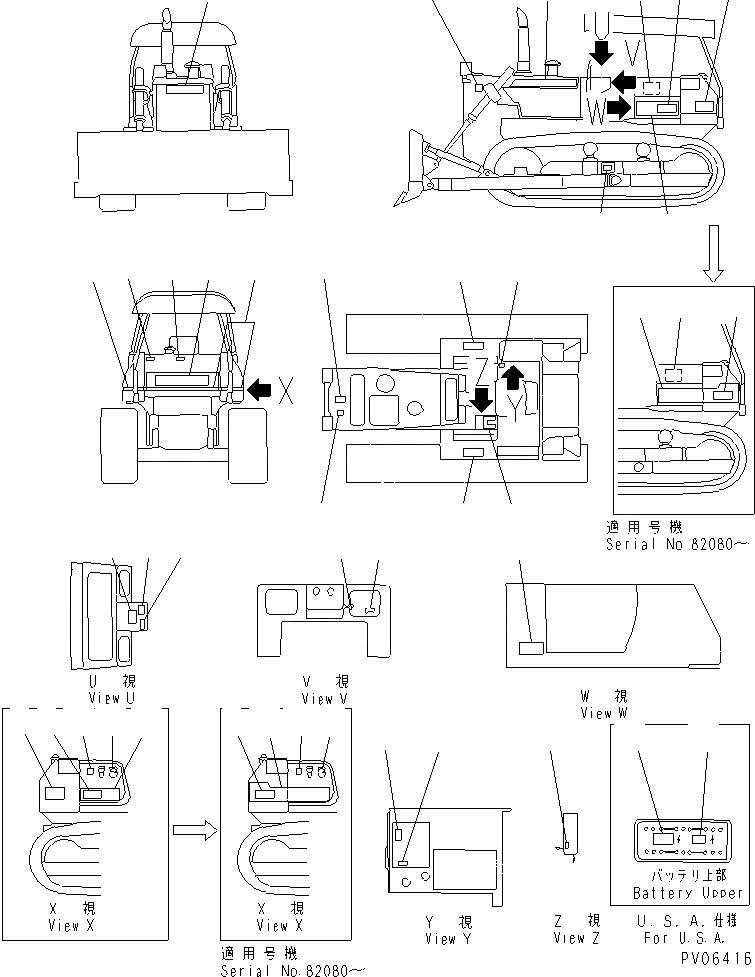

Запчасти Komatsu D58E-1 МАРКИРОВКА (АНГЛ.) МАРКИРОВКА

1

09690-C0280

PLATE, MARK,HEAD

SN: 82080-UP

1шт.

1

0

PLATE, MARK,HEAD

SN: 80888-82079

1шт.

2

09667-03000

PLATE, SAFETY,ENGINE COVER

SN: 80888-UP

2шт.

3

14G-54-61170

PLATE, MARK,L.H.

SN: 81404-UP

1шт.

3

134-54-35140

PLATE, STRIPE,L.H.

SN: 80888-81403

1шт.

3

134-54-35330

PLATE, MARK,R.H.

SN: 81404-UP

1шт.

3

134-54-35150

PLATE, STRIPE,R.H.

SN: 80888-81403

1шт.

4

134-98-31421

CHART,OIL

SN: 80888-UP

1шт.

5

134-54-55220

PLATE, MARK,D58E L.H.

SN: 82080-UP

1шт.

5

0

PLATE, MARK,L.H.

SN: 81734-82079

1шт.

5

0

PLATE, MARK,L.H.

SN: 80888-81733

1шт.

5

134-54-55220

PLATE, MARK,D58E R.H.

SN: 82080-UP

1шт.

5

0

PLATE, MARK,R.H.

SN: 81734-82079

1шт.

5

0

PLATE, MARK,R.H.

SN: 80888-81733

1шт.

5A

134-54-35132

PLATE, MARK,STRIPE

SN: 82080-UP

2шт.

6

09657-03010

PLATE, SAFETY,TRACK SHOE ADJUSTING

SN: 80888-UP

2шт.

7

134-54-35110

PLATE, MARK

SN: 80888-82079

2шт.

8

09652-30101

PLATE, CAUTION,FUEL TANK WATER DRAIN

SN: 80888-UP

1шт.

9

09656-30080

PLATE, INSTRUCTION,FUEL TANK STRAINER

SN: 80888-UP

1шт.

10

09690-C0400

PLATE, MARK,KOMATSU

SN: 82080-UP

1шт.

10

0

PLATE, MARK,KOMATSU

SN: 80888-82079

1шт.

10

09690-C0500

PLATE, MARK,KOMATSU (FOR U.S.A.)

SN: 82478-UP

1шт.

11

134-54-35351

PLATE, MARK,WHITE BELT

SN: 82080-UP

3шт.

11

134-54-35350

PLATE, MARK,WHITE BELT

SN: 81404-82079

3шт.

11

134-54-35170

PLATE, MARK,WHITE BELT

SN: 80888-81403

3шт.

12

09650-30101

PLATE, INSTRUCTION,RADIATOR WATER LEVEL

SN: 80888-UP

1шт.

13

120-54-32451

SHEET,ANTISKID

SN: 80888-UP

2шт.

14

09670-0000B

PLATE, OPERATING,BLADE CONTROL LEVER (PT)

SN: 82539-UP

1шт.

14

09670-00004

PLATE, OPERATING,BLADE CONTROL LEVER (PT)

SN: 80888-82538

1шт.

14

09670-0000A

PLATE, OPERATING,BLADE CONTROL LEVER (A)

SN: 82539-UP

1шт.

14

09670-00001

PLATE, OPERATING,BLADE CONTROL LEVER (A)

SN: 80888-82358

1шт.

15

09668-03000

PLATE, SAFETY,RADIATOR CAP

SN: 80888-UP

1шт.

16

144-54-25270

PLATE, OPERATING,TRANSMISSION CONTROL

SN: 80888-UP

1шт.

16

04418-13060

SCREW

SN: 80888-UP

6шт.

17

09654-03000

PLATE, SAFETY,BEFORE AND AFTER OPERATION

SN: 80888-UP

1шт.

18

09173-03000

PLATE, SAFETY,INSPECTION AND MAINTENANCE

SN: 80888-UP

1шт.

19

09651-03000

PLATE, SAFETY,BEFORE OPERATING

SN: 80888-UP

1шт.

20

08670-12001

INDICATOR,DUST

SN: 80888-UP

1шт.

21

09683-30060

PLATE, OPERATING,STARTING SWITCH

SN: 80888-UP

1шт.

22

09602-01635

PLATE, NAME,(LIMITED SUPPLY)

SN: 80888-UP

1шт.

22

04418-13060

SCREW

SN: 80888-UP

4шт.

23

09653-03000

PLATE, SAFETY,HYDRAULIC TANK

SN: 80888-UP

1шт.

24

09655-30120

PLATE, INSTRUCTION,OIL FILTER

SN: 80888-UP

1шт.

25

120-98-31121

PLATE, OPERATING,BLADE CONTROL LEVER LOCK (PT)

SN: 80888-UP

1шт.

25

09685-00001

PLATE, OPERATING,BLADE CONTROL LEVER LOCK (A)

SN: 80888-UP

1шт.

26

09685-00004

PLATE, OPERATING,BRAKE LOCK

SN: 80888-UP

1шт.

27

09685-00002

PLATE, OPERATING,T/M CONTROL LEVER LOCK

SN: 80888-UP

1шт.

28

09664-30081

PLATE, SAFETY,BATTERY (FOR U.S.A.)

SN: 80888-UP

2шт.

29

09664-30068

PLATE, SAFETY,BATTERY DISTRIBUTOR (FOR USA)

SN: 80888-UP

2шт.
