Артикул
Название
Примечание
Количество
|$$1
SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.
-1шт.
|1
19M-15-00010
TRANSMISSION ASS'Y
SN: 10001-UP
1шт.
|$$3

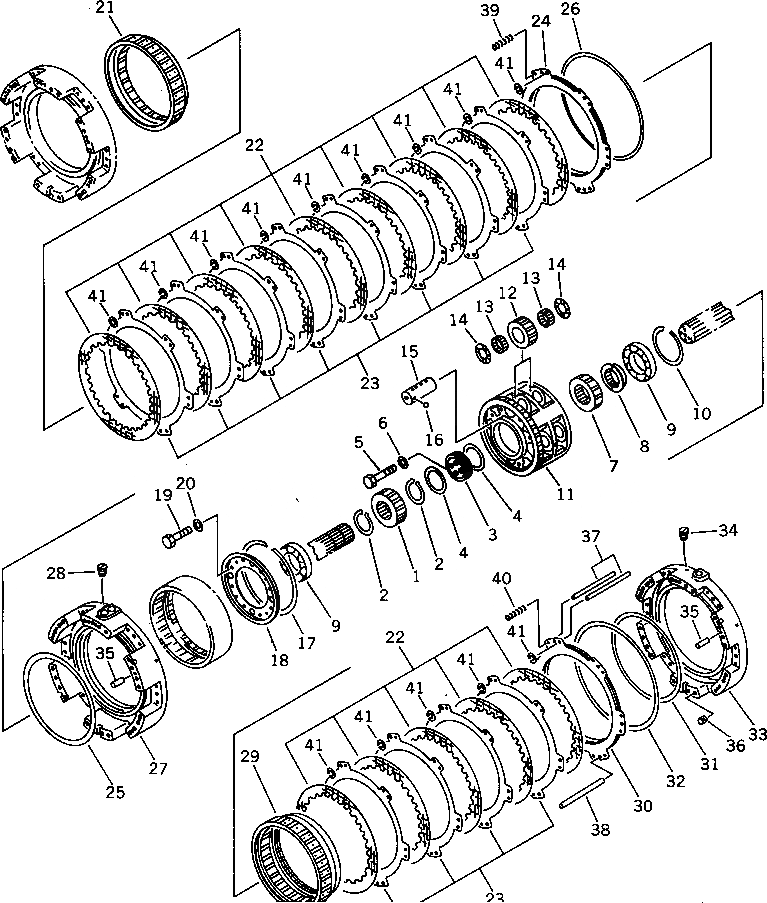

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2320-51A0 TO F2320-60A0.
-1шт.
1
19M-15-12230
GEAR
SN: 10001-UP
1шт.
3
19M-15-12850
COLLAR
SN: 10001-UP
1шт.
7
42C-15-12220
GEAR
SN: (10063)-UP
1шт.
|7
19M-15-12220
GEAR
SN: 10001-(10062)
1шт.
8
19M-15-12861
COLLAR
SN: 10001-UP
1шт.
9
06030-06026
BEARING,BALL
SN: 10001-UP
2шт.
11
19M-15-12321
CARRIER
SN: 10001-UP
1шт.
13
42C-15-12240
BEARING
SN: (10063)-UP
16шт.
|13
19M-15-19420
BEARING,NEEDLE
SN: 10001-(10062)
16шт.
14
42C-15-12570
THRUST WASHER
SN: (10063)-UP
16шт.
|14
19M-15-12571
WASHER,THRUST
SN: 10001-(10062)
16шт.
15
19M-15-12520
SHAFT
SN: 10001-UP
4шт.
18
19M-15-12890
PLATE
SN: 10001-UP
1шт.
21
19M-15-12631
GEAR,RING
SN: 10001-UP
1шт.
22
19M-15-22820
DISC
SN: (10047)-UP
14шт.
|22
582-15-12820
DISC
SN: 10001-(10046)
14шт.
23
19M-15-12731
PLATE
SN: 10001-UP
12шт.
24
19M-15-12760
PISTON,FORWARD
SN: 10001-UP
1шт.
26
19M-15-19240
RING,SEAL (KIT)
SN: 10001-UP
1шт.
|27
19M-15-00040
HOUSING ASS'Y
SN: 10001-UP
1шт.
27
0
HOUSING
SN: 10001-UP
1шт.
29
19M-15-12621
GEAR,RING
SN: 10001-UP
1шт.
30
19M-15-12750
PISTON,3RD
SN: 10001-UP
1шт.
32
19M-15-19250
RING,SEAL (KIT)
SN: 10001-UP
1шт.
|33
19M-15-00050
HOUSING ASS'Y
SN: 10001-UP
1шт.
33
0
HOUSING
SN: 10001-UP
1шт.
37
19M-15-11281
PIN
SN: 10001-UP
12шт.
38
19M-15-11261
PIN
SN: 10001-UP
6шт.
39
198-43-17680
SPRING
SN: 10001-UP
6шт.
Выбрано товаров: 50
