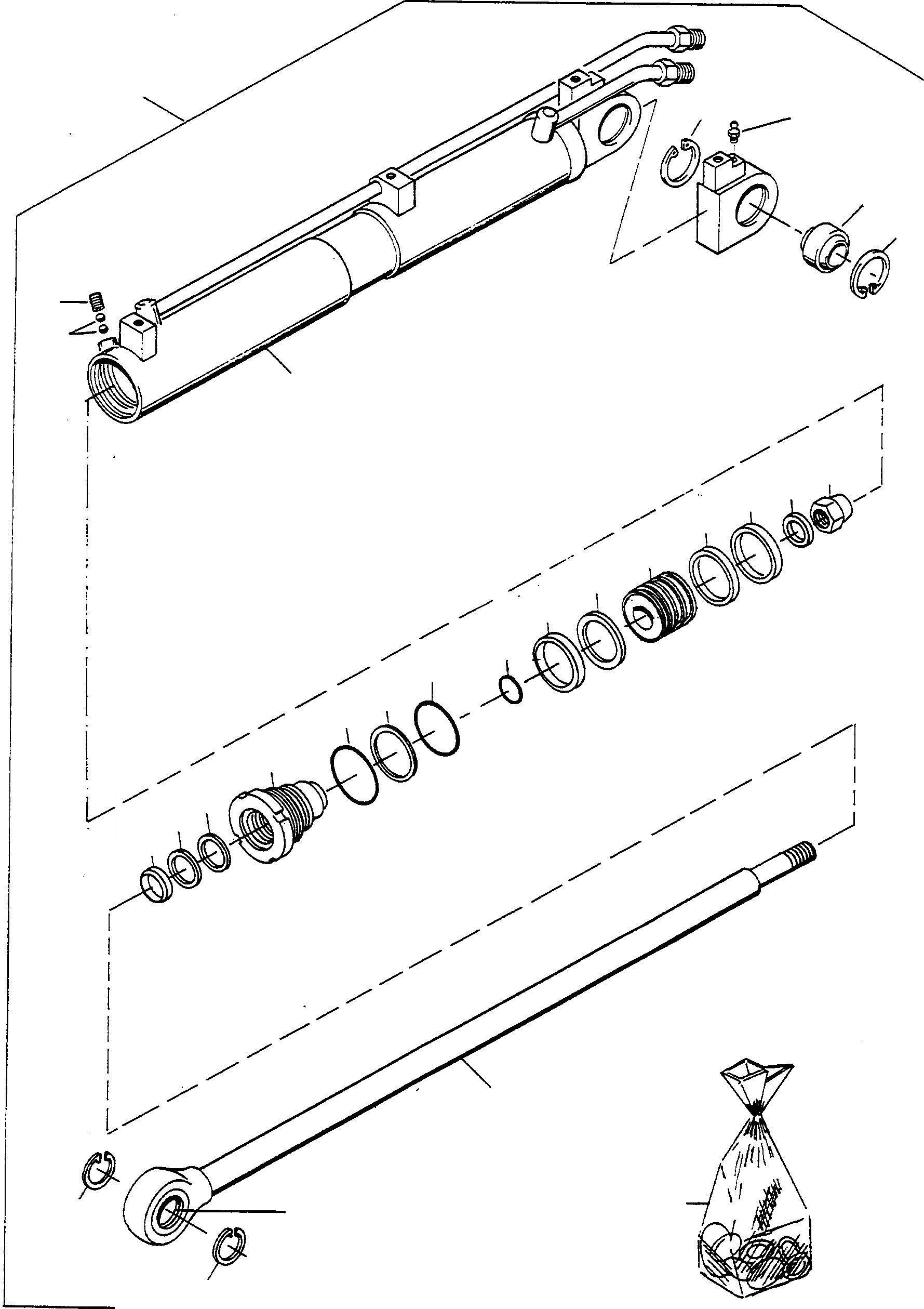

Запчасти Komatsu D540E ЦИЛИНДР, PAT-ОТВАЛ ОБОРУД-Е

1

2990078M91

SWIVEL CYLINDER

EnglischBem: REPAIRS AND REPLACES 2990 017 M91

1шт.

1A

2990405M91

SWIVEL CYLINDER

EnglischBem: REPAIRS AND REPLACES 2990 078 M91

1шт.

2

4907969M1

BARREL

EnglischBem: NOTE: Pos. (2) included in Pos. (1) and (1A) Kit

1шт.

3

4912732M1

CYLINDER ROD

EnglischBem: REPAIR KIT FOR 2990 017 M91 2990 078 M91

1шт.

4

1606726M1

BALL AND SOCKET JOIN

EnglischBem: NOTE: Pos. (4) included in Pos. (1) and (1A) Kit

1шт.

5

1440819X1

CIRCLIP

EnglischBem: NOTE: Pos. (5) included in Pos. (1) and (1A) Kit

2шт.

6

4905367M1

GUIDE BUSH

EnglischBem: REPAIR KIT FOR 2990 017 M91 NOTE: Pos. (6) included in Pos. (1)

1шт.

7

4906586M1

SEAL

EnglischBem: NOTE: Pos. (7) included in Pos. (1) and (1A) Kit

1шт.

8

4911799M1

SEAL

EnglischBem: NOTE: Pos. (8) included in Pos. (1) and (1A) Kit

1шт.

9

4911800M1

STRIPPER

EnglischBem: NOTE: Pos. (9) included in Pos. (1) and (1A) Kit

1шт.

10

3007020X1

O-RING

EnglischBem: NOTE: Pos. (10) included in Pos. (1) and (1A) Kit

1шт.

11

3256039M1

BACK-UP RING

EnglischBem: NOTE: Pos. (11) included in Pos. (1) and (1A) Kit

1шт.

12

3256040M1

O-RING

EnglischBem: NOTE: Pos. (12) included in Pos. (1) and (1A) Kit

1шт.

13

4912733M1

O-RING

EnglischBem: 1A

1шт.

14

4912734M1

PISTON

EnglischBem: REPAIR KIT FOR 2990 017 M91 2990 078 M91

1шт.

15

3256045M1

SEAL

EnglischBem: NOTE: Pos. (15) included in Pos. (1) and (1A) Kit

1шт.

16

3256046M1

PILOT

EnglischBem: NOTE: Pos. (16) included in Pos. (1) and (1A) Kit

1шт.

17

3256047M1

PILOT

EnglischBem: NOTE: Pos. (17) included in Pos. (1) and (1A) Kit

2шт.

18

4912735M1

PLAIN WASHER

EnglischBem: REPAIR KIT FOR 2990 017 M91 2990 078 M91

1шт.

19

3000163X1

NUT

EnglischBem: REPAIR KIT FOR 2990 017 M91 2990 078 M91 M36X2

1шт.

19A

1441551X1

NUT

EnglischBem: M27X2

1шт.

20

3256050M1

BALL

EnglischBem: NOTE: Pos. (20) included in Pos. (1) and (1A) Kit

2шт.

21

3256051M1

GRUB SCREW

EnglischBem: NOTE: Pos. (21) included in Pos. (1) and (1A) Kit

1шт.

22

2993277X1

BALL AND SOCKET JOIN

EnglischBem: NOTE: Pos. (22) included in Pos. (1) and (1A) Kit

1шт.

23

1440479X1

CIRCLIP

EnglischBem: NOTE: Pos. (23) included in Pos. (1) and (1A) Kit

2шт.

24

339608X1

LUBRICATION NIPPLE

EnglischBem: NOTE: Pos. (24) included in Pos. (1) and (1A) Kit

1шт.

25

3256151M91

GASKET KIT

EnglischBem: REPAIR KIT FOR 2990 017 M91 2990 078 M91

1шт.
