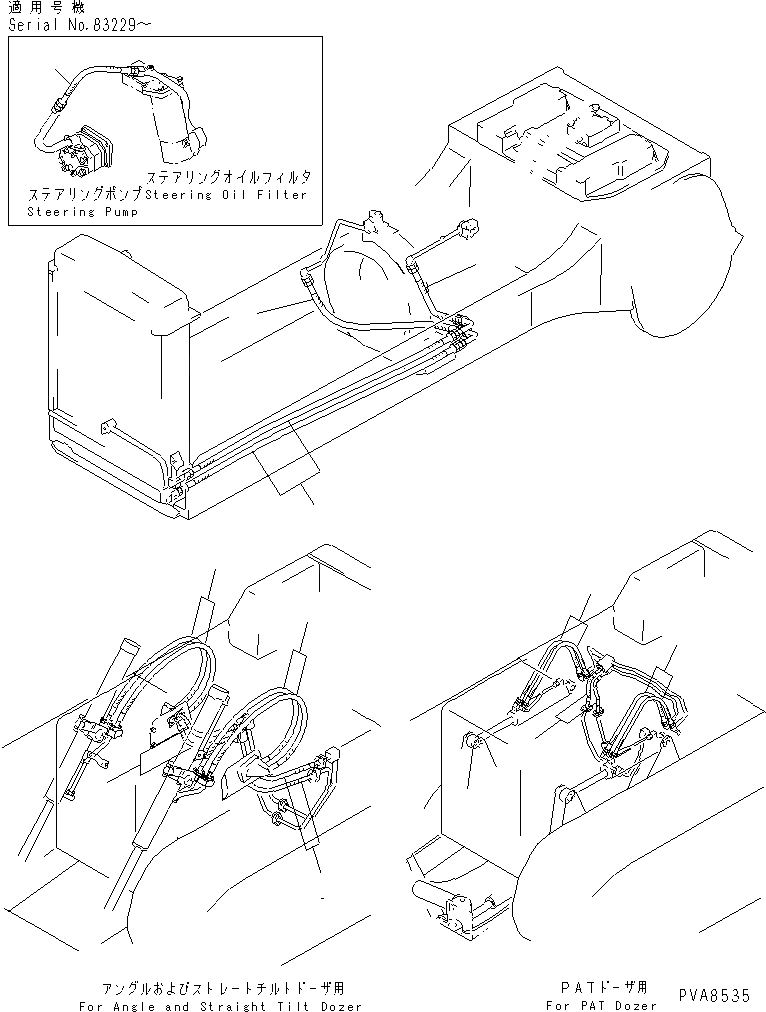

Запчасти Komatsu D53A-18 ЧАСТИ ДЛЯ ПЕРИОДИЧ. ЗАМЕНЫ (/)(ГИДРАВЛ ШЛАНГИ)(DA) ЧАСТИ BOOK

1

07102-20506

HOSE

SN: 83001-UP

2шт.

2

134-49-34160

HOSE,(FOR ANGLE AND STRAIGHT TILT)

SN: 83001-UP

2шт.

3

07118-00605

HOSE,(FOR ANGLE AND STRAIGHT TILT)

SN: 83001-UP

4шт.

|3

07000-23025

O-RING,(FOR ANGLE AND STRAIGHT TILT)

SN: 83001-UP

8шт.

|3

07371-30638

FLANGE,SPLIT(FOR ANGLE AND S.TILT)

SN: 83001-UP

16шт.

|3

01010-50830

BOLT,(FOR ANGLE AND STRAIGHT TILT)

SN: 83001-UP

32шт.

|3

01602-20825

WASHER,SPRING (FOR ANGLE AND S.TILT)

SN: 83001-UP

32шт.

4

07119-00607

HOSE,(FOR P.A.T.)

SN: 83001-UP

2шт.

|4

07000-23025

O-RING,(FOR P.A.T.)

SN: 83001-UP

4шт.

|4

07371-30638

FLANGE,(FOR P.A.T.)

SN: 83001-UP

8шт.

|4

01010-50830

BOLT,(FOR P.A.T.)

SN: 83001-UP

12шт.

|4

01010-50860

BOLT,(FOR P.A.T.)

SN: 83001-UP

4шт.

|4

01643-50823

WASHER,(FOR P.A.T.)

SN: 83001-UP

16шт.

5

07119-00611

HOSE,(FOR ANGLE AND STRAIGHT TILT)

SN: 83001-UP

4шт.

|5

07000-23025

O-RING,(FOR ANGLE AND STRAIGHT TILT)

SN: 83001-UP

8шт.

|5

07371-30638

FLANGE,SPLIT(FOR ANGLE AND S.TILT)

SN: 83001-UP

16шт.

|5

01010-50830

BOLT,(FOR ANGLE AND STRAIGHT TILT)

SN: 83101-UP

32шт.

|5

0

BOLT,(FOR ANGLE AND STRAIGHT TILT)

SN: 83001-83100

32шт.

|5

01602-20825

WASHER,SPRING (FOR ANGLE AND S.TILT)

SN: 83001-UP

32шт.

6

07108-20609

HOSE,(FOR P.A.T.)

SN: 83001-UP

4шт.

7

07102-20503

HOSE

SN: 83229-UP

1шт.
