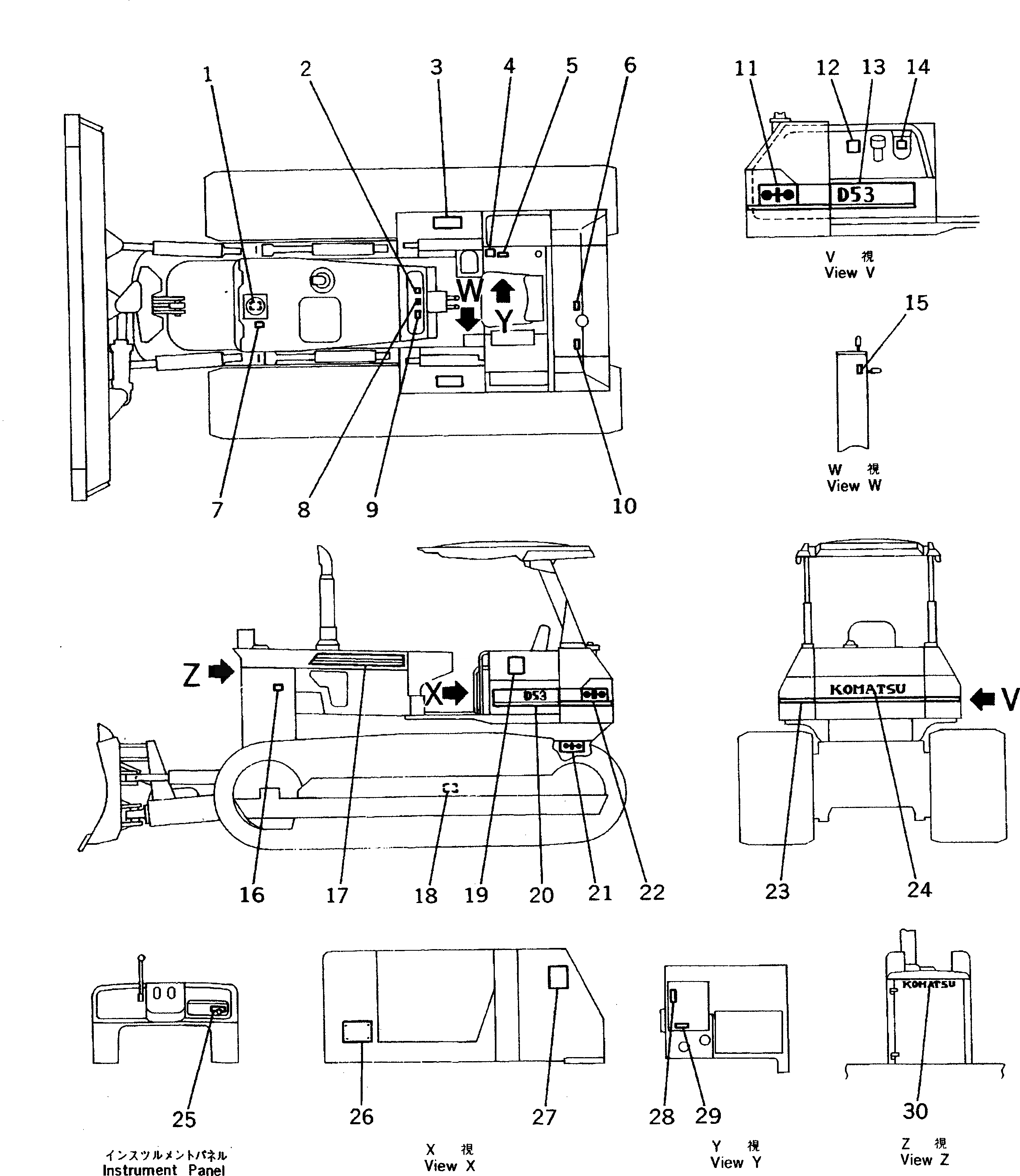

Запчасти Komatsu D53A-18 МАРКИРОВКА (ЯПОН.)(№8-8) МАРКИРОВКА

1

09650-01101

PLATE¤ INSTRUCTION,RADIATOR

SN: 83001-@

1шт.

2

09654-00100

PLATE¤ SAFETY,STARTING AND LEAVING SEAT

SN: 83001-@

1шт.

3

120-54-32451

SHEET,ANTISKID

SN: 83001-@

2шт.

4

09670-00004

PLATE¤ OPERATING,BLADE CONTROL LEVER (PAT)

SN: 83001-@

1шт.

|4

09670-00001

PLATE¤ OPERATING,BLADE CONTROL LEVER (A)

SN: 83001-@

1шт.

|4

09670-00004

PLATE¤ OPERATING,BLADE CONTROL LEVER (AT)

SN: 83001-@

1шт.

5

09670-00007

PLATE¤ OPERATING,BLADE CONTROL LEVER (PAT)

SN: 83075-@

1шт.

|5

0

PLATE¤ OPERATING,BLADE CONTROL LEVER (PAT)

SN: 83001-83074

1шт.

6

09656-01080

PLATE¤ INSTRUCTION,FUEL TANK STRAINER

SN: 83001-@

1шт.

7

09668-00100

PLATE¤ SAFETY,RADIATOR

SN: 83001-@

1шт.

8

09651-00100

PLATE¤ SAFETY,BEFORE OPERATING

SN: 83001-@

1шт.

9

09173-00100

PLATE¤ SAFETY,INSPECTION AND MAINTENANCE

SN: 83001-@

1шт.

10

09652-01101

PLATE¤ CAUTION,FUEL TANK

SN: 83001-@

1шт.

11

134-54-35110

PLATE¤ MARK,SYMBOL

SN: 83001-83132

1шт.

12

09653-00100

PLATE¤ SAFETY,HYDRAULIC TANK

SN: 83001-@

1шт.

13

134-54-55141

PLATE¤ MARK,D53A

SN: 83050-83132

1шт.

|13

0

PLATE¤ MARK,D53A

SN: 83001-83049

1шт.

14

09655-01120

PLATE¤ INSTRUCTION,OIL FILTER

SN: 83001-@

1шт.

15

09685-00002

PLATE¤ OPERATING,TRANSMISSION LEVER LOCK

SN: 83001-@

1шт.

16

09667-00100

PLATE¤ SAFETY,ENGINE ROOM

SN: 83001-@

1шт.

17

15B-54-15151

PLATE¤ MARK,LINE¤ L.H.

SN: 83050-@

1шт.

|17

15B-54-15150

PLATE¤ MARK,LINE¤ L.H.

SN: 83001-83049

1шт.

|17

15B-54-15141

PLATE¤ MARK,LINE¤ R.H.

SN: 83050-@

1шт.

|17

15B-54-15140

PLATE¤ MARK,LINE¤ R.H.

SN: 83001-83049

1шт.

18

09657-00110

PLATE¤ SAFETY,TRACK ADJUSTING

SN: 83001-@

2шт.

19

13G-54-55210

CHART,OIL

SN: 83001-@

1шт.

20

134-54-55131

PLATE¤ MARK,D53A

SN: 83050-83132

1шт.

|20

0

PLATE¤ MARK,D53A

SN: 83001-83049

1шт.

21

21K-00-22170

PLATE¤ MARK,SYMBOL

SN: 83001-@

1шт.

22

134-54-35110

PLATE¤ MARK,SYMBOL

SN: 83001-83132

1шт.

23

144-54-84121

PLATE¤ MARK,WHITE LINE

SN: 83050-83132

3шт.

|23

144-54-84120

PLATE¤ MARK,WHITE LINE

SN: 83018-83049

3шт.

|23

134-54-35170

PLATE¤ MARK,WHITE BELT

SN: 83001-83017

3шт.

24

09690-50800

PLATE¤ MARK,KOMATSU

SN: 83001-83132

1шт.

25

09683-01060

PLATE¤ OPERATING,STARTING SWITCH

SN: 83001-@

1шт.

26

09602-01635

PLATE¤ NAME,(LIMITED SUPPLY)

SN: 83001-@

1шт.

|26

04418-13060

SCREW

SN: 83001-@

4шт.

27

134-54-55160

PLATE¤ DATA,(PAT)

SN: 83001-@

1шт.

|27

134-54-55150

PLATE¤ DATA,(A)

SN: 83001-@

1шт.

|27

134-54-55150

PLATE¤ DATA,(AT)

SN: 83001-@

1шт.

28

09685-00005

PLATE¤ OPERATING,BLADE CONTROL LEVER LOCK (PAT)

SN: 83001-@

1шт.

|28

09685-00001

PLATE¤ OPERATING,BLADE CONTROL LEVER LOCK (A)

SN: 83001-@

1шт.

|28

09685-00005

PLATE¤ OPERATING,BLADE CONTROL LEVER LOCK (AT)

SN: 83001-@

1шт.

29

09685-00004

PLATE¤ OPERATING,BRAKE LOCK LEVER

SN: 83001-@

1шт.

30

09690-50500

PLATE¤ MARK,KOMATSU

SN: 83001-83132

1шт.
