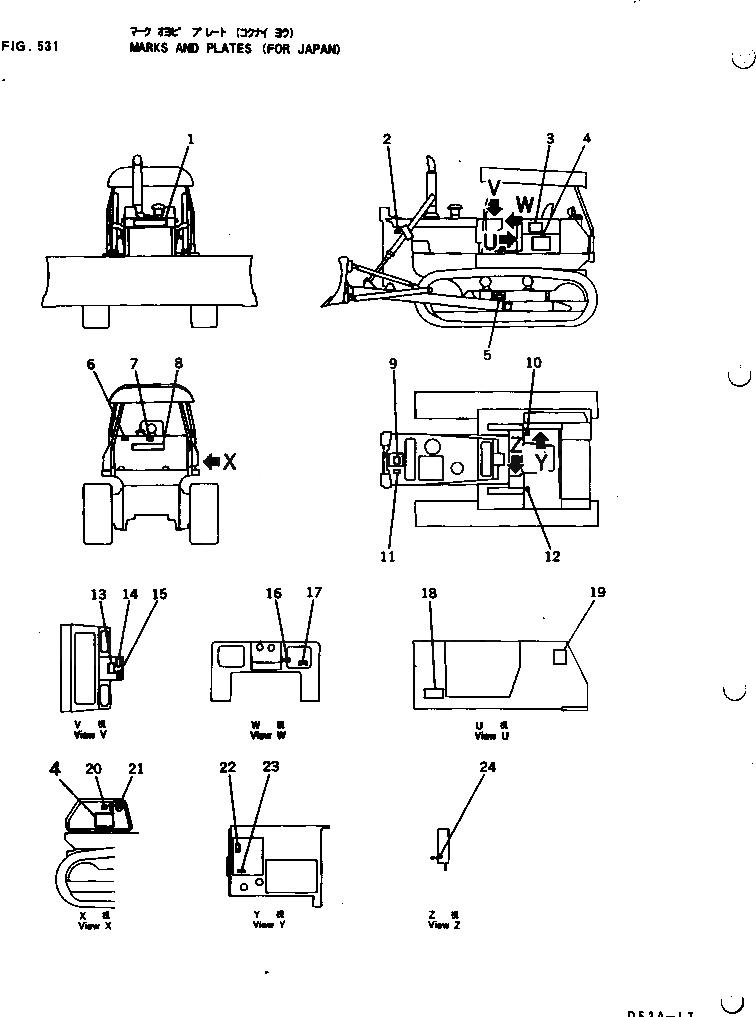

Запчасти Komatsu D53A-17 МАРКИРОВКА (ЯПОН.) МАРКИРОВКА

1

09690-B0280

PLATE¤ MARK,KOMATSU

SN: 82067-UP

1шт.

|1

0

PLATE¤ MARK,KOMATSU

SN: 80001-82066

1шт.

|1

175-54-41420

SCREW

SN: 80001-82066

2шт.

|1

175-54-41430

WASHER

SN: 80001-82066

2шт.

2

09667-00100

PLATE¤ SAFETY,ENGINE COVER

SN: 80001-UP

2шт.

3

134-98-31110

CHART¤ OIL

SN: 80001-UP

1шт.

4

134-54-35250

PLATE¤ MARK,D53A

SN: 82067-UP

2шт.

|4

0

PLATE¤ MARK,D53A

SN: 80001-82066

2шт.

5

09657-00110

PLATE¤ SAFETY,TRACK SHOE ADJUSTING

SN: 80001-UP

2шт.

6

09652-01101

PLATE¤ CAUTION,FUEL TANK WATER DRAIN

SN: 80001-UP

1шт.

7

09656-01080

PLATE¤ INSTRUCTION,FUEL TANK STRAINER

SN: 80001-UP

1шт.

8

09690-B0400

PLATE¤ MARK,KOMATSU

SN: 82067-UP

1шт.

|8

0

PLATE¤ MARK,KOMATSU

SN: 81340-82066

-1шт.

|8

0

PLATE¤ MARK,KOMATSU

SN: 80001-81339

1шт.

9

09650-01101

PLATE¤ INSTRUCTION,RADIATOR LEVEL

SN: 80001-UP

1шт.

10

09670-0000A

PLATE¤ OPERATING,BLADE CONTROL LEVER (A)

SN: 82525-UP

1шт.

|10

09670-00001

PLATE¤ OPERATING,BLADE CONTROL LEVER (A)

SN: 80001-82524

1шт.

|10

09670-0000B

PLATE¤ OPERATING,BLADE CONTROL LEVER (AT)

SN: 82525-UP

1шт.

|10

09670-00004

PLATE¤ OPERATING,BLADE CONTROL LEVER (AT)

SN: 80001-82524

1шт.

11

09668-00100

PLATE¤ SAFETY,RADIATOR CAP

SN: 80001-UP

1шт.

12

144-54-25270

PLATE¤ OPERATING,TRANSMISSION CONTROL

SN: 80001-UP

1шт.

13

09654-00100

PLATE¤ SAFETY,WARNING

SN: 80001-UP

1шт.

14

09173-00100

PLATE¤ SAFETY,CHECK AND SERVICE CAUTION

SN: 80001-UP

1шт.

15

09651-00100

PLATE¤ SAFETY,BEFORE OPERATING

SN: 80001-UP

1шт.

16

08670-50001

INDICATOR,DUST

SN: 80001-UP

1шт.

17

09683-01060

PLATE¤ OPERATING,STARTING SWITCH

SN: 80001-UP

1шт.

18

09602-01635

PLATE¤ NAME,(LIMITED SUPPLY)

SN: 80001-UP

1шт.

|18

04418-13060

SCREW

SN: 80001-UP

4шт.

19

134-98-31310

PLATE¤ CAUTION

SN: 80001-UP

1шт.

20

09653-00100

PLATE¤ SAFETY,HYDRAULIC TANK CAP

SN: 80001-UP

1шт.

21

09655-01120

PLATE¤ INSTRUCTION,OIL FILTER

SN: 80001-UP

1шт.

22

09685-00001

PLATE¤ OPERATING,BLADE CONTROL LEVER LOCK (A)

SN: 80001-UP

1шт.

|22

120-98-31121

PLATE¤ OPERATING,BLADE CONTROL LEVER LOCK (AT)

SN: 80001-UP

1шт.

23

09685-00004

PLATE¤ OPERATING,BRAKE LOCK

SN: 80001-UP

1шт.

24

09685-00002

PLATE¤ OPERATING,T/M CONTROL LEVER LOCK

SN: 80001-UP

1шт.
