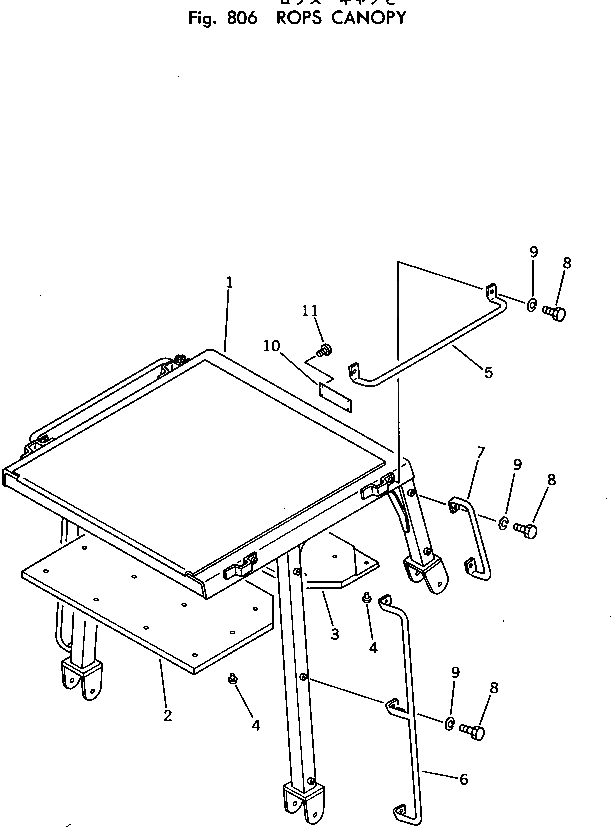

Запчасти Komatsu D50PL-17 СИСТЕМА ROPS ОПЦИОННЫЕ КОМПОНЕНТЫ

1

120-Y78-4411

GUARD

SN: .-UP

1шт.

1

0

GUARD

SN: 80001-.

1шт.

|$$3

(120-Y78-4411,120-Y78-4482)

-1шт.

2

120-Y78-4471

LINING,ROOF, FRONT

SN: 80001-UP

1шт.

3

120-Y78-4432

LINING,ROOF, REAR

SN: .-UP

1шт.

3

0

LINING,ROOF, REAR

SN: 80001-.

1шт.

|$$7

(120-Y78-4482,120-Y78-4411)

-1шт.

4

120-Y78-4550

BUTTON

SN: 80001-UP

22шт.

5

120-Y78-4520

HANDLE,UPPER

SN: 80001-UP

2шт.

6

120-Y78-4490

HANDLE,L.H.

SN: 80001-UP

1шт.

6

120-Y78-4510

HANDLE,R.H.

SN: 80001-UP

1шт.

7

120-Y78-4530

HANDLE,REAR

SN: 80001-UP

2шт.

8

01010-51225

BOLT

SN: 80001-UP

14шт.

9

01602-21236

WASHER,SPRING

SN: 80001-UP

14шт.

10

09620-00200

PLATE, NAME,(JAPANESE) (LIMITED SUPPLY)

SN: 80001-UP

1шт.

10

09620-30200

PLATE, NAME,(ENGLISH) (LIMITED SUPPLY)

SN: 80001-UP

1шт.

10

09620-50200

PLATE, NAME,(FRENCH) (LIMITED SUPPLY)

SN: 80001-UP

1шт.

10

09620-20200

PLATE, NAME,(GERMAN) (LIMITED SUPPLY)

SN: 80001-UP

1шт.

10

09620-10200

PLATE, NAME,(SPANISH) (LIMITED SUPPLY)

SN: 80001-UP

1шт.

10

09620-02200

PLATE, NAME,(ARABIC) (LIMITED SUPPLY)

SN: 80001-UP

1шт.

10

09620-70200

PLATE, NAME,(PORTUGUESE) (LIMITED SUPPLY)

SN: 80001-UP

1шт.

10

09620-90200

PLATE, NAME,(CHINESE) (LIMITED SUPPLY)

SN: 80001-UP

1шт.

10

09620-05200

PLATE, NAME,(INDONESIAN) (LIMITED SUPPLY)

SN: 80001-UP

1шт.

11

04418-13060

SCREW

SN: 80001-UP

4шт.
