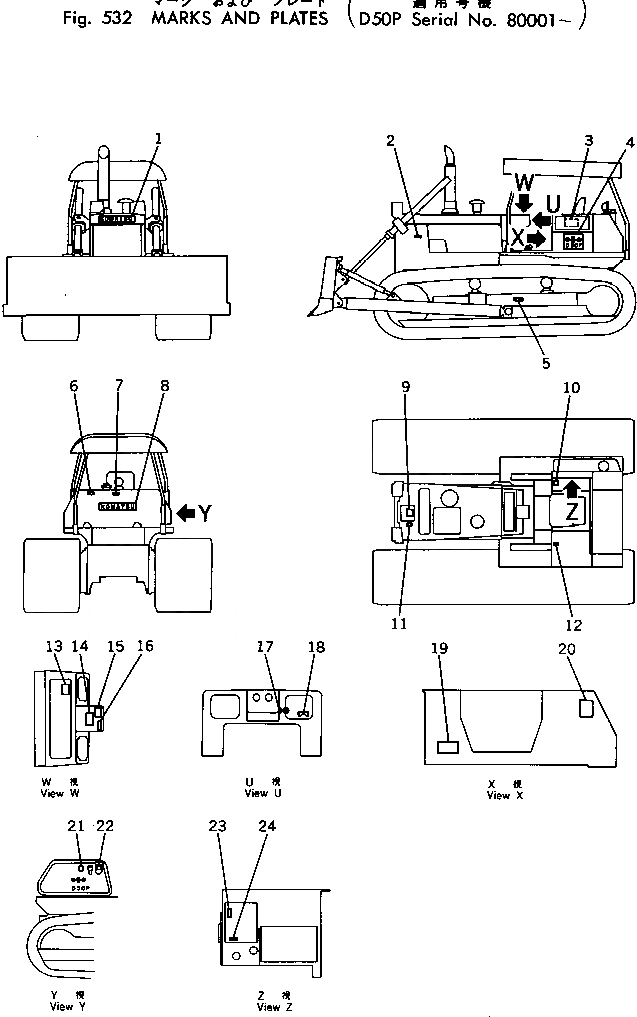

Запчасти Komatsu D50P-17 МАРКИРОВКА ЧАСТИ КОРПУСА

1

144-54-11950

PLATE, MARK

SN: 80001-UP

1шт.

1

175-54-41420

SCREW

SN: 80001-UP

2шт.

1

175-54-41430

WASHER

SN: 80001-UP

2шт.

2

09667-00100

PLATE, SAFETY,ENGINE COVER

SN: 80001-UP

2шт.

3

130-98-71110

CHART

SN: 80001-UP

1шт.

4

09691-05504

PLATE, MARK

SN: 80001-UP

2шт.

5

09657-00110

PLATE, SAFETY,TRACK SHOE ADJUSTING

SN: 80001-UP

2шт.

6

09652-01101

PLATE, CAUTION,FUEL TANK WATER DRAIN

SN: 80001-UP

1шт.

7

09656-01080

PLATE, INSTRUCTION,FUEL TANK STRAINER

SN: 80001-UP

1шт.

8

09690-00630

PLATE, MARK

SN: 80001-UP

1шт.

9

09650-01101

PLATE, INSTRUCTION,RADIATOR WATER LEVEL

SN: 80001-UP

1шт.

10

09670-00004

PLATE, OPERATING,BLADE CONTROL LEVER

SN: 80001-UP

1шт.

11

09668-00100

PLATE, SAFETY,RADIATOR CAP

SN: 80001-UP

1шт.

12

09687-00070

PLATE, OPERATING,MAIN CLUTCH

SN: 80001-UP

1шт.

13

09674-00071

PLATE, OPERATING,TRANSMISSION CONTROL

SN: 80001-UP

1шт.

14

09654-00100

PLATE, SAFETY,WARNING

SN: 80001-UP

1шт.

15

09173-00100

PLATE, SAFETY,CHECK AND SERVICE CAUTION

SN: 80001-UP

1шт.

16

09651-00100

PLATE, SAFETY,BEFORE OPERATING

SN: 80001-UP

1шт.

17

08670-50001

INDICATOR

SN: 80001-UP

1шт.

18

09683-01060

PLATE, OPERATING,STARTING SWITCH

SN: 80001-UP

1шт.

19

09602-01635

PLATE, NAME

SN: 80001-UP

1шт.

20

13F-98-21310

PLATE

SN: 80001-UP

1шт.

21

09653-00100

PLATE, SAFETY,HYDRAULIC TANK CAP

SN: 80001-UP

1шт.

22

09655-01120

PLATE, INSTRUCTION,OIL FILTER

SN: 80001-UP

1шт.

23

120-98-31121

PLATE, OPERATING,BLADE CONTROL LEVER LOCK

SN: 80001-UP

1шт.

24

09685-00004

PLATE, OPERATING,BRAKE LOCK

SN: 80001-UP

1шт.
