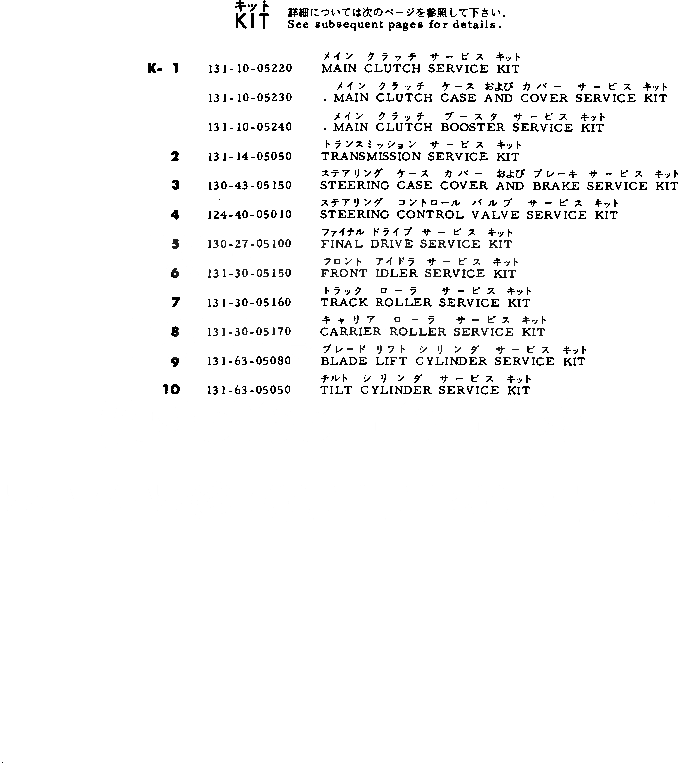

Запчасти Komatsu D50P-16 РЕМ. КОМПЛЕКТЫ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

131-10-05220

SERVICE KIT,MAIN CLUTCH

SN: 65001-UP

1шт.

1

131-10-05230

SERVICE KIT,MAIN CLUTCH

SN: 65001-UP

1шт.

1

07000-05475

O-RING,CASE

SN: 65001-UP

1шт.

1

07002-03634

O-RING,PLUG

SN: 65001-UP

2шт.

1

07002-02434

O-RING,GAUGE

SN: .-UP

2шт.

1

0

O-RING,GAUGE

SN: 65001-.

2шт.

1

131-10-61340

GASKET,COVER

SN: 65001-UP

2шт.

1

07000-63035

O-RING,COVER

SN: 65001-UP

1шт.

1

131-10-61320

GASKET,FILLER

SN: 65001-UP

1шт.

1

07000-02070

O-RING,STRAINER

SN: 65001-UP

1шт.

1

07000-02060

O-RING,PUMP

SN: 65001-UP

1шт.

1

07000-03030

O-RING,PUMP

SN: 65001-UP

1шт.

1

07000-63028

O-RING,PUMP

SN: .-UP

1шт.

1

0

O-RING,PUMP

SN: 65001-.

1шт.

1

07012-10085

SEAL,OIL, SHAFT

SN: 65001-UP

1шт.

1

131-10-41421

LOCK,BOLT

SN: 65001-UP

1шт.

1

131-10-41431

LOCK,BOLT

SN: 65001-UP

1шт.

1

131-10-41440

LOCK,BOLT

SN: 65001-UP

1шт.

1

01650-01012

WASHER,GUIDE

SN: 65001-UP

3шт.

1

01650-00608

WASHER,BOLT

SN: 65001-UP

6шт.

1

04050-04022

PIN,COTTER

SN: 65001-UP

3шт.

1

01650-01412

WASHER,BOLT

SN: 65001-UP

3шт.

1

04050-02018

PIN,COTTER

SN: 65001-UP

2шт.

1

01650-01012

WASHER,BOLT

SN: 65001-UP

3шт.

1

04059-01632

WIRE,BOLT

SN: 65001-UP

2шт.

1

04050-02012

PIN,COTTER

SN: 65001-UP

1шт.

1

04050-02022

PIN,COTTER

SN: 65001-UP

2шт.

1

04050-02018

PIN,COTTER

SN: 65001-UP

1шт.

1

04050-02012

PIN,COTTER

SN: 65001-UP

2шт.

1

131-10-05240

SERVICE KIT,BOOSTER

SN: 65001-UP

1шт.

1

07012-00035

SEAL,OIL, SHAFT

SN: 65001-UP

2шт.

1

07046-04020

PLUG,COVER

SN: 65001-UP

1шт.

1

131-10-15171

GASKET,COVER

SN: 65001-UP

1шт.

1

07000-03028

O-RING,BUSHING

SN: .-UP

1шт.

1

0

O-RING,BUSHING

SN: 65001-.

1шт.

1

07000-03022

O-RING,PIPE

SN: 65001-UP

2шт.

1

131-10-45140

GASKET,CYLINDER

SN: 65001-UP

1шт.

1

131-10-65140

GASKET,COVER

SN: 65001-UP

1шт.

1

131-10-65120

GASKET,COVER

SN: 65001-UP

1шт.

1

04050-04022

PIN,COTTER

SN: 65001-UP

1шт.

2

131-14-05050

SERVICE KIT,TRANSMISSION

SN: 65001-UP

1шт.

2

07002-03634

O-RING,PLUG

SN: 65001-UP

1шт.

2

131-14-42530

GASKET,COVER

SN: 65001-UP

1шт.

2

131-14-42580

GASKET,TUBE

SN: 65001-UP

1шт.

2

131-14-61140

GASKET,FILLER

SN: 65001-UP

1шт.

2

07002-02434

O-RING,GAUGE

SN: .-UP

2шт.

2

07000-03022

O-RING,GAUGE

SN: 65001-.

2шт.

2

07002-05440

O-RING,CASE

SN: 65001-UP

1шт.

2

07000-02145

O-RING,COVER

SN: 65001-UP

3шт.

2

131-14-64170

SEAL,OIL, SHAFT

SN: 65001-UP

1шт.

2

07000-05145

O-RING,CASE

SN: 65001-UP

1шт.

2

07000-03145

O-RING,CASE

SN: 65001-UP

1шт.

2

07012-10075

SEAL,OIL, COUPLING

SN: 65001-UP

1шт.

2

07000-05048

O-RING,PLATE

SN: 65001-UP

1шт.

2

04081-04512

LOCK,BOLT

SN: 65001-UP

1шт.

2

07000-02115

O-RING,COVER

SN: 65001-UP

1шт.

2

07013-20048

SEAL,OIL SHAFT

SN: 65001-UP

1шт.

2

131-14-66140

GASKET,COVER

SN: 65001-UP

1шт.

2

141-14-16170

LOCK,BOLT

SN: 65001-UP

2шт.

2

07000-02125

O-RING,COVER

SN: 65001-UP

1шт.

2

07000-02115

O-RING,COVER

SN: 65001-UP

1шт.

2

07000-02015

O-RING,BRACKET

SN: 65001-UP

2шт.

2

07000-03045

O-RING,CYLINDER

SN: 65001-UP

2шт.

2

01650-01012

WASHER,BOLT

SN: 65001-UP

4шт.

2

04059-01032

WIRE,BOLT

SN: 65001-UP

4шт.

2

04059-01032

WIRE,BOLT

SN: 65001-UP

1шт.

2

01650-01012

WASHER,BOLT

SN: 65001-UP

2шт.

2

04050-05040

PIN,COTTER

SN: 65001-UP

1шт.

2

07000-03100

O-RING,GUIDE

SN: 65001-UP

1шт.

2

131-14-42680

SEAL,COVER

SN: 65001-UP

1шт.

2

131-14-42670

GASKET,BOSS

SN: 65001-UP

2шт.

2

07000-02018

O-RING,SHAFT

SN: 65001-UP

1шт.

2

07012-00030

SEAL,OIL, SHAFT

SN: 65001-UP

1шт.

3

130-43-05150

SERVICE KIT,STEERING BRAKE AND COVER

SN: 65001-UP

1шт.

3

04050-04025

PIN,COTTER

SN: 65001-UP

2шт.

3

125-33-21390

GASKET,BRACKET

SN: .-UP

2шт.

3

0

GASKET,BRACKET

SN: 65001-.

2шт.

3

130-43-51121

GASKET,COVER

SN: 65001-UP

1шт.

3

125-43-22330

GASKET,COVER

SN: 65001-UP

2шт.

3

135-43-31160

GASKET,PLATE

SN: 65001-UP

1шт.

3

130-814-5350

GASKET,COVER

SN: 65001-UP

2шт.

3

06122-03004

SEAL,DUST, SHAFT

SN: 65001-UP

4шт.

3

04050-04025

PIN,COTTER

SN: 65001-UP

4шт.

4

124-40-05010

SERVICE KIT,STEERING CONTROL VALVE

SN: 65001-UP

1шт.

4

07000-03022

O-RING,HOUSING

SN: .-UP

1шт.

4

07000-63022

O-RING,HOUSING

SN: 65001-.

1шт.

4

07012-00025

SEAL,OIL, SHAFT

SN: 65001-UP

2шт.

4

07000-03028

O-RING,COVER

SN: 65001-UP

2шт.

4

125-40-21150

GASKET,HOUSING

SN: 65001-UP

1шт.

4

04050-02045

PIN,VALVE

SN: 65001-UP

1шт.

5

130-27-05100

SERVICE KIT,FINAL DRIVE

SN: 65001-UP

2шт.

5

135-27-11141

GASKET,FINAL DRIVE CASE

SN: 65001-UP

1шт.

5

07000-05155

O-RING,CAGE

SN: 65001-UP

1шт.

5

07013-10090

SEAL,OIL, CAGE

SN: 65001-UP

1шт.

5

130-27-51140

LOCK,NUT

SN: 65001-UP

1шт.

5

145-27-11240

GASKET,FLANGE

SN: 65001-UP

1шт.

5

135-27-11430

LOCK,HUB

SN: 65001-UP

6шт.

5

130-27-00140

O-RING ASS'Y,GUARD

SN: 65001-UP

1шт.

5

0

O-RING,GUARD

SN: 65001-UP

2шт.

5

07000-05260

O-RING,GUARD

SN: 65001-UP

1шт.

5

131-27-42121

LOCK,NUT

SN: 65001-UP

1шт.

5

07000-05220

O-RING,CAGE

SN: 65001-UP

1шт.

5

130-27-00161

O-RING ASS'Y,RETAINER

SN: 65001-UP

1шт.

5

0

O-RING,RETAINER

SN: 65001-UP

2шт.

5

135-27-12320

LOCK,NUT

SN: 65001-UP

1шт.

5

07000-02115

O-RING,CAP

SN: 65001-UP

1шт.

6

131-30-05150

SERVICE KIT,FRONT IDLER

SN: 65001-UP

2шт.

6

07000-03092

O-RING,BUSHING

SN: 65001-UP

2шт.

6

07000-03048

O-RING,SHAFT

SN: 65001-UP

2шт.

6

140-30-00411

O-RING ASS'Y,BUSHING

SN: 65001-UP

2шт.

6

0

O-RING,BUSHING

SN: 65001-UP

2шт.

7

131-30-05160

SERVICE KIT,TRACK ROLLER

SN: 65001-UP

10шт.

7

07000-03092

O-RING,BUSHING

SN: 65001-UP

2шт.

7

07000-03045

O-RING,SHAFT

SN: 65001-UP

2шт.

7

140-30-00411

O-RING ASS'Y,COLLAR

SN: 65001-UP

2шт.

7

0

O-RING,COLLAR

SN: 65001-UP

2шт.

8

131-30-05170

SERVICE KIT,CARRIER ROLLER

SN: 65001-UP

4шт.

8

07000-03048

O-RING,SHAFT

SN: 65001-UP

1шт.

8

130-30-15140

LOCK,PLATE

SN: 65001-UP

1шт.

8

07000-03082

O-RING,COVER

SN: 65001-UP

1шт.

8

140-30-00411

O-RING ASS'Y,BUSHING

SN: 65001-UP

1шт.

8

0

O-RING,BUSHING

SN: 65001-UP

2шт.

9

131-62-05080

SERVICE KIT,LIFT CYLINDER

SN: 65001-UP

2шт.

9

130-63-12173

PACKING,ROD

SN: 65001-UP

1шт.

9

07000-12085

O-RING,CYLINDER HEAD

SN: 65001-UP

1шт.

9

07146-02086

RING,CYLINDER HEAD

SN: 65001-UP

1шт.

9

07000-03070

O-RING,CYLINDER HEAD

SN: 65001-UP

1шт.

9

07016-00558

SEAL,DUST, GRAND

SN: 65001-UP

1шт.

9

07137-00030

SEAL,DUST, PISTON ROD

SN: 65001-UP

2шт.

9

07000-03035

O-RING,PISTON ROD

SN: 65001-UP

2шт.

9

07155-00925

RING,PISTON

SN: 65001-UP

1шт.

9

232-63-12451

PACKING,PISTON

SN: 65001-UP

2шт.

9

07000-13030

O-RING,TUBE

SN: 65001-UP

2шт.

9

07145-00045

SEAL,DUST, CAP

SN: 65001-UP

2шт.

10

131-63-05050

SERVICE KIT,TILT CYLINDER

SN: 65001-UP

1шт.

10

07145-00050

SEAL,DUST, CYLINDER

SN: 65001-UP

2шт.

10

154-63-42373

PACKING,ROD

SN: 65001-UP

1шт.

10

07000-15150

O-RING,CYLINDER HEAD

SN: 65001-UP

1шт.

10

07146-05152

RING,CYLINDER HEAD

SN: 65001-UP

1шт.

10

07000-02090

O-RING,GLAND

SN: 65001-UP

1шт.

10

07016-00708

SEAL,DUST, PISTON ROD

SN: 65001-UP

1шт.

10

141-60-34411

U-PACKING,PISTON

SN: 65001-UP

2шт.

10

07155-01640

RING,PISTON

SN: 65001-UP

1шт.
