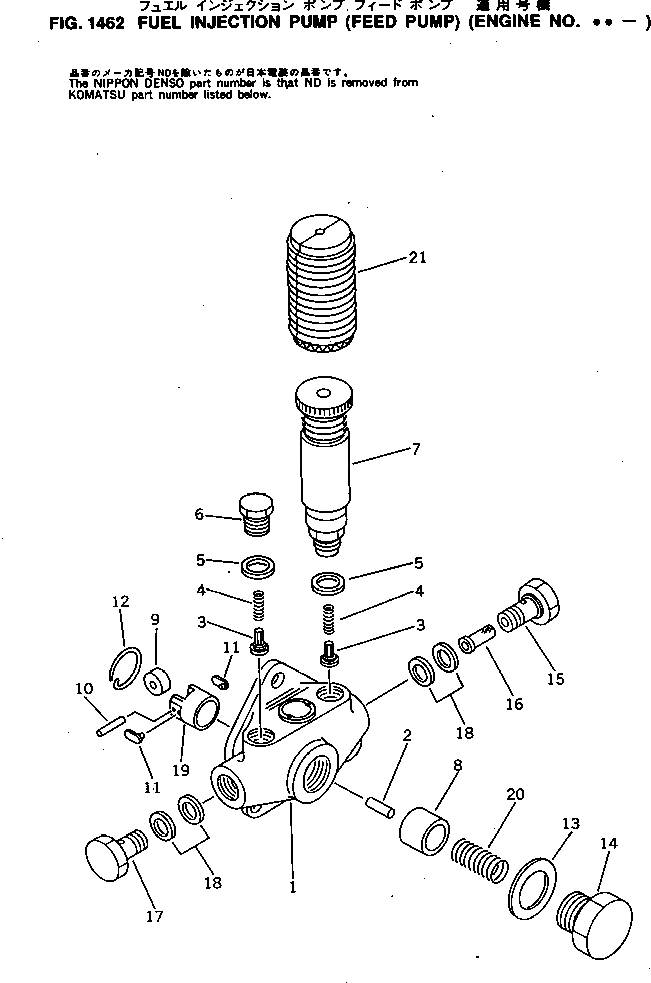

Запчасти Komatsu 4D120-11A ТОПЛ. НАСОС (ПОДКАЧИВАЮЩ. НАСОС)(№..-) ТОПЛИВН. СИСТЕМА

|$0

6110-73-2002

INJECTION PUMP ASS'Y

SN: ..-UP

1шт.

|$1

ND092100-0671

FEED PUMP ASS'Y

SN: ..-UP

1шт.

1

ND092120-0033

HOUSING

SN: ..-UP

1шт.

2

ND092168-0010

ROD, 4.993MM,(BLUE)

SN: ..-UP

1шт.

2

ND092168-0030

ROD, 4.996MM,(RED)

SN: ..-UP

1шт.

2

ND092168-0040

ROD, 4.998MM,(YELLOW)

SN: ..-UP

1шт.

2

ND092168-0050

ROD, 5.000MM,(GREEN)

SN: ..-UP

1шт.

2

ND092168-0060

ROD, 5.002MM,(WHITE)

SN: ..-UP

1шт.

2

ND092168-0070

ROD, 5.004MM,(BROWN)

SN: ..-UP

1шт.

3

ND092121-0011

VALVE

SN: ..-UP

2шт.

4

ND092124-0010

SPRING

SN: ..-UP

2шт.

5

ND092125-0010

GASKET

SN: ..-UP

2шт.

6

ND092126-0010

PLUG

SN: ..-UP

1шт.

7

ND092130-0050

PUMP ASS'Y

SN: ..-UP

1шт.

8

ND092171-0010

PISTON, 21.988MM,(BLUE)

SN: ..-UP

1шт.

8

ND092171-0020

PISTON, 21.990MM,(RED)

SN: ..-UP

1шт.

8

ND092171-0030

PISTON, 21.992MM,(YELLOW)

SN: ..-UP

1шт.

8

ND092171-0040

PISTON, 21.994MM,(GREEN)

SN: ..-UP

1шт.

8

ND092171-0050

PISTON, 21.996MM,(WHITE)

SN: ..-UP

1шт.

9

ND092176-0010

ROLLER

SN: ..-UP

1шт.

10

ND092178-0010

PIN

SN: ..-UP

1шт.

11

ND092179-0050

BLOCK

SN: ..-UP

1шт.

12

ND949072-0940

RING

SN: ..-UP

1шт.

13

ND949018-1240

WASHER, 1MM

SN: ..-UP

1шт.

14

ND092184-0021

PLUG

SN: ..-UP

1шт.

15

ND092223-0070

SCREW

SN: ..-UP

1шт.

16

ND092220-0040

FILTER

SN: ..-UP

1шт.

17

ND949180-0310

SCREW

SN: ..-UP

1шт.

18

ND090222-0070

WASHER

SN: ..-UP

1шт.

19

ND092174-0030

TAPPET

SN: ..-UP

1шт.

20

ND092182-0030

SPRING

SN: ..-UP

1шт.

21

ND090061-0011

COVER

SN: ..-UP

1шт.
