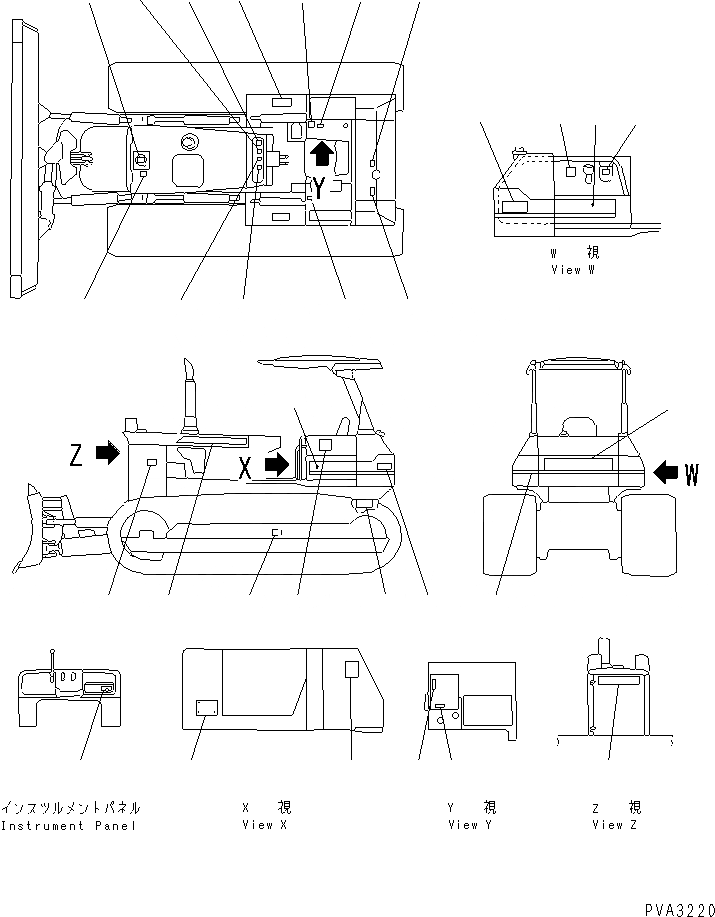

Запчасти Komatsu D50A-18 МАРКИРОВКА (ЯПОН.)(№8-89) МАРКИРОВКА

1

09650-01101

PLATE¤ INSTRUCTION,RADIATOR

SN: 83001-@

1шт.

2

09654-00100

PLATE¤ SAFETY,STARTING AND LEAVING SEAT

SN: 83001-83194

1шт.

3

130-54-75110

PLATE¤ OPERATING,TRANSMISSION CONTROL LEVER

SN: 83190-@

1шт.

|3

09674-00005

PLATE¤ OPERATING,TRANSMISSION CONTROL LEVER

SN: 83001-83189

1шт.

4

120-54-32451

SHEET,ANTISKID

SN: 83001-@

2шт.

5

09670-00004

PLATE¤ OPERATING,BLADE CONTROL LEVER (PAT)

SN: 83001-@

1шт.

|5

09670-00001

PLATE¤ OPERATING,BLADE CONTROL LEVER (A)

SN: 83001-@

1шт.

|5

09670-00004

PLATE¤ OPERATING,BLADE CONTROL LEVER (AT)

SN: 83001-@

1шт.

6

09670-00007

PLATE¤ OPERATING,BLADE CONTROL LEVER (PAT)

SN: 83075-@

1шт.

7

09656-01080

PLATE¤ INSTRUCTION,FUEL TANK STRAINER

SN: 83001-@

1шт.

8

09668-00100

PLATE¤ SAFETY,RADIATOR

SN: 83001-83194

1шт.

9

09651-00100

PLATE¤ SAFETY,BEFORE OPERATING

SN: 83001-83194

1шт.

10

09173-00100

PLATE¤ SAFETY,INSPECTION AND MAINTENANCE

SN: 83001-83194

1шт.

11

09687-32570

PLATE¤ OPERATING,MAIN CLUTCH

SN: 83001-@

1шт.

12

09652-01101

PLATE¤ CAUTION,FUEL TANK

SN: 83001-@

1шт.

13

09653-00100

PLATE¤ SAFETY,HYDRAULIC TANK

SN: 83001-83194

1шт.

14

130-54-85210

PLATE¤ MARK,D50A

SN: 83133-@

1шт.

15

09655-01120

PLATE¤ INSTRUCTION,OIL FILTER

SN: 83001-@

1шт.

16

134-54-55142

PLATE¤ MARK

SN: 83133-@

2шт.

17

09667-00100

PLATE¤ SAFETY,ENGINE ROOM

SN: 83001-83194

1шт.

18

15B-54-15151

PLATE¤ MARK,LINE¤ L.H.

SN: 83050-@

1шт.

|18

15B-54-15141

PLATE¤ MARK,LINE¤ R.H.

SN: 83050-@

1шт.

19

09657-00110

PLATE¤ SAFETY,TRACK ADJUSTING

SN: 83001-83194

2шт.

20

130-54-85110

CHART,OIL

SN: 83001-@

1шт.

21

130-54-85210

PLATE¤ MARK,D50A

SN: 83133-@

1шт.

22

21K-00-22170

PLATE¤ MARK,SYMBOL

SN: 83001-@

1шт.

23

144-54-84122

PLATE¤ MARK,WHITE LINE

SN: 83133-@

3шт.

24

09690-C0400

PLATE¤ MARK,KOMATSU

SN: 83133-@

1шт.

25

09683-01060

PLATE¤ OPERATING,STARTING SWITCH

SN: 83001-@

1шт.

26

09602-01635

PLATE¤ NAME,(LIMITED SUPPLY)

SN: 83001-@

1шт.

|26

04418-13060

SCREW

SN: 83001-@

4шт.

27

130-54-85160

PLATE¤ DATA,(PAT)

SN: 83001-@

1шт.

|27

130-54-85150

PLATE¤ DATA,(A)

SN: 83001-@

1шт.

|27

130-54-85150

PLATE¤ DATA,(AT)

SN: 83001-@

1шт.

28

09685-00005

PLATE¤ OPERATING,BLADE CONTROL LEVER LOCK (PAT)

SN: 83001-@

1шт.

|28

09685-00001

PLATE¤ OPERATING,BLADE CONTROL LEVER LOCK (A)

SN: 83001-@

1шт.

|28

09685-00005

PLATE¤ OPERATING,BLADE CONTROL LEVER LOCK (AT)

SN: 83001-@

1шт.

29

09685-00004

PLATE¤ OPERATING,BRAKE LOCK LEVER

SN: 83001-@

1шт.

30

09690-C0280

PLATE¤ MARK,KOMATSU

SN: 83133-@

1шт.
