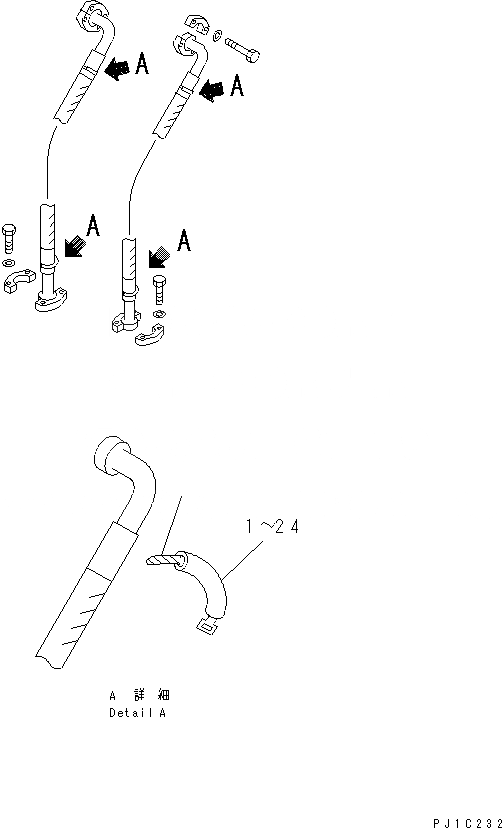

Запчасти Komatsu D475A-3-HD MARKER (ДЛЯ ГИДРАВЛ ШЛАНГИ) (МАТЕРИАЛSUMOTO KOUGYOU)(№89-) ГИДРАВЛИКА

1

198-61-59510

TUBE,(BLADE LIFT LINE)

SN: 10689-UP

2шт.

2

198-61-59520

TUBE,(BLADE LIFT LINE)

SN: 10689-UP

2шт.

3

198-61-59530

TUBE,(HYDRAULIC PUMP DELIVERY LINE)

SN: 10689-UP

2шт.

4

198-61-59540

TUBE,(BLADE TILT AND SOLENOID LINE)

SN: 10689-UP

4шт.

5

198-61-59550

TUBE,(BLADE TILT LINE)

SN: 10689-UP

2шт.

6

198-61-59560

TUBE,(HYDRAULIC PUMP DELIVERY LINE)

SN: 10689-UP

2шт.

7

198-61-59570

TUBE,(HYDRAULIC VALVE LINE)

SN: 10689-UP

2шт.

8

198-61-59580

TUBE,(HYDRAULIC PUMP LINE)

SN: 10689-UP

2шт.

9

198-61-59590

TUBE,(RIPPER LINE)

SN: 10689-UP

4шт.

10

198-61-59610

TUBE,(RIPPER LINE)

SN: 10689-UP

2шт.

11

198-61-59620

TUBE,(RIPPER LINE)

SN: 10689-UP

2шт.

12

198-61-59630

TUBE,(BLADE LIFT LINE¤MAIN FRAME)

SN: 10689-UP

2шт.

13

198-61-59640

TUBE,(BLADE LIFT LINE¤MAIN FRAME)

SN: 10689-UP

2шт.

14

198-61-59650

TUBE,(BLADE TILT LINE¤MAIN FRAME)

SN: 10689-UP

4шт.

15

198-61-59660

TUBE,(RADIATOR GUARD¤L.H.)

SN: 10689-UP

4шт.

16

198-61-59670

TUBE,(RADIATOR GUARD¤R.H.)

SN: 10689-UP

2шт.

17

198-61-59680

TUBE,(RADIATOR GUARD¤R.H.)

SN: 10689-UP

2шт.

18

198-61-59690

TUBE,(BLADE LIFT CYLINDER LINE)

SN: 10689-UP

4шт.

19

198-61-59710

TUBE,(BLADE LIFT CYLINDER LINE)

SN: 10689-UP

4шт.

20

198-61-59720

TUBE,(RIPPER CYLINDER LINE)

SN: 10689-UP

16шт.

21

198-61-59730

TUBE,(TRACK FRAME TO TILT FRAME)

SN: 10689-UP

4шт.

22

198-61-59740

TUBE,(STRAIGHT TILT FRAME)

SN: 10689-UP

4шт.

23

198-61-59750

TUBE,(TILT FRAME TO BLADE TILT CYL)

SN: 10689-UP

2шт.

24

198-61-59760

TUBE,(TILT FRAME TO BLADE TILT CYL)

SN: 10689-UP

2шт.

25

08034-20834

BAND

SN: 10689-UP

78шт.
