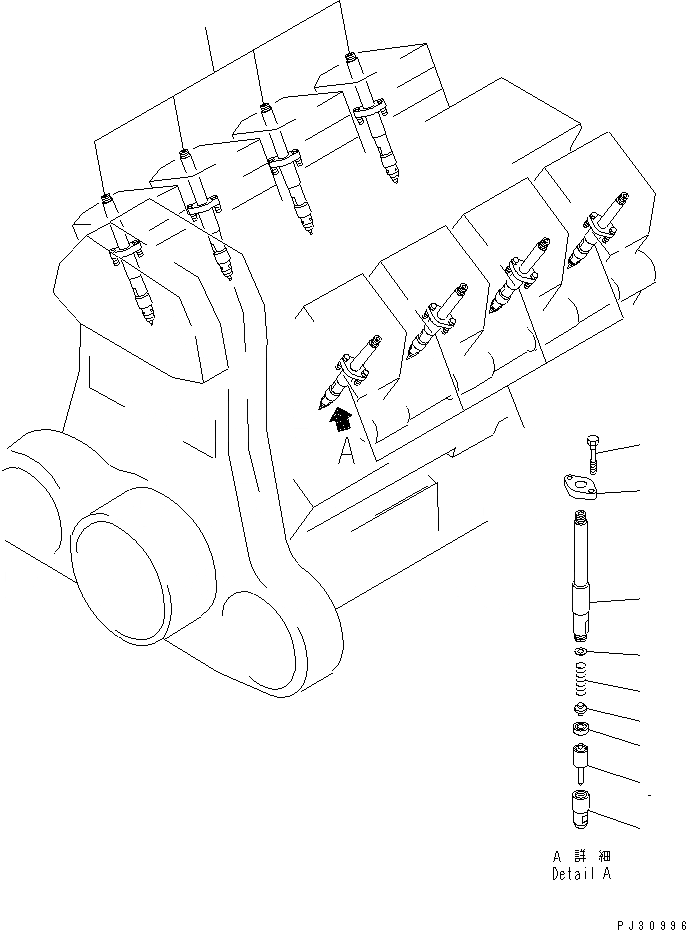

Запчасти Komatsu SA8V170-1A ТОПЛИВН. ФОРСУНКА И СЛИВНАЯ ТРУБКА ТОПЛИВН. СИСТЕМА

|$0

6162-13-3401

NOZZLE HOLDER ASS'Y

SN: 10001-UP

8шт.

1

6162-13-3110

HOLDER ASS'Y

SN: 10001-UP

1шт.

|$$3

THE ZEXEL PART NUMBER IS THAT DK IS REMOVED FROM KOMATSU PART NUMBER LISTED BELOW.

-1шт.

2

DK150510-0700

ROD,PUSH

SN: 10001-UP

1шт.

3

DK150562-4500

SPRING,NOZZLE

SN: 10001-UP

1шт.

4

DK150523-5000

SHIM, 0.50MM

SN: 10001-UP

-2шт.

4

DK150523-5200

SHIM, 0.54MM

SN: 10001-UP

-2шт.

4

DK150523-5400

SHIM, 0.58MM

SN: 10001-UP

-2шт.

4

DK150523-5600

SHIM, 0.62MM

SN: 10001-UP

-2шт.

4

DK150523-5800

SHIM, 0.66MM

SN: 10001-UP

-2шт.

4

DK150523-6000

SHIM, 0.70MM

SN: 10001-UP

-2шт.

4

DK150523-6200

SHIM, 0.74MM

SN: 10001-UP

-2шт.

4

DK150523-6400

SHIM, 0.78MM

SN: 10001-UP

-2шт.

4

DK150523-6600

SHIM, 0.82MM

SN: 10001-UP

-2шт.

4

DK150523-6800

SHIM, 0.86MM

SN: 10001-UP

-2шт.

4

DK150523-7000

SHIM, 0.90MM

SN: 10001-UP

-2шт.

4

DK150523-7200

SHIM, 0.94MM

SN: 10001-UP

-2шт.

4

DK150523-7400

SHIM, 0.98MM

SN: 10001-UP

-2шт.

4

DK150523-7500

SHIM, 1.00MM

SN: 10001-UP

-2шт.

5

DK150524-4400

SPACER

SN: 10001-UP

1шт.

6

DK150650-8000

NUT,RETAINER

SN: 10001-UP

1шт.

7

DK150628-1900

FLANGE

SN: 10001-UP

1шт.

8

6162-13-3421

NOZZLE

SN: 10001-UP

1шт.

9

6162-13-3510

BOLT

SN: 10001-UP

16шт.

|$0

6162-13-3401

NOZZLE HOLDER ASS'Y

SN: 10001-UP

8шт.

1

6162-13-3110

HOLDER ASS'Y

SN: 10001-UP

1шт.

|$$3

THE ZEXEL PART NUMBER IS THAT DK IS REMOVED FROM KOMATSU PART NUMBER LISTED BELOW.

-1шт.

2

DK150510-0700

ROD,PUSH

SN: 10001-UP

1шт.

3

DK150562-4500

SPRING,NOZZLE

SN: 10001-UP

1шт.

4

DK150523-5000

SHIM, 0.50MM

SN: 10001-UP

-2шт.

4

DK150523-5200

SHIM, 0.54MM

SN: 10001-UP

-2шт.

4

DK150523-5400

SHIM, 0.58MM

SN: 10001-UP

-2шт.

4

DK150523-5600

SHIM, 0.62MM

SN: 10001-UP

-2шт.

4

DK150523-5800

SHIM, 0.66MM

SN: 10001-UP

-2шт.

4

DK150523-6000

SHIM, 0.70MM

SN: 10001-UP

-2шт.

4

DK150523-6200

SHIM, 0.74MM

SN: 10001-UP

-2шт.

4

DK150523-6400

SHIM, 0.78MM

SN: 10001-UP

-2шт.

4

DK150523-6600

SHIM, 0.82MM

SN: 10001-UP

-2шт.

4

DK150523-6800

SHIM, 0.86MM

SN: 10001-UP

-2шт.

4

DK150523-7000

SHIM, 0.90MM

SN: 10001-UP

-2шт.

4

DK150523-7200

SHIM, 0.94MM

SN: 10001-UP

-2шт.

4

DK150523-7400

SHIM, 0.98MM

SN: 10001-UP

-2шт.

4

DK150523-7500

SHIM, 1.00MM

SN: 10001-UP

-2шт.

5

DK150524-4400

SPACER

SN: 10001-UP

1шт.

6

DK150650-8000

NUT,RETAINER

SN: 10001-UP

1шт.

7

DK150628-1900

FLANGE

SN: 10001-UP

1шт.

8

6162-13-3421

NOZZLE

SN: 10001-UP

1шт.

9

6162-13-3510

BOLT

SN: 10001-UP

16шт.
