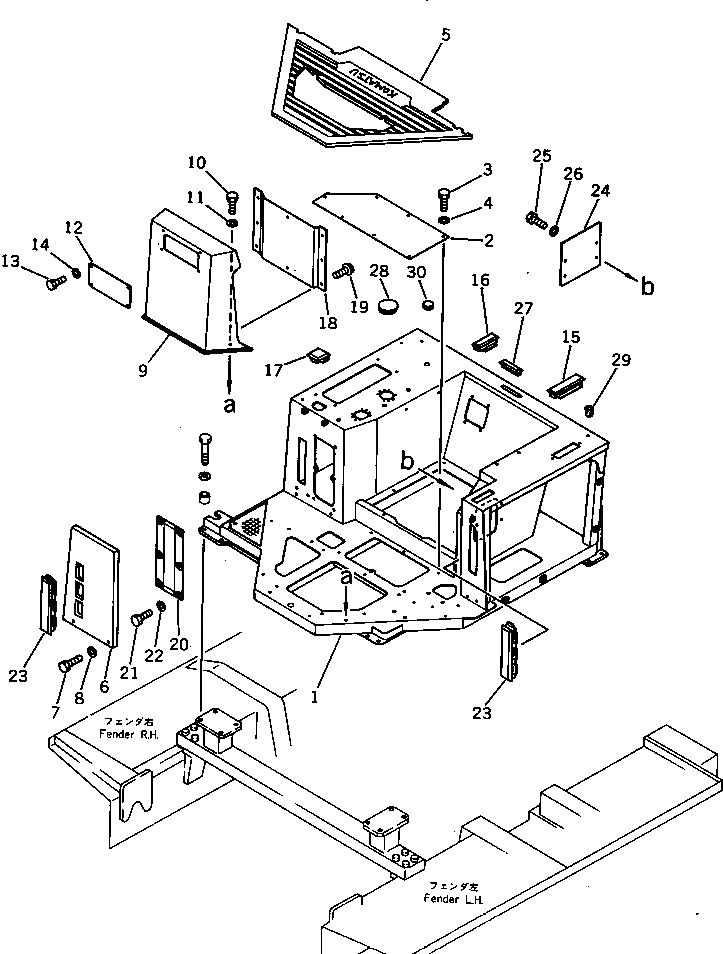

Запчасти Komatsu D475A-1 ОСНОВН. КОНСТРУКЦИЯ ЧАСТИ КОРПУСА

1

195-54-45110

FRAME

SN: 10001-UP

1шт.

2

195-54-45120

COVER

SN: 10001-UP

1шт.

3

01010-51225

BOLT

SN: 10001-UP

7шт.

4

01643-31232

WASHER

SN: 10001-UP

7шт.

5

195-Z11-2380

MAT

SN: 10001-UP

1шт.

6

195-54-45140

COVER

SN: 10001-UP

1шт.

7

01010-51255

BOLT

SN: 10001-UP

2шт.

8

01643-31232

WASHER

SN: 10001-UP

2шт.

9

195-54-45150

BRACKET,(WITHOUT CAB)

SN: 10001-UP

1шт.

10

01010-51435

BOLT,(WITHOUT CAB)

SN: 10001-UP

4шт.

11

01643-31445

WASHER,(WITHOUT CAB)

SN: 10001-UP

4шт.

12

195-54-45160

COVER,(WITHOUT CAB)

SN: 10001-UP

1шт.

13

01010-50616

BOLT,(WITHOUT CAB)

SN: 10001-UP

4шт.

14

01643-30623

WASHER,(WITHOUT CAB)

SN: 10001-UP

4шт.

15

195-54-45440

CAP,(WITHOUT CAB)

SN: 10001-UP

1шт.

16

195-54-45410

CAP,(WITHOUT CAB)

SN: 10001-UP

1шт.

17

195-54-45420

CAP,(WITHOUT CAB)

SN: 10001-UP

1шт.

18

195-54-45220

COVER,(WITHOUT CAB)

SN: 10001-UP

1шт.

19

01439-00814

BOLT,(WITHOUT CAB)

SN: 10001-UP

8шт.

20

195-54-45130

COVER,(WITHOUT AIR CONDITIONER)

SN: 10001-UP

1шт.

21

01010-51225

BOLT,(WITHOUT AIR CONDITIONER)

SN: 10001-UP

6шт.

22

01643-31232

WASHER,(WITHOUT AIR CONDITIONER)

SN: 10001-UP

6шт.

23

195-54-45450

CAP,(WITHOUT AIR CONDITIONER)

SN: 10001-UP

2шт.

24

195-54-46251

PLATE,(WITHOUT AIR CONDITIONER)

SN: 10001-UP

1шт.

25

01010-50616

BOLT,(WITHOUT AIR CONDITIONER)

SN: 10001-UP

4шт.

26

01643-30623

WASHER,(WITHOUT AIR CONDITIONER)

SN: 10001-UP

4шт.

27

195-54-45430

CAP,(WITHOUT AIR CONDITIONER)

SN: 10001-UP

1шт.

28

195-54-45460

CAP,(WITHOUT RIPPER)

SN: 10001-UP

1шт.

29

07049-01418

PLUG

SN: 10001-UP

9шт.

30

09415-01610

CAP,(WITHOUT RIPPER)

SN: 10001-UP

1шт.
