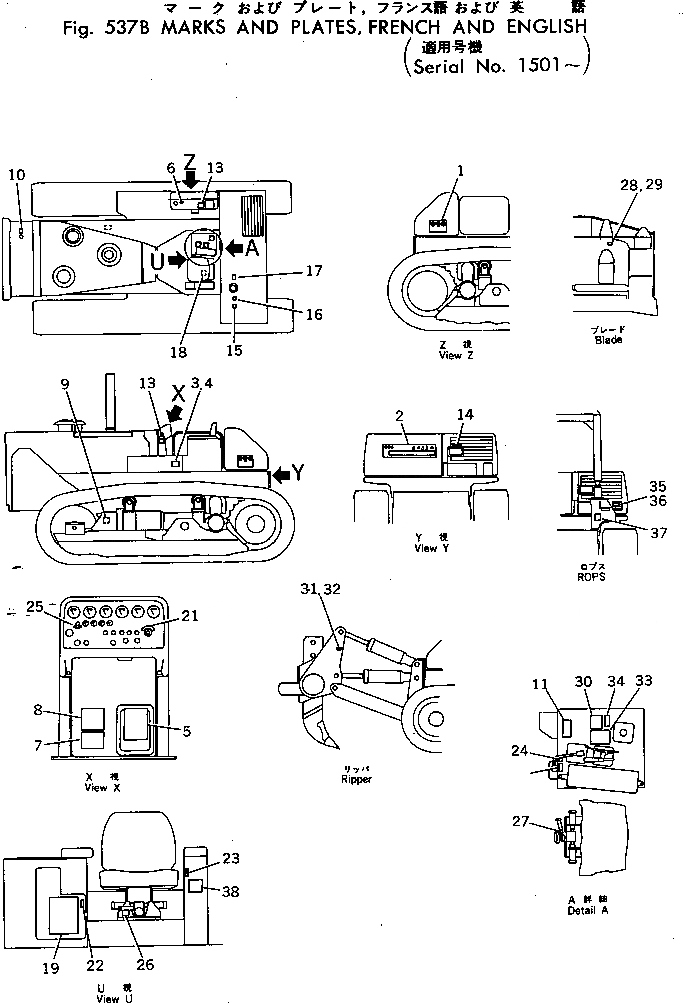

Запчасти Komatsu D455A-1 МАРКИРОВКА¤ ФРАНЦИЯ И АНГЛ.(№-) ЧАСТИ КОРПУСА

1

09691-43455

PLATE, MARK,SMALL

SN: 1501-UP

2шт.

2

09692-44455

PLATE, MARK,LARGE

SN: 1501-UP

1шт.

3

09602-52643

PLATE, NAME,(FOR FRANCE)

SN: 1501-UP

1шт.

3

09602-51643

PLATE, NAME,(EXCEPT FRANCE)

SN: 1501-UP

1шт.

4

01220-60412

SCREW

SN: 1501-UP

4шт.

5

198-98-16130

PLATE,BEFORE OPERATING MACHINE

SN: 1501-UP

1шт.

6

09653-05000

PLATE, SAFETY,HYDRAULIC TANK

SN: 1501-UP

1шт.

7

09666-05000

PLATE, SAFETY,FIRE

SN: 1501-UP

1шт.

8

09654-05000

PLATE, SAFETY,STARTING AND PARKING

SN: 1501-UP

1шт.

9

198-98-16150

PLATE, SAFETY,TRACK TENSION

SN: 1501-UP

2шт.

10

09668-05000

PLATE, SAFETY,RADIATOR

SN: 1501-UP

1шт.

11

198-98-16211

PLATE,SPIN TURN

SN: 1501-UP

1шт.

12

198-98-16160

PLATE, CAUTION

SN: 1501-UP

1шт.

13

198-98-16230

PLATE, CAUTION,OIL FILTER

SN: 1501-UP

1шт.

14

198-98-16230

PLATE, CAUTION,OIL FILTER

SN: 1501-UP

1шт.

15

09656-51080

PLATE, INSTRUCTION,FUEL TANK

SN: 1501-UP

1шт.

16

09652-51100

PLATE, CAUTION,FUEL TANK

SN: 1501-UP

1шт.

17

09101-05000

PLATE, CAUTION,FUEL

SN: 1501-UP

1шт.

18

07843-51064

PLATE, CAUTION,BRAKE CYLINDER

SN: 1501-UP

2шт.

19

198-98-16222

CHART

SN: 1501-UP

1шт.

20

198-98-12330

PLATE,SPIN TURN, L.H. AND R.H.

SN: 1501-UP

1шт.

21

198-98-12410

PLATE, OPERATING,STARTING SWITCH

SN: 1501-UP

1шт.

22

09685-00001

PLATE, OPERATING,LOCK LEVER

SN: 1501-UP

1шт.

23

09685-00002

PLATE, OPERATING,LOCK LEVER

SN: 1501-UP

1шт.

24

09679-02002

PLATE, OPERATING,HORN SWITCH

SN: 1501-UP

1шт.

25

198-98-12420

PLATE, NAME,WORNING CHECK SWITCH

SN: 1501-UP

1шт.

26

178-98-12380

PLATE, OPERATING,OPERATOR'S WEIGHT

SN: 1501-UP

1шт.

27

178-98-12390

PLATE, OPERATING,SEAT

SN: 1501-UP

1шт.

28

09601-50835

PLATE, NAME

SN: 1501-UP

1шт.

29

04418-13060

SCREW

SN: 1501-UP

4шт.

30

09670-00003

PLATE, OPERATING,BLADE

SN: 1501-UP

1шт.

31

09601-50835

PLATE, NAME

SN: 1501-UP

1шт.

32

04418-13060

SCREW

SN: 1501-UP

4шт.

33

09671-00002

PLATE, OPERATING,RIPPER

SN: 1501-UP

1шт.

34

195-98-13690

PLATE, OPERATING,PIN PULLER LEVER

SN: 1501-UP

1шт.

35

198-98-16610

PLATE, NAME,ROPS

SN: 1501-UP

1шт.

36

04418-13060

SCREW

SN: 1501-UP

4шт.

37

198-98-16270

PLATE,ROPS TURN

SN: 1501-UP

1шт.

38

198-98-16310

PLATE, CAUTION,SEAT BELT

SN: 1501-UP

1шт.
