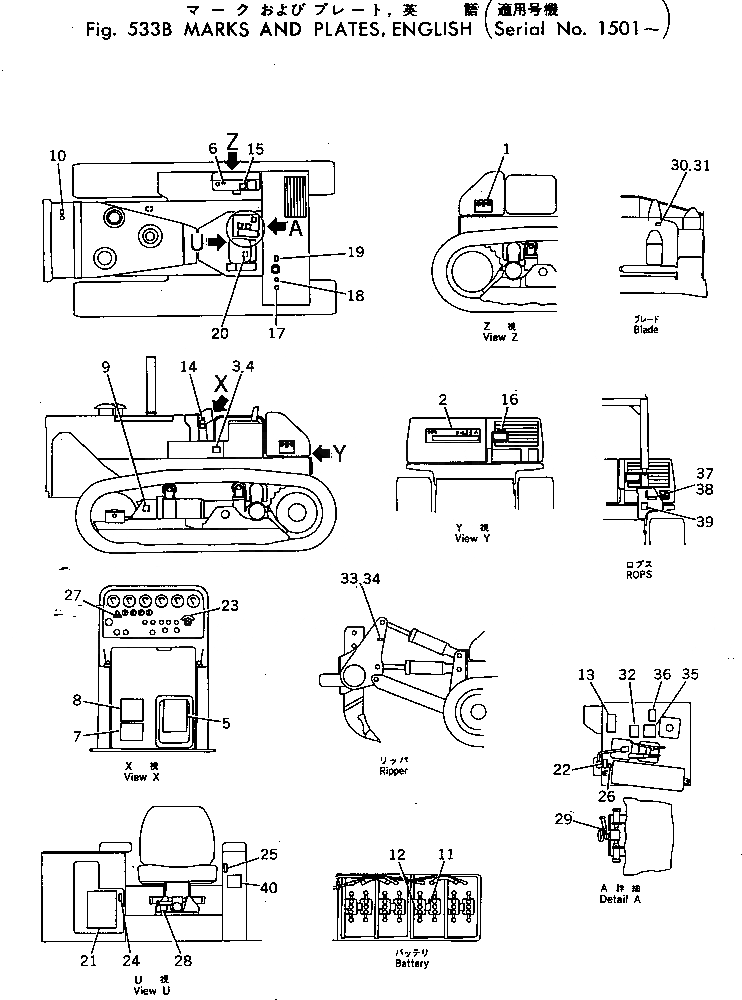

Запчасти Komatsu D455A-1 МАРКИРОВКА¤ АНГЛ.(№-) ЧАСТИ КОРПУСА

1

09691-43455

PLATE, MARK,SMALL

SN: 1501-UP

2шт.

2

09692-44455

PLATE, MARK,LARGE

SN: 1501-UP

1шт.

3

09602-01643

PLATE, NAME

SN: 1501-UP

1шт.

4

01220-60412

SCREW

SN: 1501-UP

4шт.

5

198-98-12350

PLATE, SAFETY,BEFORE OPERATING MACHINE

SN: 1501-UP

1шт.

6

09653-03000

PLATE, SAFETY,HYDRAULIC TANK

SN: 1501-UP

1шт.

7

09666-03000

PLATE, SAFETY,FIRE

SN: 1501-UP

1шт.

8

09654-03000

PLATE, SAFETY,STARTING AND PARKING

SN: 1501-UP

1шт.

9

198-98-12370

PLATE, SAFETY,TRACK TENSION

SN: 1501-UP

2шт.

10

09668-03000

PLATE, SAFETY,RADIATOR

SN: 1501-UP

1шт.

11

09664-30081

PLATE, INSTRUCTION,BATTERY

SN: 1501-UP

1шт.

12

09664-30065

PLATE, INSTRUCTION,DISTRIBUTER ON BATTERY

SN: 1501-UP

1шт.

13

198-98-12211

PLATE, SAFETY,SPIN TURN

SN: 1501-UP

1шт.

14

198-98-12320

PLATE, CAUTION

SN: 1501-UP

1шт.

15

09655-30120

PLATE, INSTRUCTION,OIL FILTER

SN: 1501-UP

1шт.

16

09655-30120

PLATE, INSTRUCTION,OIL FILTER

SN: 1501-UP

1шт.

17

09656-30080

PLATE, INSTRUCTION,FUEL STRAINER

SN: 1501-UP

1шт.

18

09652-30100

PLATE, CAUTION,FUEL TANK

SN: 1501-UP

1шт.

19

09101-03000

PLATE, CAUTION,FUEL

SN: 1501-UP

1шт.

20

07843-30064

PLATE, CAUTION,BRAKE CYLINDER

SN: 1501-UP

2шт.

21

198-98-12222

CHART, LUBRICATION

SN: 1501-UP

1шт.

22

198-98-12330

PLATE,SPIN TURN

SN: 1501-UP

1шт.

23

198-98-12410

PLATE, OPERATING,STARTING SWITCH

SN: 1501-UP

1шт.

24

09685-00001

PLATE, OPERATING,LOCK LEVER

SN: 1501-UP

1шт.

25

09685-00002

PLATE, OPERATING,LOCK LEVER

SN: 1501-UP

1шт.

26

09679-02002

PLATE, OPERATING,HORN SWITCH

SN: 1501-UP

1шт.

27

198-98-12420

PLATE, NAME,WORNING CHECK SWITCH

SN: 1501-UP

1шт.

28

178-98-12330

PLATE, OPERATING,OPERATOR'S WEIGHT

SN: 1501-UP

1шт.

29

178-98-12340

PLATE, OPERATING,SEAT

SN: 1501-UP

1шт.

30

09601-00835

PLATE, NAME

SN: 1501-UP

1шт.

31

04418-13060

SCREW

SN: 1501-UP

4шт.

32

09670-00003

PLATE, OPERATING,BLADE

SN: 1501-UP

1шт.

33

09601-00835

PLATE, NAME

SN: 1501-UP

1шт.

34

04418-13060

SCREW

SN: 1501-UP

4шт.

35

09671-00002

PLATE, OPERATING,RIPPER

SN: 1501-UP

1шт.

36

195-98-13690

PLATE, OPERATING,PIN PULLER LEVER

SN: 1501-UP

1шт.

37

195-98-12620

PLATE, NAME,ROPS(FOR U.S.A. AND CANADA)

SN: 1501-UP

1шт.

37

195-98-12610

PLATE, NAME,ROPS(EXCEPT U.S.A. AND CANADA)

SN: 1501-UP

1шт.

38

04418-13060

SCREW

SN: 1501-UP

4шт.

39

198-98-12340

PLATE,ROPS TURN

SN: 1501-UP

1шт.

40

195-98-12940

PLATE, CAUTION,SEAT BELT

SN: 1501-UP

1шт.
