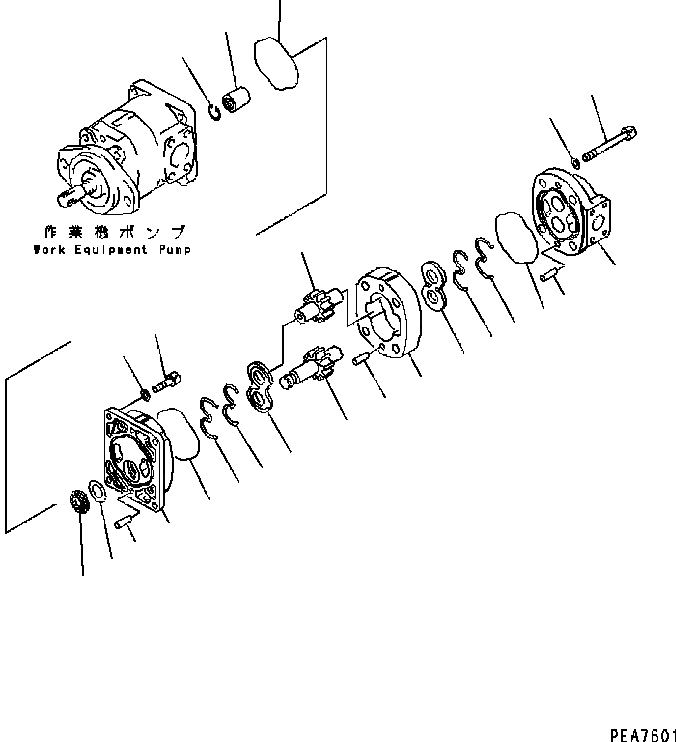

Запчасти Komatsu D41P-6 ОСНОВН. НАСОС (ДЛЯ РУЛЕВ. УПРАВЛЕНИЕ) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

705-52-21170

PUMP ASS'Y

SN: B40001-UP

1шт.

|$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOW IN FIGS. Y1600-05A0 AND Y1600-06A0.

-1шт.

|1

705-12-29640

PUMP ASS'Y, STEERING (SAR(2)28)

SN: B40001-UP

1шт.

1

0

BRACKET

SN: B40001-UP

1шт.

|1

0

BUSHING

SN: B40001-UP

2шт.

2

0

CASE, GEAR

SN: B40001-UP

1шт.

3

0

COVER ASS'Y

SN: B40001-UP

1шт.

|3

0

BUSHING

SN: B40001-UP

2шт.

4

0

GEAR, DRIVE

SN: B40001-UP

1шт.

5

0

GEAR, DRIVE

SN: B40001-UP

1шт.

6

0

PLATE, SIDE

SN: B40001-UP

2шт.

7

0

RING, BACK-UP

SN: B40001-UP

2шт.

8

0

RING, SEAL

SN: B40001-UP

2шт.

9

0

O-RING

SN: B40001-UP

2шт.

10

0

PIN, DOWEL

SN: B40001-UP

6шт.

11

0

BOLT

SN: B40001-UP

4шт.

12

0

WASHER

SN: B40001-UP

4шт.

13

705-17-02870

PLATE

SN: B40001-UP

1шт.

14

705-17-02950

SEAL, OIL

SN: B40001-UP

1шт.

15

705-17-02310

COUPLING

SN: B40001-UP

1шт.

16

04065-02012

RING, SNAP

SN: B40001-UP

1шт.

17

705-17-02420

O-RING

SN: B40001-UP

1шт.

18

01252-61035

BOLT

SN: B40001-UP

4шт.

19

01643-51032

WASHER

SN: B40001-UP

4шт.
