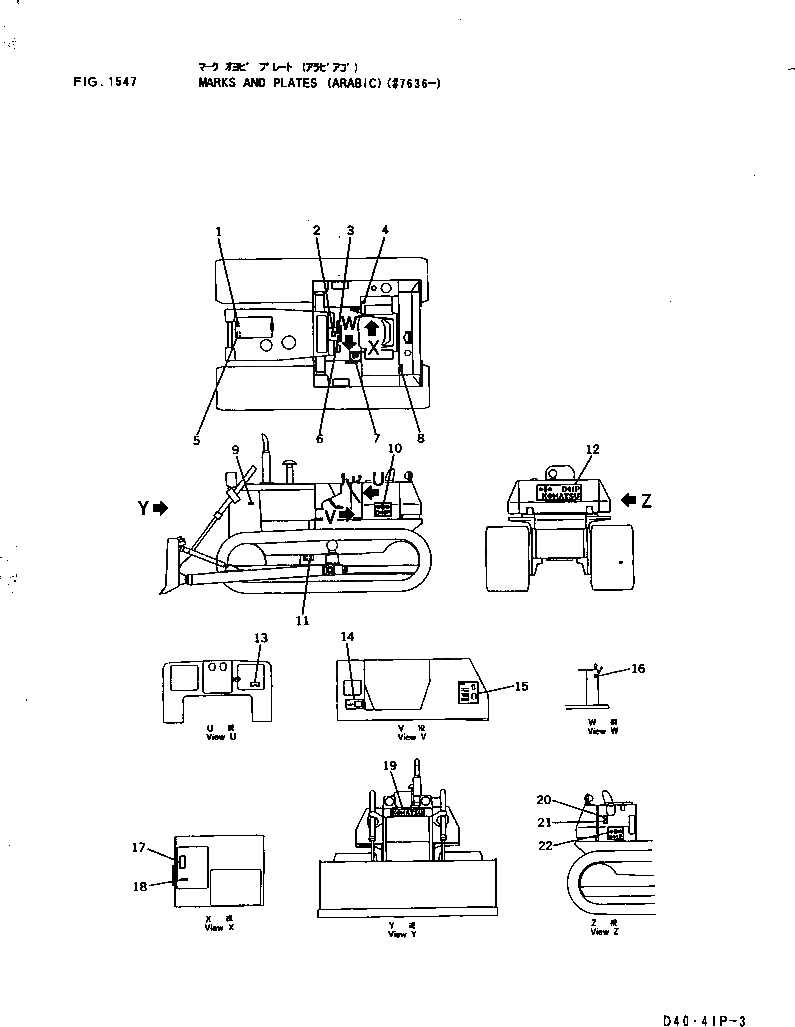

Запчасти Komatsu D41P-3 МАРКИРОВКА (ПОРТУГАЛ.) ЧАСТИ КОРПУСА

1

09668-02000

PLATE, SAFETY,RADIATOR CAP

SN: 6001-UP

1шт.

2

09654-02000

PLATE, SAFETY,BEFORE AND AFTER OPERATION

SN: 6001-UP

1шт.

3

09173-02000

PLATE, SAFETY,INSPECTION AND MAINTENANCE

SN: 6001-UP

1шт.

4

09670-00004

PLATE, OPERATING,WORK EQUIPMENT

SN: 6001-UP

1шт.

5

09650-21103

PLATE, INSTRUCTION,RADIATOR

SN: 6001-UP

1шт.

6

09651-02000

PLATE, SAFETY,BEFORE OPERATING

SN: 6001-UP

1шт.

7

124-54-32251

PLATE, OPERATING,TRANSMISSION

SN: 6001-UP

1шт.

7

04418-03060

SCREW

SN: 6001-UP

6шт.

8

09652-21101

PLATE, CAUTION,FUEL TANK

SN: 6001-UP

1шт.

9

09667-02000

PLATE, SAFETY,ENGINE COVER

SN: 6001-UP

2шт.

10

09691-03414

PLATE, MARK,D41P

SN: 6001-UP

1шт.

11

09657-02011

PLATE, SAFETY,TRACK SHOE ADJUSTING

SN: 6001-UP

2шт.

12

09692-05414

PLATE, MARK,D41P

SN: 6001-UP

1шт.

13

09683-21060

PLATE, OPERATING,STARTING SWITCH

SN: 6001-UP

1шт.

14

09602-21635

PLATE, NAME,(LIMITED SUPPLY)

SN: 6001-UP

1шт.

14

04418-13060

SCREW

SN: 6001-UP

4шт.

15

124-54-36211

CHART, OIL

SN: 6001-UP

1шт.

16

09685-00002

PLATE, OPERATING,LEVER LOCK

SN: 6001-UP

1шт.

17

12F-54-36221

PLATE, OPERATING,LEVER LOCK

SN: 6001-UP

1шт.

18

09685-00001

PLATE, OPERATING,PARKING BRAKE

SN: 6001-UP

1шт.

19

120-54-31211

PLATE, MARK,KOMATSU

SN: 6001-UP

1шт.

19

175-54-41420

SCREW

SN: 6001-UP

2шт.

19

175-54-41430

WASHER

SN: 6001-UP

2шт.

20

09653-02000

PLATE, SAFETY,HYDRAULIC TANK

SN: 6001-UP

1шт.

21

120-54-36221

PLATE, CAUTION,HYDRAULIC FILTER

SN: 6001-UP

1шт.

22

09691-03414

PLATE, MARK,D41P

SN: 6001-UP

1шт.
