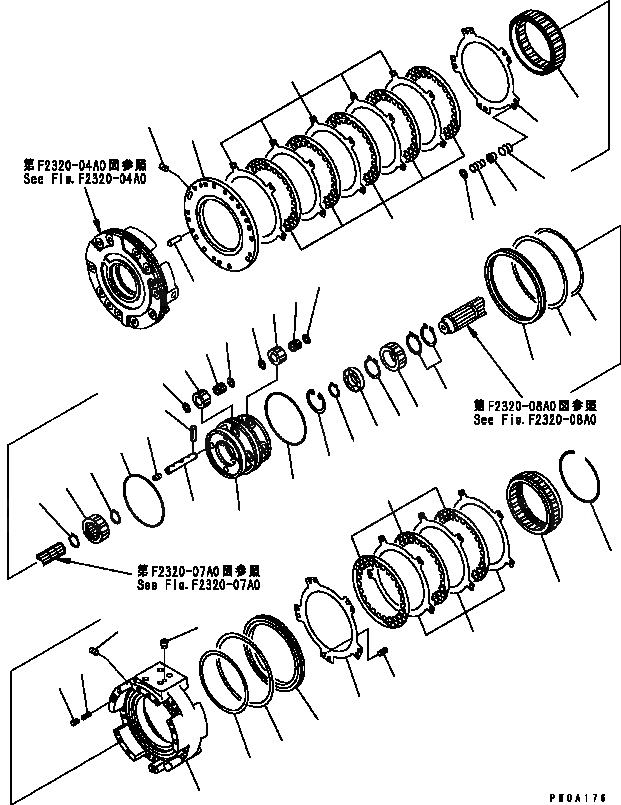

Запчасти Komatsu D41E-6 ТРАНСМИССИЯ (3 МУФТА И ПЕРЕД. МУФТА) СИЛОВАЯ ПЕРЕДАЧА И КОНЕЧНАЯ ПЕРЕДАЧА

|1

124-15-51010

TRANSMISSION ASSEMBLY

SN: B40001-UP

1шт.

|$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2320-01A0 TO F2320-13A0.

-1шт.

1

124-15-52640

GEAR, RING

SN: B40001-UP

1шт.

2

113-15-29510

RING

SN: B40001-UP

1шт.

3

113-15-22920

SPRING, (L= 29.0)

SN: B40001-UP

5шт.

4

124-15-52710

DISC

SN: B40001-UP

3шт.

5

113-15-22720

PLATE

SN: B40001-UP

1шт.

6

113-15-22730

PLATE

SN: B40001-UP

3шт.

7

124-15-52230

GEAR, 34 TEETH

SN: B40001-UP

1шт.

8

04064-04819

RING

SN: B40001-UP

3шт.

|9

124-15-01030

HOUSING ASSEMBLY, 3RD AND FORWARD

SN: B40001-UP

1шт.

9

0

HOUSING, 3RD AND FORWARD

SN: B40001-UP

1шт.

10

145-14-11320

PLUG

SN: B40001-UP

1шт.

11

07043-70108

PLUG

SN: B40001-UP

1шт.

12

103-15-22730

PISTON

SN: B40001-UP

1шт.

13

103-15-29210

SEAL (K1)

SN: B40001-UP

14

113-15-29220

RING, SEAL (K1)

SN: B40001-UP

15

124-15-52750

PISTON

SN: B40001-UP

16

113-15-29250

RING (K1)

SN: B40001-UP

17

113-15-29261

RING (K1)

SN: B40001-UP

18

287-15-15360

PISTON

SN: B40001-UP

1шт.

19

195-15-15261

SPRING, (L= 25.4)

SN: B40001-UP

1шт.

20

113-15-21290

PIN, (D=10.0, L= 35.0)

SN: B40001-UP

2шт.

21

124-15-52320

CARRIER

SN: B40001-UP

1шт.

22

113-15-32560

WASHER, THRUST

SN: B40001-UP

16шт.

23

124-15-52420

GEAR, 19 TEETH

SN: B40001-UP

8шт.

24

124-15-59420

BEARING

SN: B40001-UP

8шт.

|25

12G-15-01040

SHAFT ASSEMBLY

SN: B40001-UP

4шт.

25

0

SHAFT

SN: B40001-UP

1шт.

26

145-14-11320

PLUG

SN: B40001-UP

1шт.

27

124-15-52960

PIN, (D= 3.0, L= 14.0)

SN: B40001-UP

4шт.

28

113-15-29240

SEAL

SN: B40001-UP

2шт.

29

06000-06007

BEARING

SN: B40001-UP

1шт.

30

04065-06220

RING

SN: B40001-UP

1шт.

31

04064-03515

RING

SN: B40001-UP

1шт.

32

124-15-52220

GEAR, 34 TEETH

SN: B40001-UP

1шт.

33

04064-03215

RING

SN: B40001-UP

2шт.

34

124-15-52631

GEAR, RING

SN: B40001-UP

1шт.

35

124-15-52710

DISC

SN: B40001-UP

5шт.

36

113-15-22720

PLATE

SN: B40001-UP

1шт.

37

113-15-22730

PLATE

SN: B40001-UP

5шт.

38

01643-51032

WASHER

SN: B40001-UP

10шт.

39

362-15-12810

GUIDE

SN: B40001-UP

5шт.

40

113-15-42910

SPRING, (L= 18.65)

SN: B40001-UP

5шт.

41

113-15-42920

SPRING, (L= 22.93)

SN: B40001-UP

5шт.

|42

12G-15-01050

PLATE ASSEMBLY

SN: B40001-UP

1шт.

42

0

PLATE

SN: B40001-UP

1шт.

43

125-15-11230

PLUG

SN: B40001-UP

1шт.
