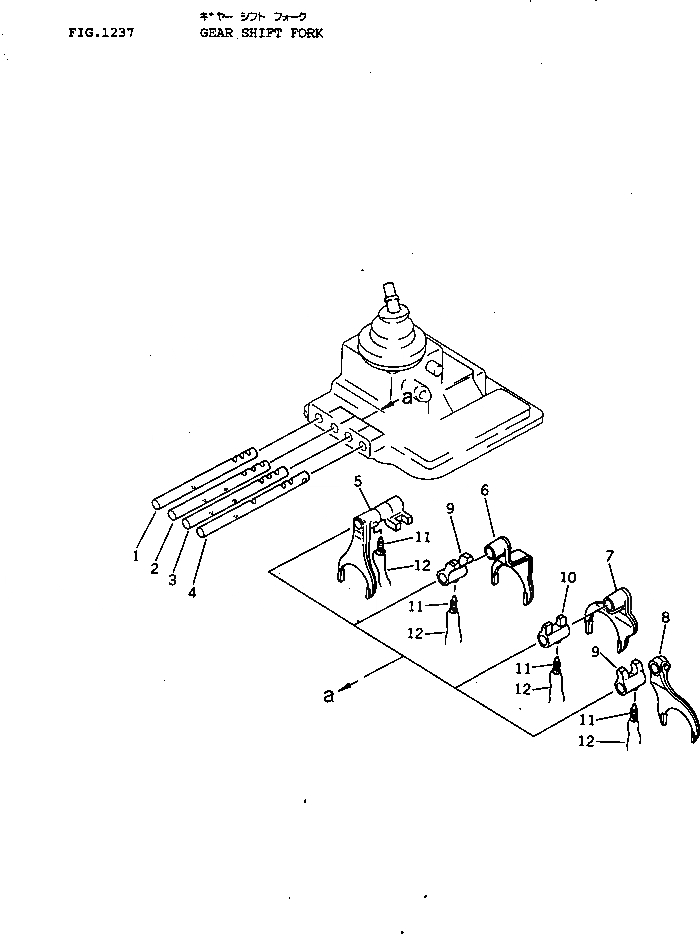

Запчасти Komatsu D40PF-3A ПЕРЕКЛЮЧ-Е ПЕРЕДАЧ ВИЛЫ ОСНОВН. МУФТА И ТРАНСМИССИЯ

|1

120-14-00010

TRANSMISSION ASS'Y

SN: 6001-UP

1шт.

|1

12F-14-00151

TRANSMISSION ASS'Y,(FOR LOW SPEED) (D40PF)

SN: 7433-UP

1шт.

|1

0

TRANSMISSION ASS'Y,(FOR LOW SPEED) (D40PF)

SN: 6909-7432

1шт.

|$$4

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.1231 TO 1237.

-1шт.

1

120-14-35411

SHAFT,F-R

SN: 6001-UP

1шт.

|1

12F-14-37540

SHAFT,F-R (FOR LOW SPEED) (D40PF)

SN: 6909-UP

1шт.

2

120-14-35421

SHAFT,1ST AND 2ND

SN: 6001-UP

1шт.

|2

12F-14-37550

SHAFT,1ST AND 2ND (FOR LOW SPEED) (D40PF)

SN: 6909-UP

1шт.

3

120-14-35431

SHAFT,3RD AND 4TH

SN: 6001-UP

1шт.

|3

12F-14-37560

SHAFT,3RD AND 4TH (FOR LOW SPEED) (D40PF)

SN: 6909-UP

1шт.

4

120-14-35441

SHAFT,5TH

SN: 6001-UP

1шт.

|4

12F-14-37570

SHAFT,5TH (FOR LOW SPEED) (D40PF)

SN: 6909-UP

1шт.

5

120-14-35313

FORK,F-R

SN: 6001-UP

1шт.

6

120-14-35344

FORK,1ST AND 2ND

SN: 6001-UP

1шт.

7

120-14-35354

FORK,3RD AND 4TH

SN: 6001-UP

1шт.

|7

12F-14-37520

FORK,3RD AND 4TH (FOR LOW SPEED) (D40PF)

SN: 6909-UP

1шт.

8

120-14-35363

FORK,5TH

SN: 6001-UP

1шт.

9

120-14-35371

BOSS

SN: 6001-UP

2шт.

10

120-14-35380

BOSS

SN: 6001-UP

1шт.

11

170-14-13222

SCREW

SN: 6001-UP

7шт.

12

04059-01625

WIRE,LOCK (KIT)

SN: 6001-UP

7шт.
