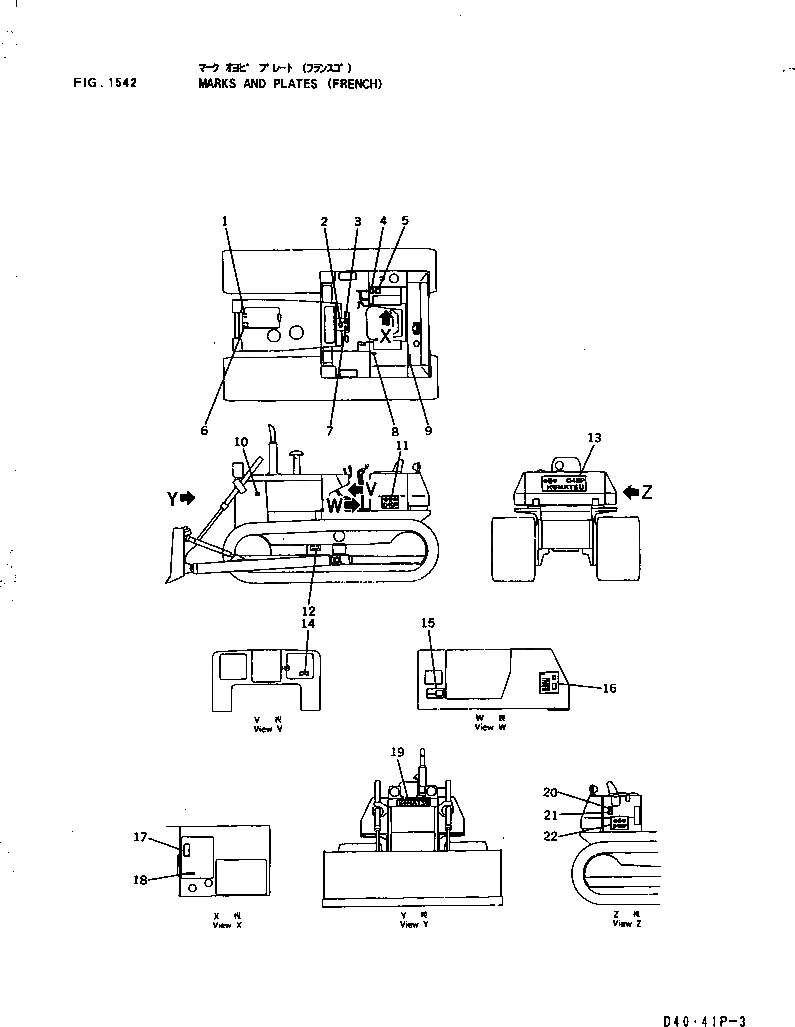

Запчасти Komatsu D40P-3 МАРКИРОВКА (ФРАНЦИЯ) ЧАСТИ КОРПУСА

1

09668-05000

PLATE, SAFETY,RADIATOR CAP

SN: 6001-UP

1шт.

2

09654-05000

PLATE, SAFETY,BEFORE AND AFTER OPERATION

SN: 6001-UP

1шт.

3

09173-05000

PLATE, SAFETY,INSPECTION AND MAINTENANCE

SN: 6001-UP

1шт.

4

09674-50071

PLATE, OPERATING,TRANSMISSION

SN: 6001-UP

1шт.

5

09670-00004

PLATE, OPERATING,WORK EQUIPMENT

SN: 6001-UP

1шт.

6

09650-52103

PLATE, INSTRUCTION,RADIATOR

SN: 6001-UP

1шт.

7

09651-05000

PLATE, SAFETY,BEFORE OPERATING

SN: 6001-UP

1шт.

8

09687-50070

PLATE, OPERATING,MAIN CLUTCH

SN: 6001-UP

1шт.

9

09652-51101

PLATE, CAUTION,FUEL TANK

SN: 6001-UP

1шт.

10

09667-05000

PLATE, SAFETY,ENGINE COVER

SN: 6001-UP

2шт.

11

09691-03404

PLATE, MARK,D40P

SN: 6001-UP

1шт.

12

09657-05011

PLATE, SAFETY,TRACK SHOE ADJUSTING

SN: 6001-UP

2шт.

13

09690-00630

PLATE, MARK,D40P

SN: 6001-UP

1шт.

14

09683-51060

PLATE, OPERATING,STARTING SWITCH

SN: 6001-UP

1шт.

15

09602-51635

PLATE, NAME,(LIMITED SUPPLY)

SN: 6001-UP

1шт.

15

04418-13060

SCREW

SN: 6001-UP

4шт.

16

120-54-36581

CHART

SN: 6001-UP

1шт.

17

120-98-31121

PLATE, OPERATING,LEVER LOCK

SN: 6001-UP

1шт.

18

09685-00004

PLATE, OPERATING,BRAKE LOCK

SN: 6001-UP

1шт.

19

120-54-31211

PLATE, MARK,KOMATSU

SN: 6001-UP

1шт.

19

175-54-41420

SCREW

SN: 6001-UP

2шт.

19

175-54-41430

WASHER

SN: 6001-UP

2шт.

20

09653-05000

PLATE, SAFETY,HYDRAULIC TANK

SN: 6001-UP

1шт.

21

120-54-36321

PLATE, CAUTION,HYDRAULIC FILTER

SN: 6001-UP

1шт.

22

09691-03414

PLATE, MARK,D41P

SN: 6001-UP

1шт.
