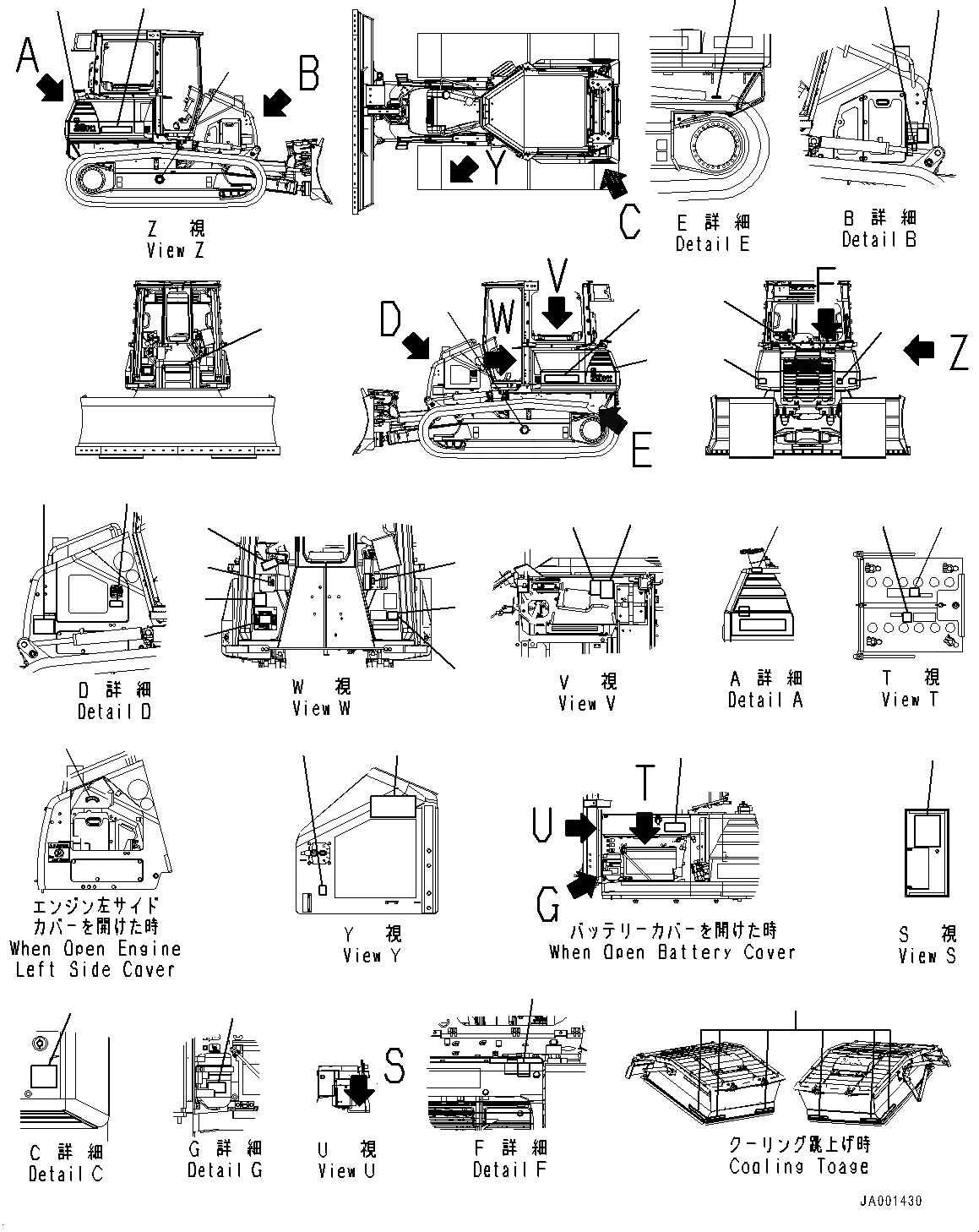

Запчасти Komatsu D39PX-22 МАРКИРОВКА (№-) МАРКИРОВКА, АНГЛ., TEXT ТИП

1

11Y-98-32111

Plate, Symbol, D39PX

SN: 3001-UP

1шт.

2

11Y-98-32121

Plate, Symbol, D39PX

SN: 3001-UP

1шт.

3

09690-P0400

Plate, Komatsu Logo

SN: 3001-UP

1шт.

4

09690-F0355

Plate, Komatsu Logo

SN: 3001-UP

1шт.

5

09690-P0500

Plate, Komatsu Logo

SN: 3001-UP

2шт.

6

09690-M0063

Plate, Komatsu Logo

SN: 3001-3813

1шт.

7

11Y-98-31130

Plate, Symbol, Ecot3

SN: 3001-UP

1шт.

8

14X-98-35181

Plate, Reflector

SN: 3001-UP

2шт.

9

11Y-98-31142

Oil Chart

SN: 3001-UP

1шт.

10

14X-98-11170

Plate, Operating, Lock

SN: 3001-UP

2шт.

11

11Y-98-31230

Plate, Symbol, Fuse Box

SN: 3001-UP

1шт.

12

600-181-1930

Plate, Service Instruction

SN: 3001-UP

1шт.

13

11Y-98-31211

Plate, Symbol

SN: 3001-UP

4шт.

14

09637-30163

Plate, Service Instruction, Air Cleaner

SN: 3001-UP

1шт.

15

09802-13000

Plate, Warning, Before Operating and Traveling

SN: 3001-UP

1шт.

16

09669-0000E

Plate, Symbol, Fuel Filler

SN: 3001-UP

1шт.

17

09642-13000

Plate, Service Instruction, Engine Coolant AF-NAC

SN: 3001-UP

1шт.

18

09601-10001

Plate, Name (Limited Supply)

SN: 3001-UP

1шт.

19

04418-13060

Screw

SN: 3001-UP

4шт.

20

11Y-98-31150

Plate, Danger, Keep Away from Machine

SN: 3001-UP

2шт.

21

09667-43000

Plate, Caution, Rotating Object

SN: 3001-UP

3шт.

22

09653-03001

Plate, Warning, High Temperature

SN: 3001-UP

1шт.

23

09668-03001

Plate, Warning, Hot Water

SN: 3001-UP

1шт.

24

09651-03001

Plate, Warning, Read Manual Before Operating

SN: 3001-UP

1шт.

25

09654-33001

Plate, Warning, Before Leaving Seat

SN: 3001-UP

1шт.

26

09963-03001

Tag, Danger, Do Not Operate

SN: 3001-UP

1шт.

27

09657-03003

Plate, Warning, Track Adjustment

SN: 3001-UP

2шт.

28

09808-03000

Plate, Warning, Battery Cables

SN: 3001-UP

1шт.

29

09664-30011

Plate, Danger, Battery

SN: 3001-UP

2шт.
