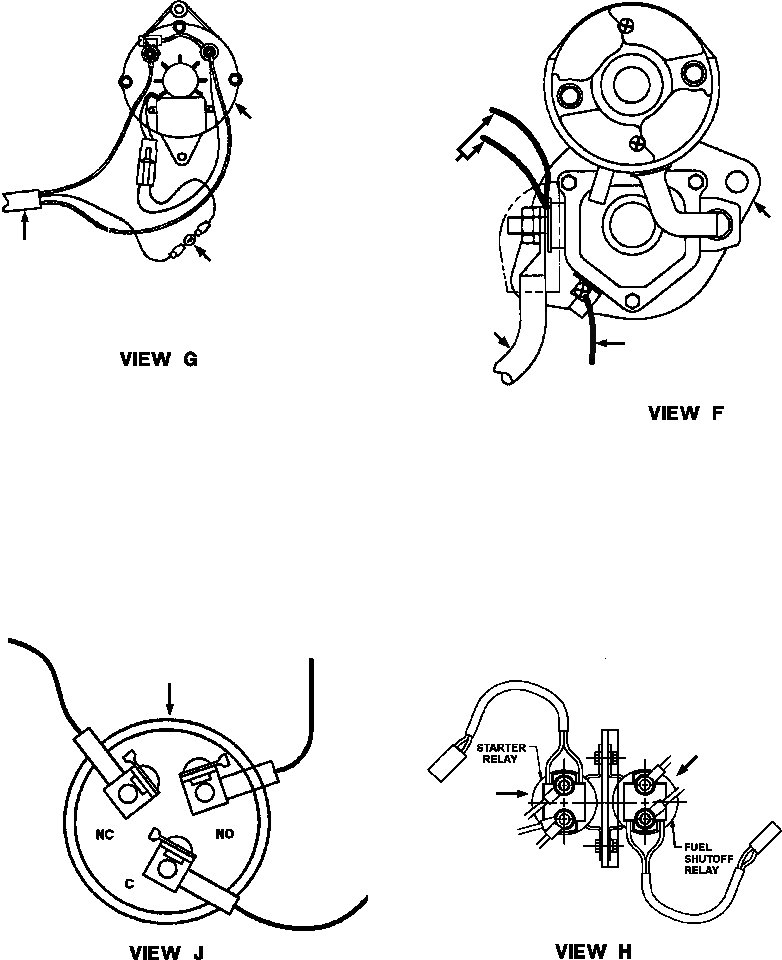

Запчасти Komatsu D39E-1A FIG. E-A ЭЛЕКТР. ЭЛЕКТРОПРОВОДКА - С СИСТЕМОЙ ROPS ЭЛЕКТРИКА

1

1270 790 H1

CABLE, STARTER TO BATTERY POS

SN: P096338-UP

1шт.

2

1312 866 H91

HARNESS, MAIN ELECTRICAL

SN: P096338-UP

1шт.

3

1236 341 H1

DIODE

SN: P096338-UP

1шт.

4

ALTERNATOR (SEE FIG. A6109-A1A1)

SN: P096338-UP

1шт.

|$4

30 003 R1

BOLT, HEX - M8x25

SN: P096338-UP

1шт.

|$5

120 391

WASHER, FLAT - #10

SN: P096338-UP

2шт.

5

MOTOR, STARTING (SEE FIG. A6112-A1A1)

SN: P096338-UP

1шт.

|$7

31 148 R1

BOLT, HEX - M10x30

SN: P096338-UP

2шт.

|$8

1312 025 H91

SWITCHES, FUSES AND RELAYS

SN: P096338-UP

1шт.

|$9

1134 721 C1

KEY, DISCONNECT SWITCH

SN: P096338-UP

2шт.

6

1312 854 H91

RELAY, ASSEMBLY

SN: P096338-UP

2шт.

|$11

22 470 R1

BOLT, HEX - 1/4NCx3/4

SN: P096338-UP

2шт.

|$12

120 392

WASHER, FLAT - 1/4

SN: P096338-UP

2шт.

|$13

120 380

WASHER, LOCK - 1/4

SN: P096338-UP

2шт.

|$14

120 375

NUT, HEX - 1/4NC

SN: P096338-UP

2шт.

|$15

933 833 R1

WASHER, LOCK - M6TERMINAL

SN: P096338-UP

4шт.

|$16

30 281 R1

NUT, HEX - M6TERMINAL

SN: P096338-UP

4шт.

7

1311 302 H1

SWITCH, HOURMETER

SN: P096338-UP

1шт.

|$18

417-01-A1630

SEAL, O-RING

SN: P096338-UP

1шт.

|$19

-1шт.

|$20

F1 PART NUMBER IS A NONSERVICE PART AND IS LISTED FOR REFERENCE ONLY. ORDER INDIVIDUAL PIECE PARTS.

-1шт.

|$21

-1шт.
