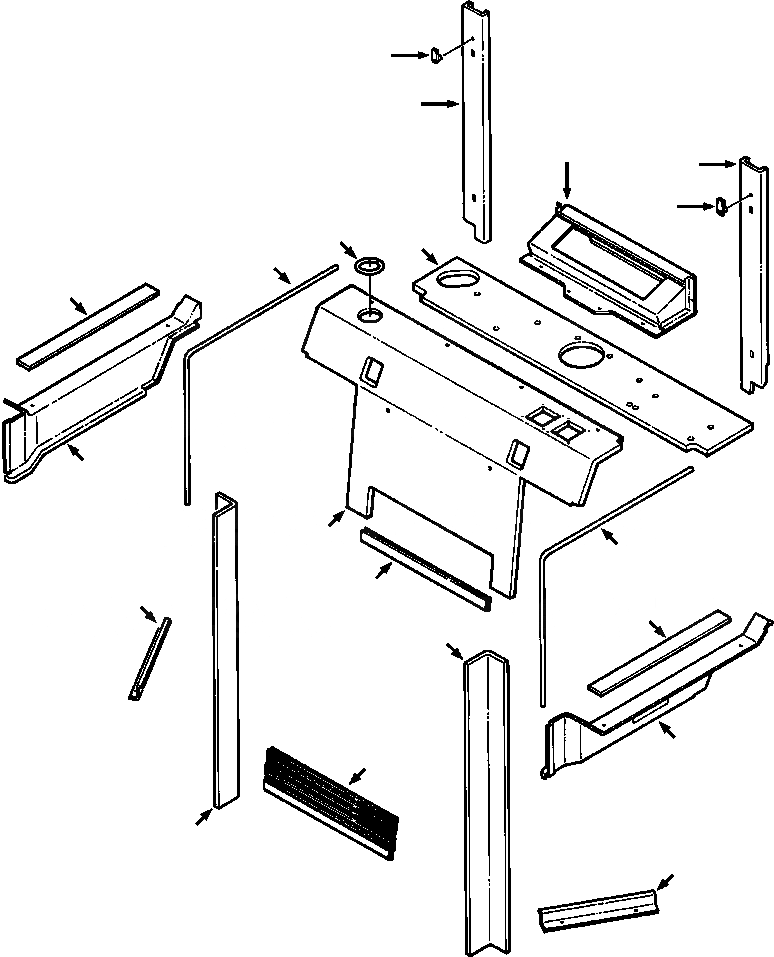

Запчасти Komatsu D39E-1A FIG. K-A КАБИНА ROPS - БОКОВ. КРЫШКАS И INSULATION КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

|$0

CAB ASSEMBLY, COMPLETE(SEE FIG. K0210-03A0)

SN: P096338-UP

1шт.

|$1

1304 393 H91

COVER ASSEMBLY, RIGHT REAR POST

SN: P096338-UP

1шт.

1

NSS

COVER, RIGHT REAR

SN: P096338-UP

1шт.

2

1298 836 H1

HOOK, COAT

SN: P096338-UP

1шт.

|$4

30 577 R1

SCREW, PAN HEAD - M6x25

SN: P096338-UP

1шт.

|$5

30 325 R1

WASHER, FLAT - M6

SN: P096338-UP

2шт.

|$6

30 281 R1

NUT, HEX - M6

SN: P096338-UP

1шт.

|$7

31 006 R1

SCREW, PAN HEAD - M6x16

SN: P096338-UP

2шт.

|$8

1309 381 H1

WASHER, CUP

SN: P096338-UP

2шт.

|$9

1304 394 H91

COVER ASSY, LEFT REAR POST

SN: P096338-UP

1шт.

3

NSS

COVER, LEFT REAR

SN: P096338-UP

1шт.

4

1298 836 H1

HOOK, COAT

SN: P096338-UP

1шт.

|$12

30 577 R1

SCREW, PAN HEAD - M6x25

SN: P096338-UP

1шт.

|$13

30 325 R1

WASHER, FLAT - M6

SN: P096338-UP

2шт.

|$14

30 281 R1

NUT, HEX - M6

SN: P096338-UP

1шт.

|$15

31 006 R1

SCREW, PAN HEAD - M6x16

SN: P096338-UP

2шт.

|$16

1309 381 H1

WASHER, CUP

SN: P096338-UP

2шт.

|$17

1304 442 H91

COVER ASSEMBLY, REAR LOWER

SN: P096338-UP

1шт.

5

NSS

COVER, REAR

SN: P096338-UP

1шт.

6

TRIM, EDGE - 210MM LONG

SN: P096338-UP

1шт.

7

TRIM, EDGE - 500MM LONG

SN: P096338-UP

1шт.

|$21

31 006 R1

SCREW, PAN HEAD - M6x16

SN: P096338-UP

8шт.

|$22

1309 381 H1

WASHER, CUP

SN: P096338-UP

8шт.

8

FILTER, AIR (SEE FIG. K0210-03A3)

SN: P096338-UP

1шт.

|$24

30 191 R1

BOLT, HEX - .

SN: P096338-UP

6шт.

|$25

30 210 R1

WASHER, FLAT - .

SN: P096338-UP

6шт.

9

1304 445 H1

INSULATION, SIDE POST

SN: P096338-UP

2шт.

10

1304 420 H91

COVER, FRONT

SN: P096338-UP

1шт.

|$28

31 006 R1

SCREW, PAN HEAD - M6x16

SN: P096338-UP

2шт.

|$29

1309 381 H1

WASHER, CUP

SN: P096338-UP

2шт.

11

1300 603 H1

GUARD, TRIP

SN: P096338-UP

2шт.

|$31

931 827 R1

BOLT, HEX - M6x16

SN: P096338-UP

4шт.

|$32

30 325 R1

WASHER, FLAT - M6

SN: P096338-UP

4шт.

12

1304 448 H1

COVER, RIGHT

SN: P096338-UP

1шт.

|$34

31 006 R1

SCREW, PAN HEAD - M6x16

SN: P096338-UP

2шт.

|$35

1309 381 H1

WASHER, CUP

SN: P096338-UP

2шт.

13

1304 450 H1

GASKET, COVER

SN: P096338-UP

2шт.

14

1304 449 H1

COVER, LEFT

SN: P096338-UP

1шт.

|$38

31 006 R1

SCREW, PAN HEAD - M6x16

SN: P096338-UP

2шт.

|$39

1309 381 H1

WASHER, CUP

SN: P096338-UP

2шт.

15

1304 403 H1

GASKET, REAR

SN: P096338-UP

1шт.

16

1304 404 H1

SEAL, EDGE TRIM

SN: P096338-UP

2шт.

|$42

1262 660 H1

TRIM, BULK EDGE

SN: P096338-UP

-2шт.

|$43

-1шт.

|$44

F1 - CUT REQUIRED LENGTH FROM BULK TRIM 1262 660 H1.

-1шт.

|$45

-1шт.
