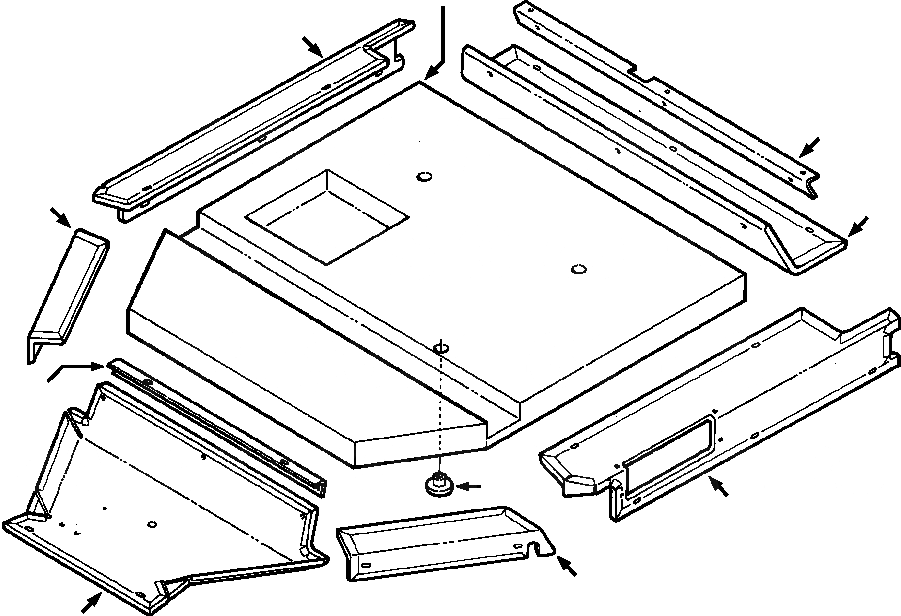

Запчасти Komatsu D39E-1A FIG. K-A КАБИНА ROPS - HEADLINERS И INSULATION КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

|$0

CAB ASSEMBLY, COMPLETE(SEE FIG. K0210-03A0)

SN: P096338-UP

1шт.

1

1304 416 H91

COVER, REAR UPPER

SN: P096338-UP

1шт.

|$2

31 006 R1

SCREW, PAN HEAD - M6x16

SN: P096338-UP

6шт.

|$3

1309 381 H1

WASHER, CUP

SN: P096338-UP

6шт.

2

1299 662 H91

BRACKET, REAR

SN: P096338-UP

1шт.

|$5

931 827 R1

BOLT, HEX - M6x16

SN: P096338-UP

3шт.

|$6

30 325 R1

WASHER, FLAT - M6

SN: P096338-UP

3шт.

3

1304 414 H91

COVER, LEFT UPPER REAR

SN: P096338-UP

1шт.

|$8

31 006 R1

SCREW, PAN HEAD - M6x16

SN: P096338-UP

5шт.

|$9

1309 381 H1

WASHER, CUP

SN: P096338-UP

5шт.

4

1304 415 H91

COVER, RIGHT UPPER REAR

SN: P096338-UP

1шт.

|$11

31 006 R1

SCREW, PAN HEAD - M6x16

SN: P096338-UP

5шт.

|$12

1309 381 H1

WASHER, CUP

SN: P096338-UP

5шт.

5

1304 418 H91

GUARD, LEFT FRONT

SN: P096338-UP

1шт.

|$14

31 006 R1

SCREW, PAN HEAD - M6x16

SN: P096338-UP

2шт.

|$15

1309 381 H1

WASHER, CUP

SN: P096338-UP

2шт.

6

1304 419 H91

GUARD, RIGHT FRONT

SN: P096338-UP

1шт.

|$17

31 006 R1

SCREW, PAN HEAD - M6x16

SN: P096338-UP

2шт.

|$18

1309 381 H1

WASHER, CUP

SN: P096338-UP

2шт.

7

1299 663 H91

BRACKET, FRONT

SN: P096338-UP

1шт.

|$20

931 827 R1

BOLT, HEX - M6x16

SN: P096338-UP

2шт.

|$21

30 325 R1

WASHER, FLAT - M6

SN: P096338-UP

2шт.

8

1304 444 H1

HEADLINER

SN: P096338-UP

1шт.

9

1304 487 H1

FASTENER, LINER

SN: P096338-UP

3шт.

10

1304 417 H91

COVER, FRONT CENTER

SN: P096338-UP

1шт.

|$25

31 006 R1

SCREW, PAN HEAD - M6x16

SN: P096338-UP

3шт.

|$26

30 577 R1

SCREW, PAN HEAD - M6x25

SN: P096338-UP

2шт.

|$27

1309 381 H1

WASHER, CUP

SN: P096338-UP

5шт.
