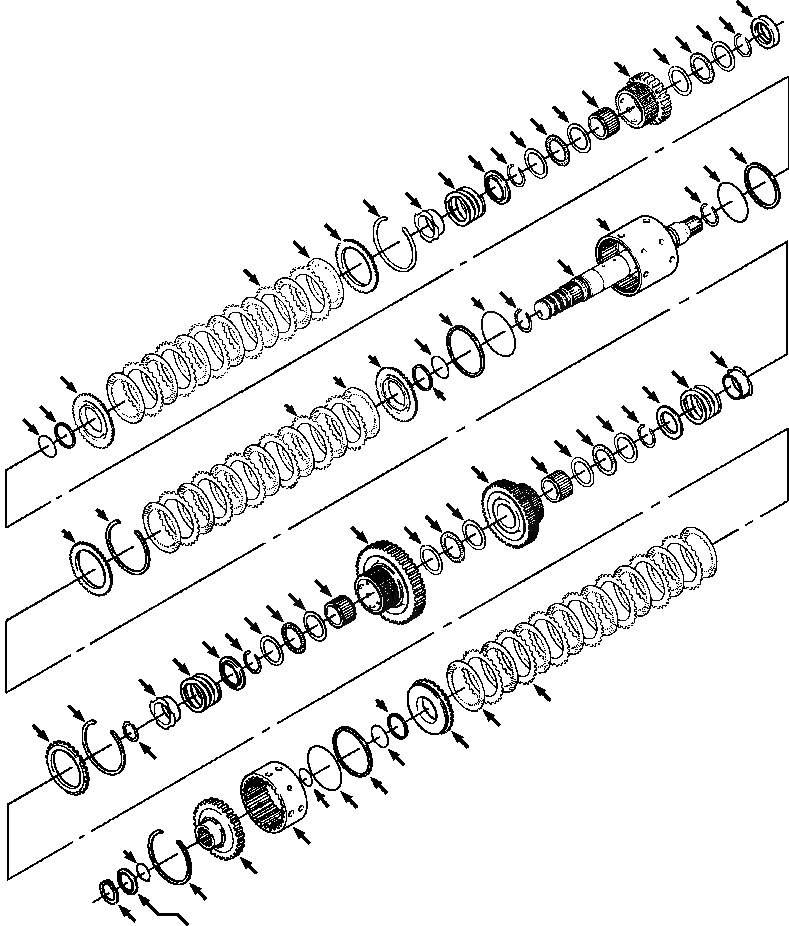

Запчасти Komatsu D39E-1A FIG. F-A ТРАНСМИССИЯ - RANGE (ВЫХОД) ВАЛ СИЛОВАЯ ПЕРЕДАЧА И КОНЕЧНАЯ ПЕРЕДАЧА

|$0

716 834 C94

SHAFT ASSEMBLY, RANGE

SN: P096338-UP

1шт.

1

709 784 C91

SHAFT ASSEMBLY, OUTPUT

SN: P096338-UP

1шт.

|$2

21 277 R1

PIN, DOWEL - 7/16x1/2

SN: P096338-UP

3шт.

|$3

28 265 R1

PIN, ROLL - 1/8x3/8

SN: P096338-UP

3шт.

|$4

212 012 H1

PIN, ROLL - 5/64x3/8

SN: P096338-UP

1шт.

2

709 630 C1

SPACER, BEARING

SN: P096338-UP

1шт.

3

632 341 C1

RING, RETAINING

SN: P096338-UP

4шт.

4

659 907 C1

RACE, THRUST

SN: P096338-UP

10шт.

5

374 011 R91

BEARING, THRUST

SN: P096338-UP

5шт.

6

610 766 C91

BEARING, NEEDLE

SN: P096338-UP

2шт.

7

709 793 C1

GEAR AND HUB, 3RD SPEED

SN: P096338-UP

1шт.

8

1212 820 C1

RETAINER, SPRING

SN: P096338-UP

3шт.

9

1212 816 C1

SPRING, RETURN

SN: P096338-UP

3шт.

10

709 609 C1

SLEEVE, LUBE

SN: P096338-UP

3шт.

11

741 777 C3

KIT, HUB AND DRUM

SN: P096338-UP

1шт.

12

366 694 C1

RING, RETAINING

SN: P096338-UP

2шт.

13

709 822 C1

PISTON, 3RD SPEED

SN: P096338-UP

1шт.

14

659 910 C1

SEAL, PISTON

SN: P096338-UP

3шт.

15

659 913 C1

RING, SEAL

SN: P096338-UP

3шт.

16

659 720 C1

SEAL, PISTON

SN: P096338-UP

1шт.

17

659 726 C1

RING, SEAL

SN: P096338-UP

1шт.

18

709 777 C2

DISC, FRICTION

SN: P096338-UP

22шт.

19

716 719 C1

PLATE, SEPARATOR

SN: P096338-UP

19шт.

20

1286 827 H1

PLATE, SUPPORT

SN: P096338-UP

3шт.

21

1228 459 H2

RING, RETAINING - CAPTURED

SN: P096338-UP

3шт.

22

709 837 C1

PISTON, 1ST OR 2ND SPEED

SN: P096338-UP

2шт.

23

709 631 C1

SEAL, PISTON

SN: P096338-UP

2шт.

24

709 632 C1

RING, SEAL

SN: P096338-UP

2шт.

25

709 792 C1

GEAR AND HUB, 2ND SPEED

SN: P096338-UP

1шт.

26

659 906 C91

BEARING, NEEDLE

SN: P096338-UP

1шт.

27

709 791 C1

GEAR AND HUB, 1ST SPEED

SN: P096338-UP

1шт.

28

734 369 C1

RING, RETAINING

SN: P096338-UP

1шт.

29

21 924 R1

RING, SEAL

SN: P096338-UP

2шт.

30

1216 245 H1

HOUSING, 1ST PISTON

SN: P096338-UP

1шт.

31

716 835 C1

SPACER, RING

SN: P096338-UP

1шт.

32

258 400 C1

RING, RETAINING

SN: P096338-UP

1шт.

33

716 837 C3

DRUM, 1ST SPEED

SN: P096338-UP

1шт.

|$37

-1шт.

|$38

F1 - PART OF TRANSMISSION SERVICE KIT 741 453 C93.

-1шт.

|$39

-1шт.
