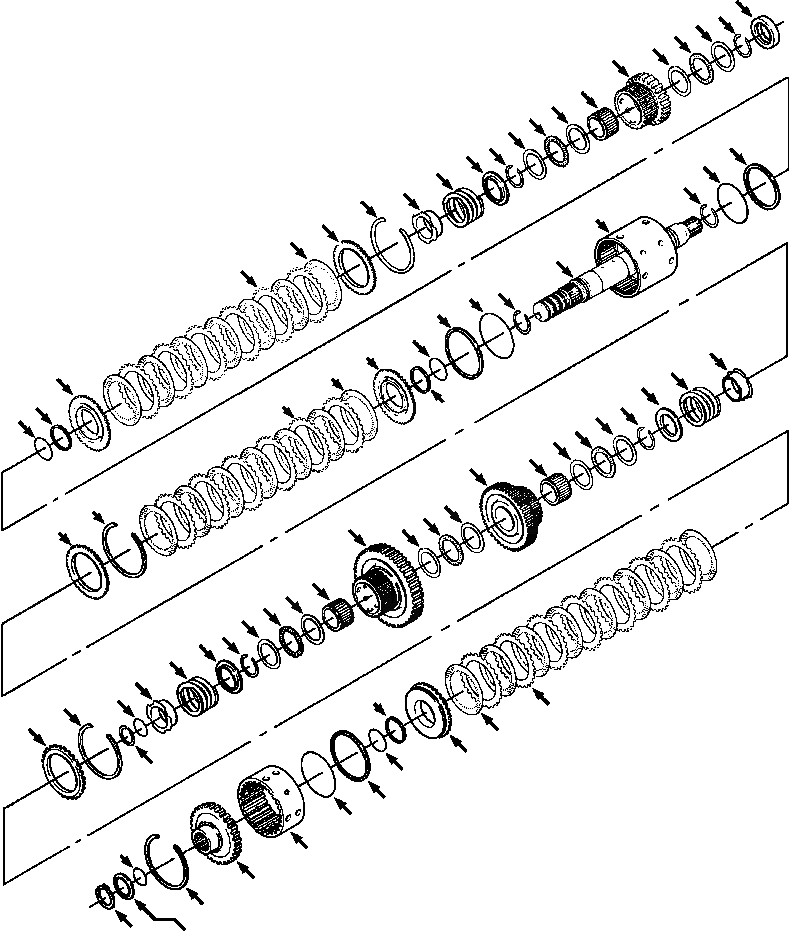

Запчасти Komatsu D39E-1 ТРАНСМИССИЯ RANGE (ВЫХОД) ВАЛ ПРИВОД TRAIN

|$0

716 834 C94

SHAFT ASSY, RANGE

1шт.

1

709 784 C91

SHAFT ASSY, OUTPUT

1шт.

|$2

21 277 R1

PIN, DOWEL - 7/16x1/2

3шт.

|$3

28 265 R1

PIN, ROLL - 1/8x3/8

3шт.

|$4

212 012 H1

PIN, ROLL - 5/64x3/8

1шт.

2

709 630 C1

SPACER, BEARING

1шт.

3

632 341 C1

RING, RETAINING

4шт.

4

659 907 C1

RACE, THRUST

10шт.

5

374 011 R91

BEARING, THRUST

5шт.

6

610 766 C91

BEARING, NEEDLE

2шт.

7

709 793 C1

GEAR AND HUB, 3RD SPEED

1шт.

8

1212 820 C1

RETAINER, SPRING

3шт.

9

1212 816 C1

SPRING, RETURN

3шт.

10

709 609 C1

SLEEVE, LUBE

3шт.

11

741 777 C3

KIT, HUB AND DRUM

1шт.

12

366 694 C1

RING, RETAINING

2шт.

13

709 822 C1

PISTON, 3RD SPEED

1шт.

14

659 910 C1

SEAL, PISTON

3шт.

15

659 913 C1

RING, SEAL

3шт.

16

659 720 C1

SEAL, PISTON

1шт.

17

659 726 C1

RING, SEAL

1шт.

18

709 777 C2

DISC, FRICTION

22шт.

19

716 719 C1

PLATE, SEPARATOR

19шт.

20

1286 827 H1

PLATE, SUPPORT

3шт.

21

1228 459 H2

RING, RETAINING - CAPTURED

3шт.

22

709 837 C1

PISTON, 1ST OR 2ND SPEED

2шт.

23

709 631 C1

SEAL, PISTON

2шт.

24

709 632 C1

RING, SEAL

2шт.

25

709 792 C1

GEAR AND HUB, 2ND SPEED

1шт.

26

659 906 C91

BEARING, NEEDLE

1шт.

27

709 791 C1

GEAR AND HUB, 1ST SPEED

1шт.

28

734 369 C1

RING, RETAINING

1шт.

29

21 924 R1

RING, SEAL

2шт.

30

1216 245 H1

HOUSING, 1ST PISTON

1шт.

31

716 835 C1

SPACER, RING

1шт.

32

258 400 C1

RING, RETAINING

1шт.

33

716 837 C3

DRUM, 1ST SPEED

1шт.

|$$38

-1шт.

|$38

F1 - PART OF TRANSMISSION SERVICE KIT 741 453 C93.

-1шт.

|$$40

-1шт.
