Запчасти Komatsu D39E-1 ОТВАЛ ANGLE ИЛИ РЫХЛИТЕЛЬ SECTION ГИДРАВЛS

|$0

1299 225 H91

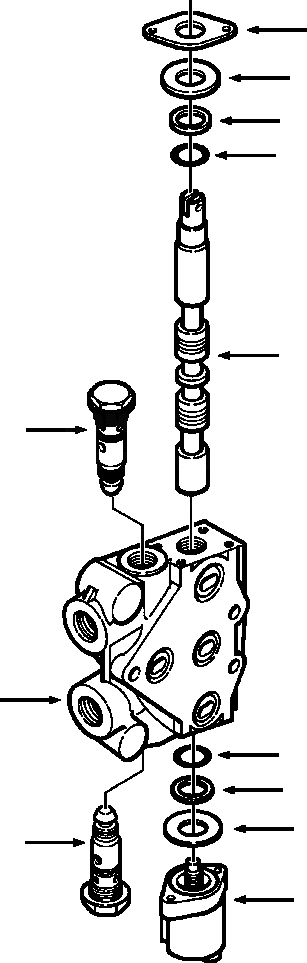

SECTION ASSY, BLADE ANGLE OR RIPPER

1шт.

1

POSITIONER, SPOOL (SEE PG 10-052)

-29шт.

2

VALVE, ANTI CAVITATION (SEE PG 10-056)

-29шт.

|$3

1299 238 H91

SEAL ASSY, SPOOL

-54шт.

3

850 880 C1

RETAINER, SEAL

1шт.

|$5

1299 239 H1

KIT, SEAL

1шт.

4

NSS

RING, BACK UP

1шт.

5

RING, SEAL

1шт.

|$8

1299 240 H1

KIT, SEAL PLATE

1шт.

6

NSS

PLATE, SEAL

1шт.

|$10

NSS

BOLT, HEX - 1/4NCx1/2

2шт.

7

NSS

SPOOL, SECTION

1шт.

8

NSS

HOUSING, SECTION

1шт.

|$$14

-1шт.

|$14

F1 - ONE SECTION USED WITH THREE SPOOL OR TWO SECTIONS USED WITH

-1шт.

|$15

FOUR SPOOL VALVE.

-1шт.

|$$17

-1шт.

|$17

F2 - PART NUMBER IS A NON-SERVICE PART AND IS LISTED FOR REFERENCE ONLY.

-1шт.

|$$19

-1шт.

|$$20

-1шт.

|$20

F3 - FOR SHIPPING PURPOSES ONLY. USE FOR SERVICING SECTION.

-1шт.

|$$22

-1шт.
